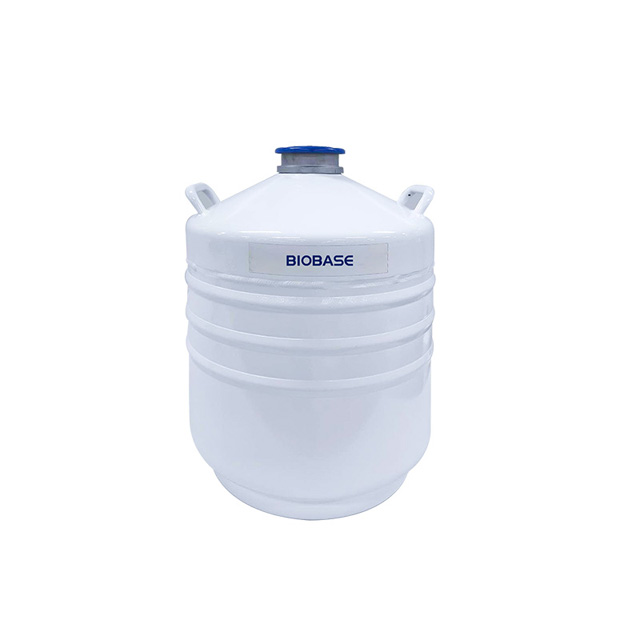

Biobase
Features:
1. High vacuum, multi-layer insulation design
2. Low static evaporation rate
3. Made ofhigh-quality alloy aluminum
4. Insulation material bracket, Iower evaporation, safe and reliable transportation
Technical Parameters:
| Model | Unit | YDS-20B | YDS-30B | YDS-35B-80 | YDS-35B-125 | YDS-35B | YDS-50B-125 | ||||||||||
Capacity | L | 20.1 | 31.5 | 35.5 | 35.5 | 35.5 | 50 | ||||||||||
Empty Weight | kg | 12.42 | 15.6 | 17.9 | 18.3 | 17.1 | 21 | ||||||||||
Caliber | mm | 50±1 | 50±1 | 80±1 | 125±1 | 50±1 | 125±1 | ||||||||||
Outer Diameter | mm | 409±2 | 455±2 | 455 | 455 | 455 | 508 | ||||||||||
Height | mm | 675 | 665 | 725 | 720 | 725 | 818±4 | ||||||||||
Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.41 | ≤0.20 | ≤0.45 | ||||||||||
Static Holding Time | d | ≥101 | ≥159 | ≥119 | ≥86 | ≥179 | ≥110 | ||||||||||
Canister Specification | mm | NO | NO | NO | NO | NO | NO | ||||||||||
Canister No. (Standard) | pc | NO | NO | NO | NO | NO | NO | ||||||||||
Canvas Protective Sleeve | pc | NO | NO | NO | NO | NO | NO | ||||||||||
Lockable Lid | set | NO | NO | NO | NO | NO | NO | ||||||||||
Packing Size | mm | 460*460*750 | 510*510*810 | 575*575*860 | |||||||||||||
Gross Weight | kg | 14.1 | 17.6 | 19.9 | 20.3 | 19.1 | 24.8 | ||||||||||

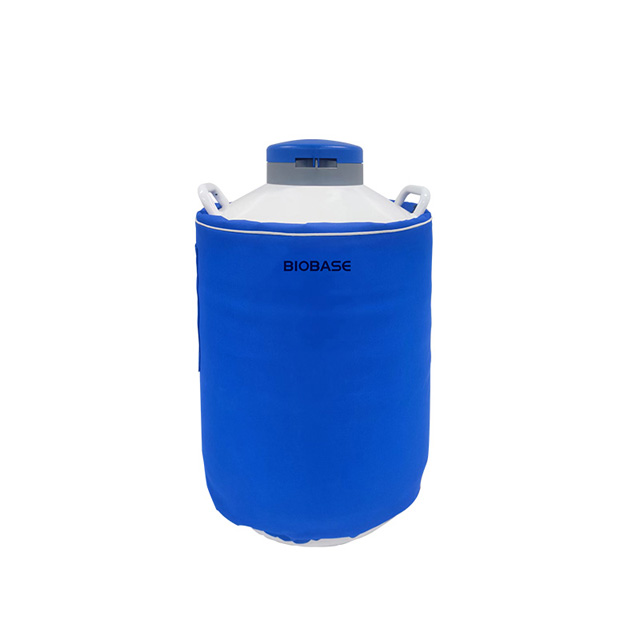

| Model | Unit | YDS-20B-LS(6) | YDS-20B-S(6) | YDS-20B | YDS-30B-LS(6) | YDS-30B-S(6) | YDS-30B | YDS-35B-80LS(6) | YDS-35B-80S(6) | YDS-35B-80 | YDS-35B-125-FS | YDS-35B-125LS(6) | YDS-35B-125S(6) | YDS-35B-125 | YDS-35B-LS(6) | YDS-35B-S(6) | YDS-35B | YDS-50B-125-FS | YDS-50B-125LS(6) | YDS-50B-125S(6) | YDS-50B-125 |
Capacity | L | 20.1 | 20.1 | 20.1 | 31.5 | 31.5 | 31.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 50 | 50 | 50 | 50 |
Empty Weight | kg | 13.78 | 13.22 | 12.42 | 17.9 | 17.3 | 15.6 | 20.3 | 19.1 | 17.9 | 25.4 | 22.52 | 20.61 | 18.3 | 18.45 | 17.85 | 17.1 | 28.5 | 23.7 | 22 | 21 |
Caliber | mm | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 | 80±1 | 80±1 | 80±1 | 125±1 | 125±1 | 125±1 | 125±1 | 50±1 | 50±1 | 50±1 | 125±1 | 125±1 | 125±1 | 125±1 |
Outer Diameter | mm | 409±2 | 409±2 | 409±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 508±2 | 508±2 | 508±2 | 508±2 |
Height | mm | 680±4 | 680±4 | 675±4 | 670±4 | 670±4 | 665±4 | 735±4 | 735±4 | 725±4 | 735±4 | 735±4 | 735±4 | 720±4 | 735±4 | 735±4 | 725±4 | 818±4 | 818±4 | 818±4 | 818±4 |
Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.41 | ≤0.41 | ≤0.41 | ≤0.41 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 |
Static Holding Time | d | ≥101 | ≥101 | ≥101 | ≥159 | ≥159 | ≥159 | ≥119 | ≥119 | ≥119 | ≥86 | ≥86 | ≥86 | ≥86 | ≥179 | ≥179 | ≥179 | ≥110 | ≥110 | ≥110 | ≥110 |
Canister Specification | mm | Round: Diameterφ38±1; Height276±1 | Round: Diameterφ38±1; Height 120±1 | NO | Round: Diameterφ38±1; Height 276±1 | Round: Diameterφ38±1; Height 120±1 | NO | Round: Diameterφ60±1; Height 276±1 | Round: Diameterφ60±1; Height 120±1 | NO | Square: 82*84mm.With 5*5 2ml cryobox, 750pcs cryogetic vials | Round: Diameterφ97±1; Height 276±1 | Round: Diameterφ97±1; Height 120±1 | NO | Round: Diameterφ38; Height 276 | Round: Diameterφ38; Height 120±1 | NO | Square: 82*84mm.With 5*5 2ml cryobox, 900pcs cryogetic vials | Round: Diameterφ97±1; Height 276±1 | Round: Diameterφ97±1; Height 120±1 | NO |
Canister No.(Standard) | pc | 6 | 6 | NO | 6 | 6 | NO | 6 | 6 | NO | 6 | 6 | 6 | NO | 6 | 6 | NO | 6 | 6 | 6 | NO |
Canvas Protective Sleeve | pc | 1 | 1 | NO | 1 | 1 | NO | 1 | 1 | NO | 1 | 1 | 1 | NO | 1 | 1 | NO | NO | NO | NO | NO |
Lockable Lid | set | Yes | Yes | NO | Yes | Yes | NO | Yes | Yes | NO | Yes | Yes | Yes | NO | Yes | Yes | NO | Yes | Yes | Yes | NO |
Packing Size | mm | 457*457*720 | 502*502*795 | 550*550*830 | |||||||||||||||||
Gross Weight | kg | 15.7 | 15 | 14.1 | 21 | 19.3 | 17.6 | 22.3 | 21.8 | 19.9 | 28.1 | 25.1 | 22.7 | 20.3 | 20.6 | 19.9 | 19.1 | 32.3 | 27.5 | 27.3 | 24.8 |
Features:
1. High vacuum, multi-layer insulation design
2. Low static evaporation rate
3. Made ofhigh-quality alloy aluminum
4. Insulation material bracket, Iower evaporation, safe and reliable transportation
Technical Parameters:
| Model | Unit | YDS-20B | YDS-30B | YDS-35B-80 | YDS-35B-125 | YDS-35B | YDS-50B-125 | ||||||||||
Capacity | L | 20.1 | 31.5 | 35.5 | 35.5 | 35.5 | 50 | ||||||||||
Empty Weight | kg | 12.42 | 15.6 | 17.9 | 18.3 | 17.1 | 21 | ||||||||||
Caliber | mm | 50±1 | 50±1 | 80±1 | 125±1 | 50±1 | 125±1 | ||||||||||
Outer Diameter | mm | 409±2 | 455±2 | 455 | 455 | 455 | 508 | ||||||||||
Height | mm | 675 | 665 | 725 | 720 | 725 | 818±4 | ||||||||||
Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.41 | ≤0.20 | ≤0.45 | ||||||||||
Static Holding Time | d | ≥101 | ≥159 | ≥119 | ≥86 | ≥179 | ≥110 | ||||||||||
Canister Specification | mm | NO | NO | NO | NO | NO | NO | ||||||||||
Canister No. (Standard) | pc | NO | NO | NO | NO | NO | NO | ||||||||||
Canvas Protective Sleeve | pc | NO | NO | NO | NO | NO | NO | ||||||||||
Lockable Lid | set | NO | NO | NO | NO | NO | NO | ||||||||||
Packing Size | mm | 460*460*750 | 510*510*810 | 575*575*860 | |||||||||||||
Gross Weight | kg | 14.1 | 17.6 | 19.9 | 20.3 | 19.1 | 24.8 | ||||||||||
| Model | Unit | YDS-20B-LS(6) | YDS-20B-S(6) | YDS-20B | YDS-30B-LS(6) | YDS-30B-S(6) | YDS-30B | YDS-35B-80LS(6) | YDS-35B-80S(6) | YDS-35B-80 | YDS-35B-125-FS | YDS-35B-125LS(6) | YDS-35B-125S(6) | YDS-35B-125 | YDS-35B-LS(6) | YDS-35B-S(6) | YDS-35B | YDS-50B-125-FS | YDS-50B-125LS(6) | YDS-50B-125S(6) | YDS-50B-125 |
Capacity | L | 20.1 | 20.1 | 20.1 | 31.5 | 31.5 | 31.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 50 | 50 | 50 | 50 |
Empty Weight | kg | 13.78 | 13.22 | 12.42 | 17.9 | 17.3 | 15.6 | 20.3 | 19.1 | 17.9 | 25.4 | 22.52 | 20.61 | 18.3 | 18.45 | 17.85 | 17.1 | 28.5 | 23.7 | 22 | 21 |
Caliber | mm | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 | 80±1 | 80±1 | 80±1 | 125±1 | 125±1 | 125±1 | 125±1 | 50±1 | 50±1 | 50±1 | 125±1 | 125±1 | 125±1 | 125±1 |
Outer Diameter | mm | 409±2 | 409±2 | 409±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 455±2 | 508±2 | 508±2 | 508±2 | 508±2 |
Height | mm | 680±4 | 680±4 | 675±4 | 670±4 | 670±4 | 665±4 | 735±4 | 735±4 | 725±4 | 735±4 | 735±4 | 735±4 | 720±4 | 735±4 | 735±4 | 725±4 | 818±4 | 818±4 | 818±4 | 818±4 |
Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.41 | ≤0.41 | ≤0.41 | ≤0.41 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 |
Static Holding Time | d | ≥101 | ≥101 | ≥101 | ≥159 | ≥159 | ≥159 | ≥119 | ≥119 | ≥119 | ≥86 | ≥86 | ≥86 | ≥86 | ≥179 | ≥179 | ≥179 | ≥110 | ≥110 | ≥110 | ≥110 |
Canister Specification | mm | Round: Diameterφ38±1; Height276±1 | Round: Diameterφ38±1; Height 120±1 | NO | Round: Diameterφ38±1; Height 276±1 | Round: Diameterφ38±1; Height 120±1 | NO | Round: Diameterφ60±1; Height 276±1 | Round: Diameterφ60±1; Height 120±1 | NO | Square: 82*84mm.With 5*5 2ml cryobox, 750pcs cryogetic vials | Round: Diameterφ97±1; Height 276±1 | Round: Diameterφ97±1; Height 120±1 | NO | Round: Diameterφ38; Height 276 | Round: Diameterφ38; Height 120±1 | NO | Square: 82*84mm.With 5*5 2ml cryobox, 900pcs cryogetic vials | Round: Diameterφ97±1; Height 276±1 | Round: Diameterφ97±1; Height 120±1 | NO |
Canister No.(Standard) | pc | 6 | 6 | NO | 6 | 6 | NO | 6 | 6 | NO | 6 | 6 | 6 | NO | 6 | 6 | NO | 6 | 6 | 6 | NO |
Canvas Protective Sleeve | pc | 1 | 1 | NO | 1 | 1 | NO | 1 | 1 | NO | 1 | 1 | 1 | NO | 1 | 1 | NO | NO | NO | NO | NO |
Lockable Lid | set | Yes | Yes | NO | Yes | Yes | NO | Yes | Yes | NO | Yes | Yes | Yes | NO | Yes | Yes | NO | Yes | Yes | Yes | NO |
Packing Size | mm | 457*457*720 | 502*502*795 | 550*550*830 | |||||||||||||||||
Gross Weight | kg | 15.7 | 15 | 14.1 | 21 | 19.3 | 17.6 | 22.3 | 21.8 | 19.9 | 28.1 | 25.1 | 22.7 | 20.3 | 20.6 | 19.9 | 19.1 | 32.3 | 27.5 | 27.3 | 24.8 |
