Introduction:
Biological safety cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment and biological products, especially in the occasion that operator need to adopt protective measure, such us medical and health, medical research. Our equipment provides a safety working environment which don't have bacterial and dust in the process of bacterial culture.
| Quantity: | |
|---|---|
11231 BBC 86
BIOBASE
Features:
1. Large LCD display, all information displayed.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
Technical Parameters:
Model | 11231 BBC 86 |
External Size(W*D*H) | 700*640*1230mm(without base stand) |
Internal Size(W*D*H) | 600*500*530mm |
Tested Opening | Safety height 200mm(8") |
Max Opening | 370mm(15") |
Inflow Velocity | 0.53±0.025m/s |
Down Flow Velocity | 0.33±0.025m/s |
ULPA Filter | Two, 99.9995% efficiency at 0.12μm. filter life indicator |
Front Window | Double-sided laminated glass |
Noise | ≤67dB |

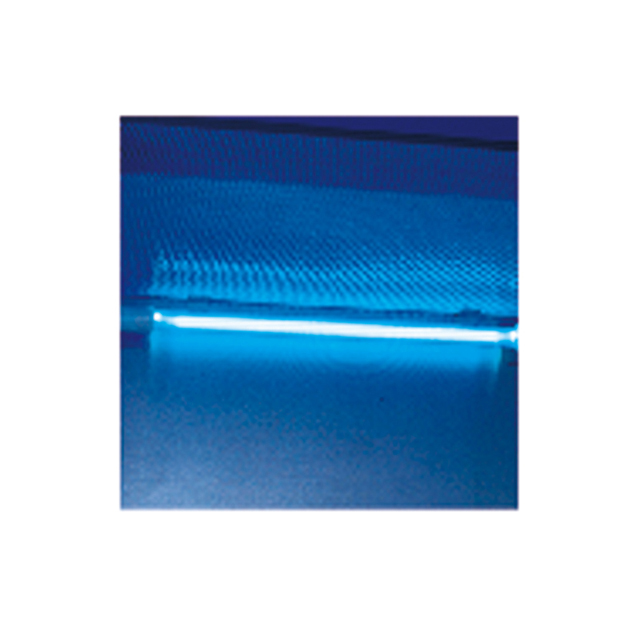

UV Lamp | 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
LED Lamp | 8W*2 |
Illumination | ≥1000Lux |
Consumption | 500W |
Socket | Two, total load of two sockets: 500W |
Display | LCD display |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, High filter pressure alarm |
Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
Work Surface Height | 750mm with optional base stand |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Standard Accessory | LED lamp*2, UV lamp*2, Remote control, Waterproof sockets*2 |
Optional Accessory | SS Water tap*1, SS Gas tap*1, Base stand |
Packing Size(without base stand) | Carton: 810*760*1430mm Wood: 850*810*1430mm |
Gross Weight(without base stand) | Carton: 120kg Wood: 140kg |
Package Size(with base stand) | Carton: 860*810*1430mm Wood: 970*850*1430mm |
Gross Weight(with base stand) | Carton: 139kg Wood: 162kg |
