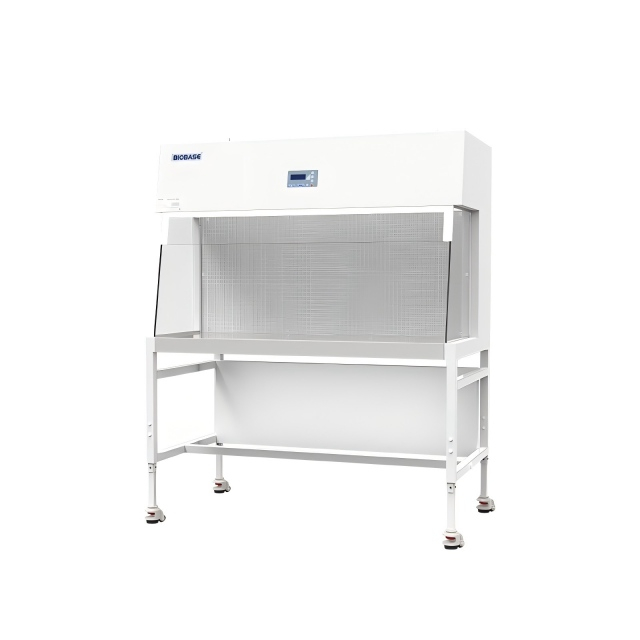

ETL Certified Horizontal Laminar Flow Cabinet

Introduction:
Laminar flow cabinet is a box-type air purification equipment that can provide local dust-free clean, sterile working environment class 100 (ISO Class 5) local operating environment. The polluted air in the working area can be artificially controlled through a special filter channel to avoid harm to people and the environment. In the working state, it can keep the performance parameters such as wind speed, air cleanliness, noise, vibration and lighting in the working space to meet the requirements of laboratory use, and is widely used in biological laboratories, medical and health and other related industries, which has a good effect on improving the process conditions, protecting the health of the operator, and improving product quality and yield.
Availability:
Quantity:
  • BBS-H800, BBS-H1100, BBS-H1300, BBS-H1500, BBS-H1800

  • BIOBASE

Features:
1. ETL certification, satisfy North American market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).
BBS-H800


Technical Parameters:

Model

BBS-H800

BBS-H1100

BBS-H1300

BBS-H1500

BBS-H1800

External Size(W*D*H)

800*810*(1720~1980)mm

1100*810*(1720~1980)mm

1300*810*(1720~1980)mm

1500*810*(1720~1980)mm

1800*810*(1720~1980)mm

Internal Size(W*D*H)

700*500*600mm

1000*500*600mm

1200*500*600mm

1400*500*600mm

1700*500*600mm

Work Surface Height

750~1010mm

Max Opening

440mm

Display

LCD display

Airflow Velocity

80~99fpm

Material

Working area: 304 stainless steel

Main body: Cold-rolled steel with anti-bacteria powder coating

Front window: 5mm toughened glass, anti-UV

Pre-Filter

Polyester fiber

HEPA Filter

One, 99.995% efficiency at 0.3μm

Noise

≤68dB(A)

Illumination

≥300lx

Waterproof Sockets

One socket(Double type), America standard, Max. Power: 500W

Power Supply

103.5~126.5V, 60Hz, 10A

Consumption

750W

950W

950W

950W

1150W

LED Lamp

10W*1

14W*1

14W*1

18W*1

22W*1

Standard Accessories

Manually height adjustable base stand, LED lamp, Wind speed sensor, Waterproof socket,

Stainless steel. V. Bar with 10 hooks

Optional Accessories

UV lamp

Package Size(W*D*H)

940*1090*1250mm

1240*1090*1250mm

1440*1090*1250mm

1640*1090*1250mm

1940*1090*1250mm

Gross Weight

150kg

190kg

225kg

265kg

300kg
