Vertical Laminar Flow Cabinet BBS-V-X Series

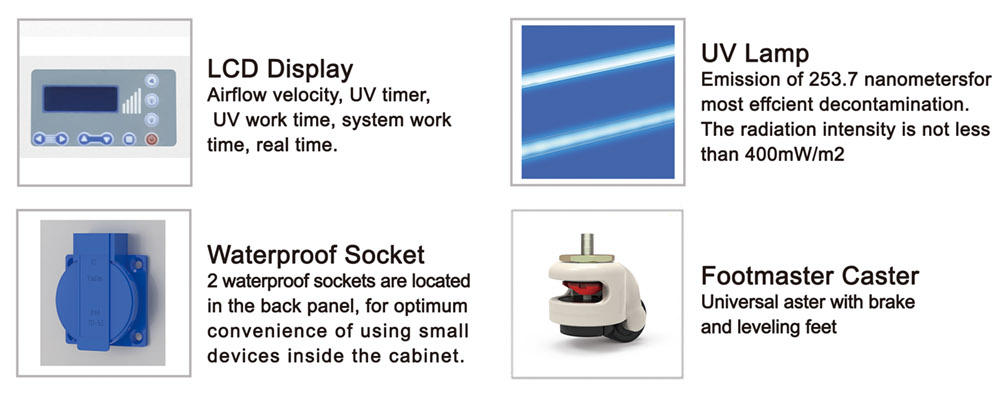

LCD Display
Airflow velocity, UV timer, UV work time, system work time, real time.
Waterproof Socket
2 waterproof sockets are located in the back panel, for optimum convenience of using small devices inside the cabinet.
UV Lamp
Emission of 253.7 nanometersfor most effcient decontamination. The radiation intensity is not less than 400mW/m2
Footmaster Caster
Universal aster with brake and leveling feet
Availability:
Quantity:
  • BBS-V800-X BBS-V1300-X BBS-V1800-X

  • BIOBASE

Advantage:

1. Adjustable air speed: 8 levels.

2. 7° slope front ergonomics design, fatigue-free working posture.

3. Interlock function: UV Lamp and blower, LED Lamp.

4. UV lamp starts after 5 seconds delay. Protect operator safety

5, With UV lamp, fan appointment timing function.

6. Set the safe height of the front window opening, and alarm when it is lower or higher than the safe height. Ensure that the performance of the equipment is stable.

7, Footmaster casters design, convenient cabinet movement and fixation


Model

BBS-V800-X

BBS-V1300-X

BBS-V1800-X

External Size(W*D*H)

800*710*1850mm

1300*710*1850mm

1800*710*1850mm

Internal Size(W*D*H)

700*575*625mm

1200*575*625mm

1700*575*625mm

Work Surface Height

750mm

Max Opening

400mm

Display

LCD display

Airflow Velocity

0.3~0.45m/s

Material

Working area: 304 stainless steel. Main body: 1.2mm cold-rolled steel with anti-bacteria powder coating. Front window: 5mm toughened glass, anti-UV.

Pre-Filter

Polyester fiber

HEPA Filter

One, 99.995% efficiency at 0.3μm

Noise

≤65dB(A)

Illumination

≥300lx

Waterproof Sockets

Two sockets, Max. Power: 500W

Power Supply

AC220V±10%, 50/60Hz(Standard); 110V±10%,60Hz(Optional)

Consumption

650W

750W

900W

LED Lamp

8W*1

12W*1

16W*1

UV Lamp

20W*1

30W*1

40W*1

Standard Accessories

Base stand; LED lamp; UV lamp; Waterproof socket*2.

Optional Accessories

/

Camera, scanner, tablet computer

Package Size(W*D*H)

940*980*1350mm

1440*980*1350mm

1940*980*1350mm

Gross Weight

140kg

220kg

280kg
