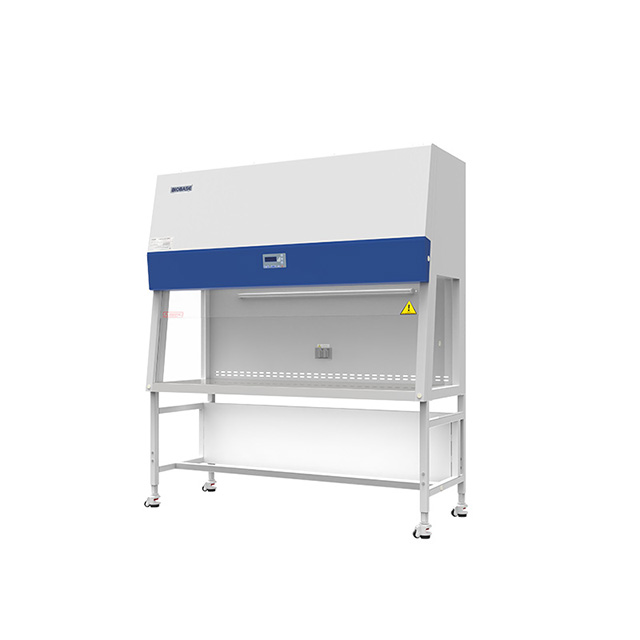

ETL Certified Vertical Laminar Flow Cabinet

Availability:
Quantity:
  • BBS-V800, BBS-V1100, BBS-V1300, BBS-V1500, BBS-V1800
  • BIOBASE

Advantage:

1. ETL certified, Satisfy North American market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).

4. Interlock function: UV Lamp and blower LED Lamp.


Models:

Model

BBS-V800

BBS-V1100

BBS-V1300

BBS-V1500

BBS-V1800

External Size(W*D*H)

800*700*(2090~2340)mm

1100*700*(2090~2340)mm

1300*700*(2090~2340)mm

1500*700*(2090~2340)mm

1800*700*(2090~2340)mm

Internal Size(W*D*H)

700*575*625mm

1000*575*625mm

1200*575*625mm

1400*575*625mm

1700*575*625mm

Work Surface Height

750~1010mm

Max Opening

480mm

Display

LCD Display

Airflow Velocity

Average of 80~99fpm

Material

Working area: 304stainless Steel

Main Body: 1.2mm Cold-rolled steel with anti-bacteria powder coating.

Front Window: Motorized, 5mm toughened glass, anti-UV

Pre-Filter

Polyester fiber

HEPA Filter

One,99.995% efficiency at 0.3μm

Noise

≤67dB(A)

Illumination

≥300lx

Waterproof Sockets

One socket (Double type), America standard, Max.Power: 500W

Power Supply

110V±10%V, 60HZ

Consumption

750W

950W

950W

950W

1150W

UV Lamp

18W*1

30W*1

30W*1

40W*1

40W*1

LED Lamp

10W*1

14W*1

14W*1

18W*1

22W*1

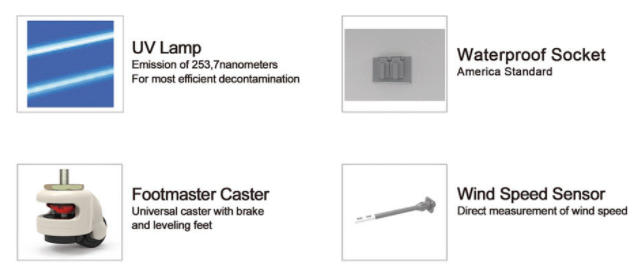

Standard Accessory

Manually height adjustable base stand;

LED lamp;

UV lamp;

Wind speed sensor;

Waterproof socket.

Package Size (W*D*H)

940*970*1560mm

1240*970*1560mm

1440*970*1560mm

1640*970*1560mm

1940*970*1560mm

Gross Weight

190kg

230kg

265kg

280kg

320kg
