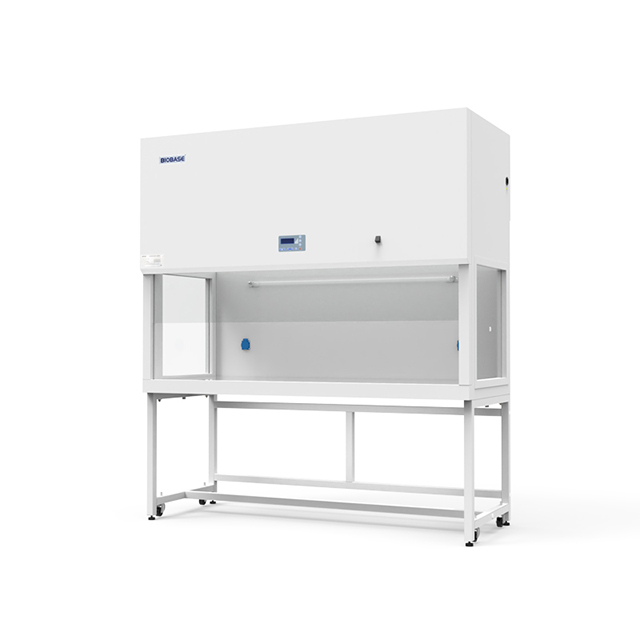

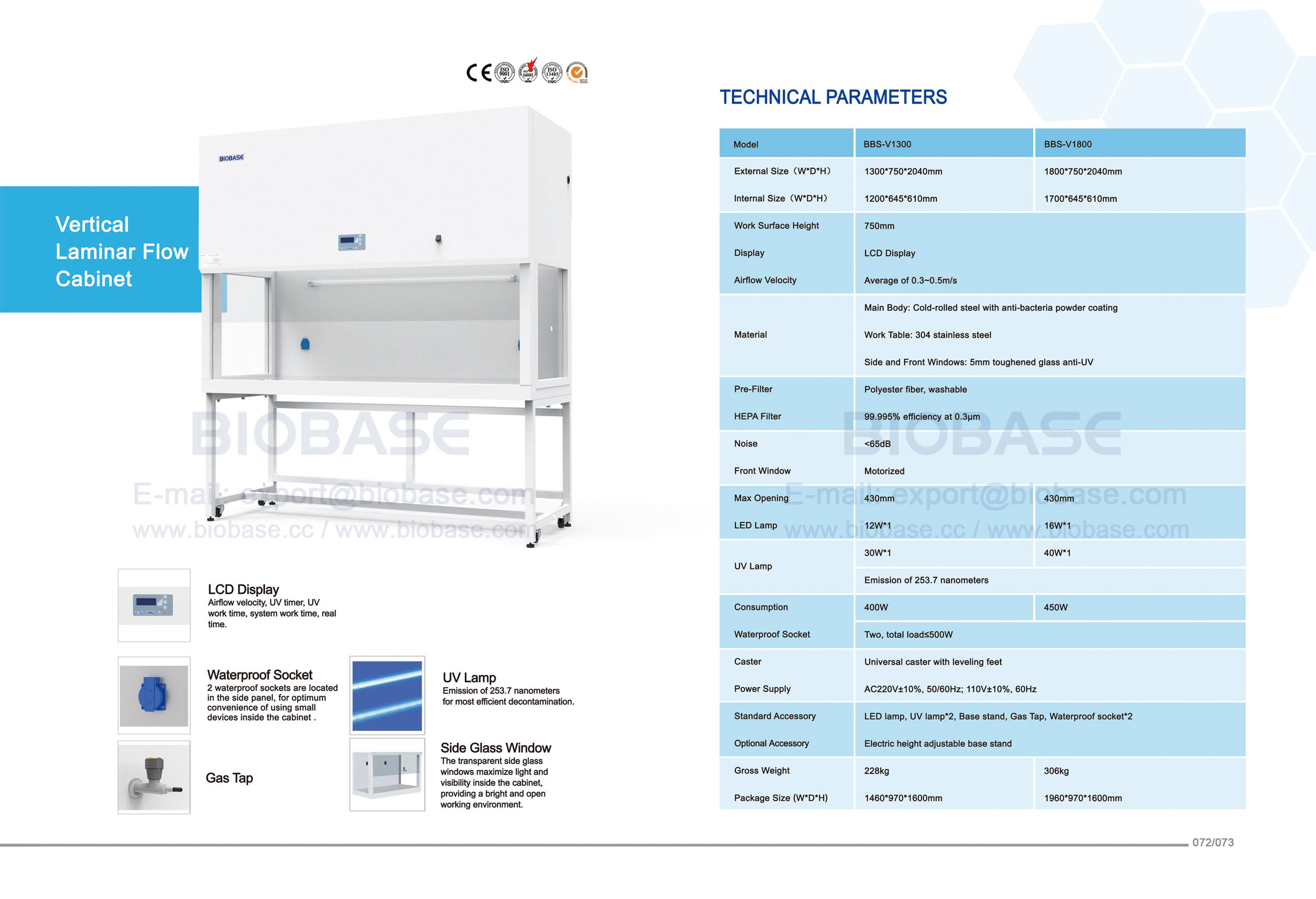

Vertical Laminar Flow Cabinet BBS-V1300 BBS-V1800

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Availability:
Quantity:
  • BBS-V1300, BBS-V1800
  • BIOBASE

Models:

Model

BBS-V1300

BBS-V1800

External Size(W*D*H)

1300*820*2040mm

1800*750*2040mm

Internal Size(W*D*H)

1200*645*610mm

1700*645*610mm

Work Surface Height

750mm

Display

LCD Display

Airflow Velocity

Average of 0.3~0.5m/s

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Side and Front Windows: 5mm toughened glass anti-UV

Pre-filter

Polyester fiber, washable

HEPA Filter

99.999% efficiency at 0.3μm

Noise

<65dB

Front Window

Motorized

Max Opening

430mm

LED Lamp

12W*1

16W*1

UV Lamp

30W*1

40W*1

Emission of 253.7 nanometers

Consumption

400W

450W

Waterproof socket

Two, total load≤500W

Caster

Universal caster with leveling feet

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

LED lamp;

UV lamp*2;

Base stand;

Gas Tap;

Waterproof socket*2.

Optional Accessory

Electric height adjustable base stand

Gross Weight

228kg

306kg

Package Size(W*D*H)

1460*1070*1650mm

1960*970*1600mm
