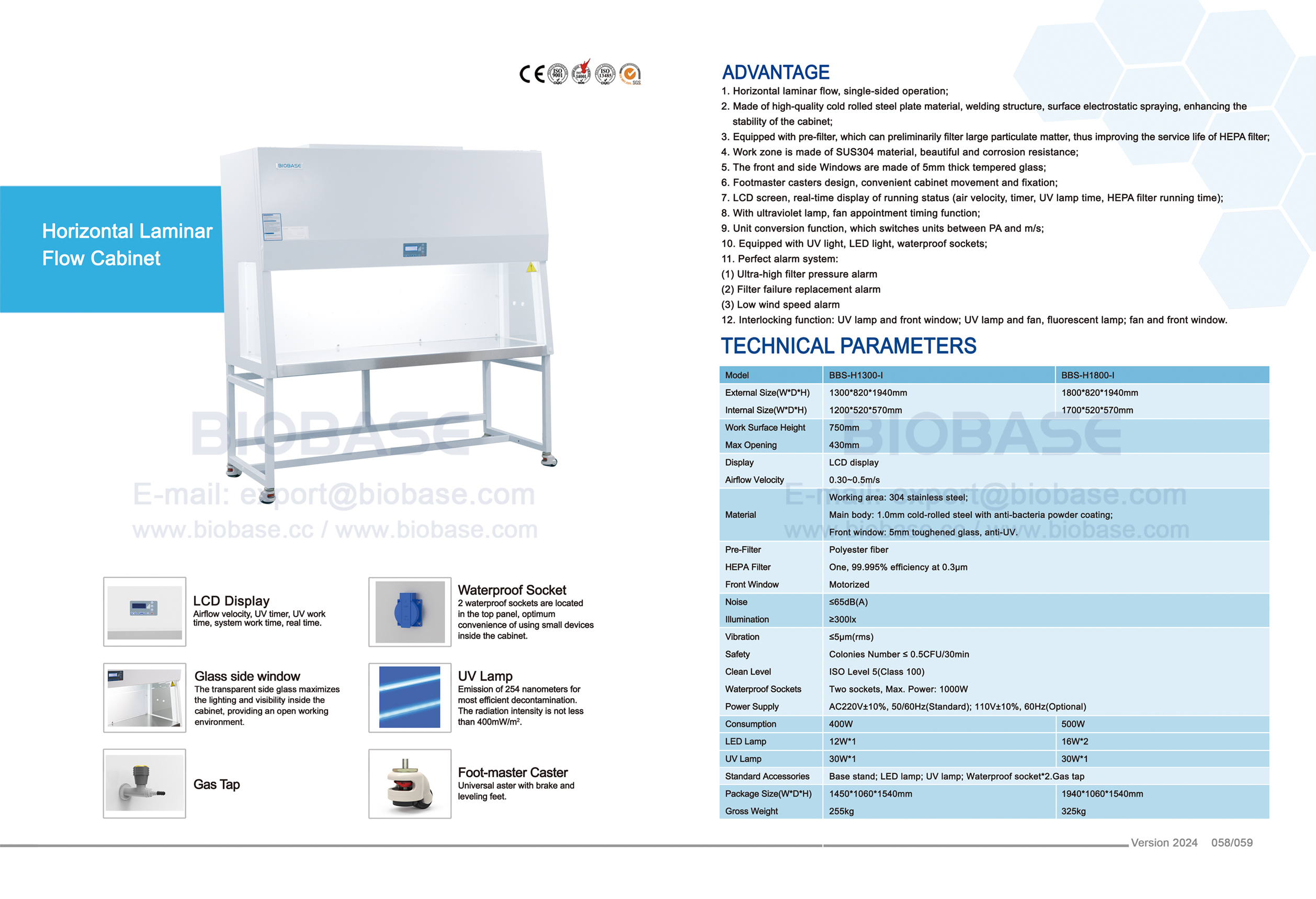

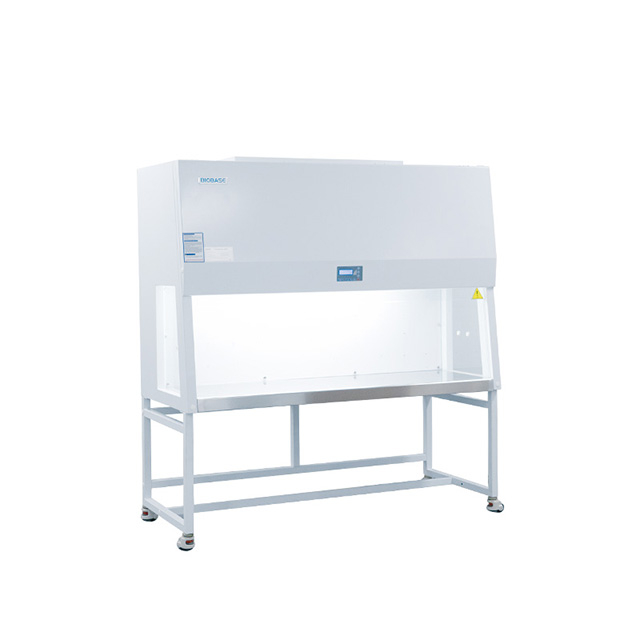

Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I

Introduction:

The Horizontal Laminar Flow Cabinet is an advanced containment system designed to provide a sterile and particle-free working environment, essential for sensitive laboratory procedures. This cabinet ensures a continuous flow of HEPA-filtered air across the workspace, effectively protecting samples from contamination.

Availability:
Quantity:
  • BBS-H1300-I BBS-H1800-I

  • BIOBASE

Features:
1. Horizontal laminar flow, single-sided operation.

2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.

3. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.

4. Work zone is made of SUS304 material, beautiful and corrosion resistance.

5. The front and side Windows are made of 5mm thick tempered glass.

6. Footmaster casters design, convenient cabinet movement and fixation.

7. LCD screen,  real-time display of running status (air velocity, timer, UV lamp time,  HEPA filter running time).

8. With ultraviolet lamp, fan appointment timing function.

9. Unit conversion function, which switches units between PA and m/s.

10. Equipped with UV light, LED light, waterproof sockets.

11. Perfect alarm system:

(1) Ultra-high filter pressure alarm

(2) Filter failure replacement alarm

(3) Low wind speed alarm

12. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.

BBS-H1300-1

Technical Parameters:

Model

BBS-H1300-I

BBS-H1800-I

External Size(W*D*H)

1300*820*1940mm

1800*820*1940mm

Internal Size(W*D*H)

1200*550*570mm

1700*550*570mm

Work Surface Height

750mm

Max Opening

430mm

Display

LCD display

Airflow Velocity

0.30~0.5m/s

Material

Working area: 304 stainless steel

Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating
Front window: 5mm toughened glass, anti-UV

Pre-Filter

Polyester fiber

HEPA Filter

One, 99.995% efficiency at 0.3μm

Front Window

Motorized

Noise

≤65dB(A)

Illumination

≥300lx

Vibration

≤5μm(rms)

Safety

Colonies Number≤0.5CFU/30min

Clean Level

ISO level 5(Class 100)

Waterproof Sockets

Two sockets, Max. Power: 1000W

Power Supply

AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)

Consumption

1400W

1500W

LED Lamp

12W*1

16W*2

UV Lamp

30W*1

30W*1

Standard Accessories

Base stand, LED lamp, UV lamp, Waterproof socket*2.Gas tap

Package Size(W*D*H)

1450*1060*1540mm

1940*1060*1540mm

Gross Weight

255kg

325kg
