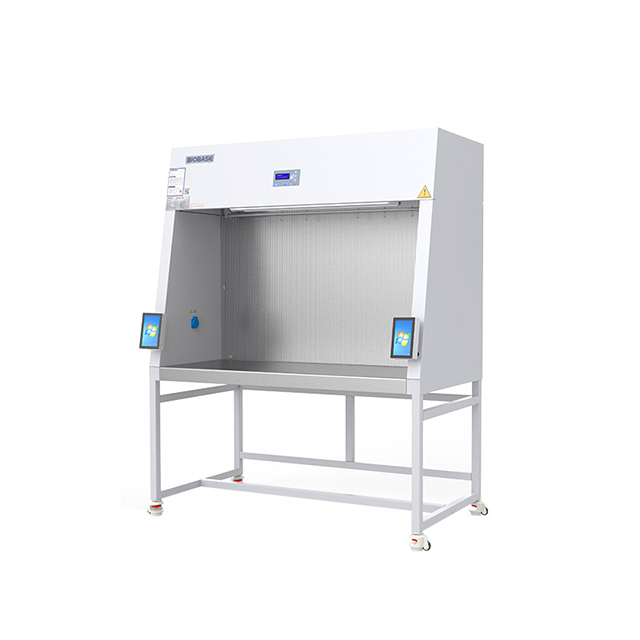

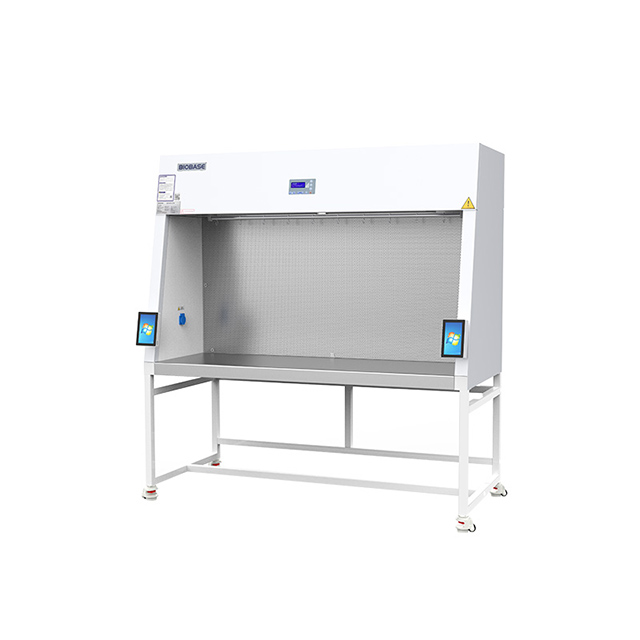

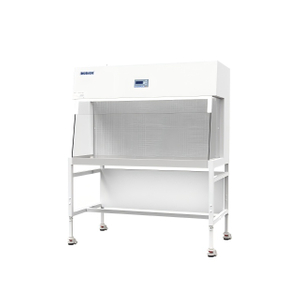

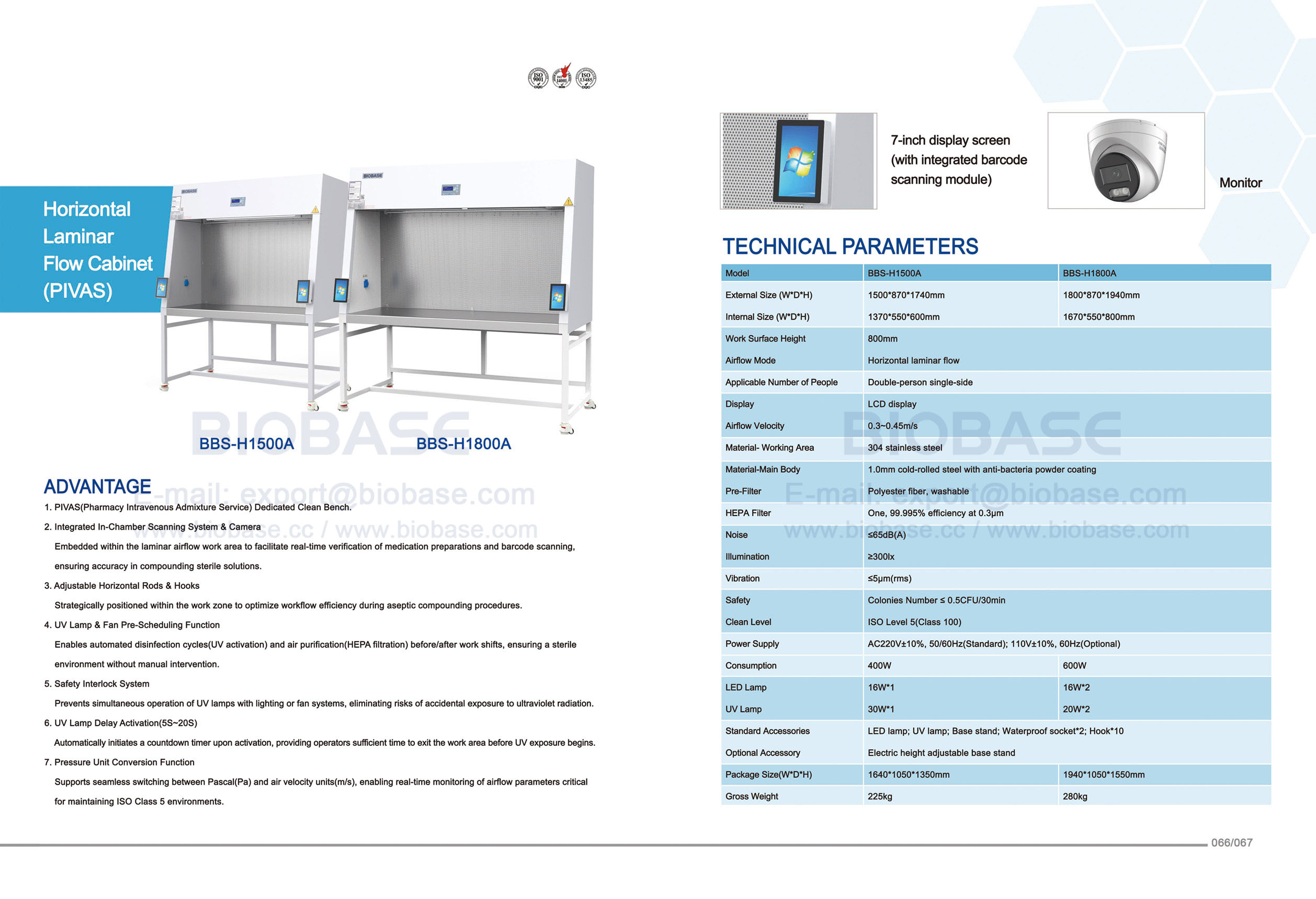

BBS-H1500A BBS-H1800A
BIOBASE
Features：
1. Dedicated Clean Bench.
2. Integrated In-Chamber Scanning System&Camera
Embedded within the laminar airflow work area to facilitate real - time verification of medication preparations and barcode scanning, ensuring accuracy in compounding sterile solutions.
3. Adjustable Horizontal Rods&Hooks
Strategically positioned within the work zone to optimize workflow efficiency during aseptic compounding procedures.
4. UV Lamp&Fan Pre-Scheduling Function
Enables automated disinfection cycles(UV activation) and air purification(HEPA filtration) before/after work shifts, ensuring a sterile environment without manual intervention.
5. Safety Interlock System
Prevents simultaneous operation of UV lamps with lighting or fan systems, eliminating risks of accidental exposure to ultraviolet radiation.
6. UV Lamp Delay Activation(5S~20S)
Automatically initiates a countdown timer upon activation, providing operators sufficient time to exit the work area before UV exposure begins.
7. Pressure Unit Conversion Function
Supports seamless switching between Pascal(Pa) and air velocity units(m/s), enabling real-time monitoring of airflow parameters critical for maintaining ISO Class 5 environments.

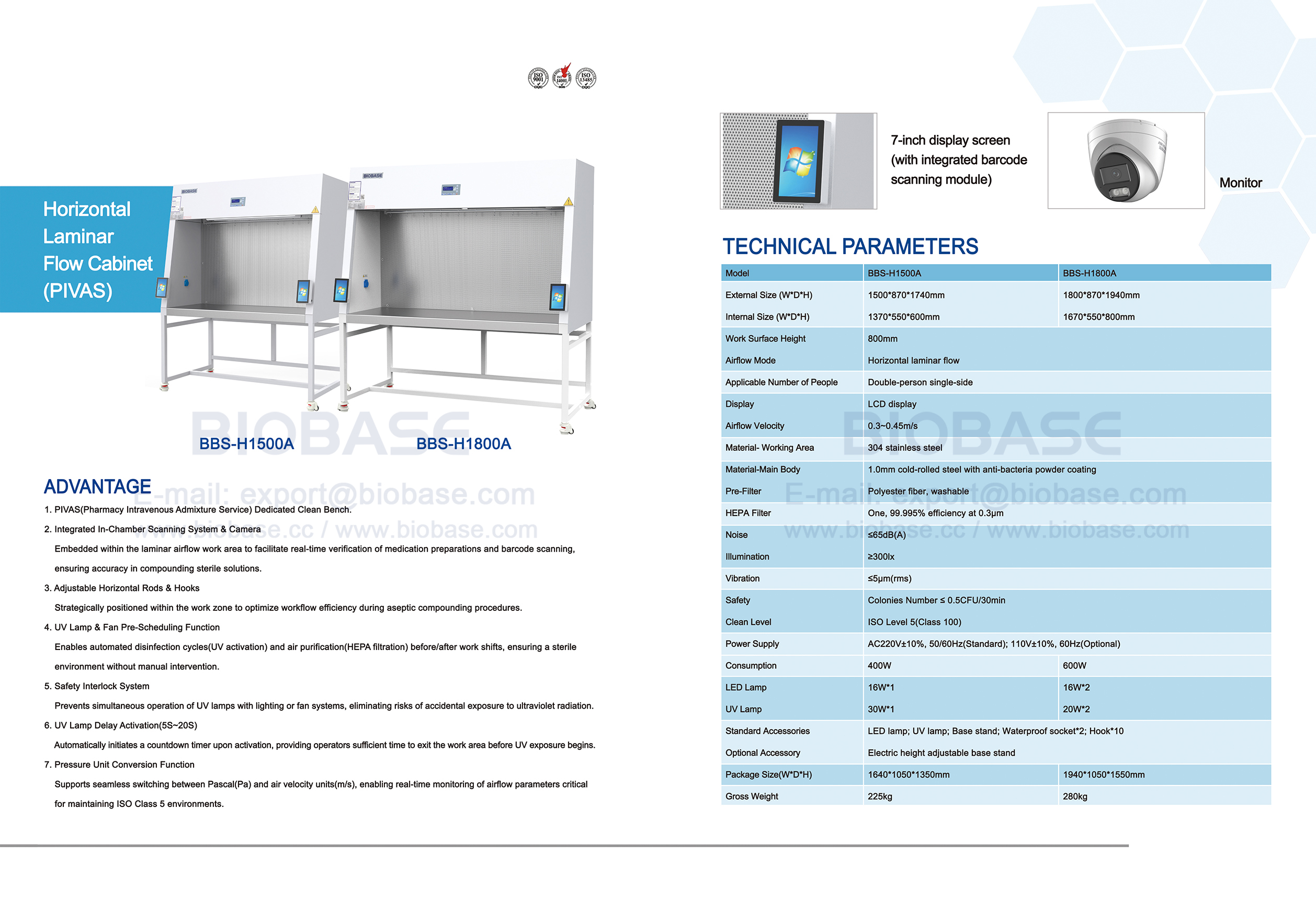

Technical Parameters:
Model | BBS-H1500A | BBS-H1800A |
External Size(W*D*H) | 1500*870*1740mm | 1800*870*1940mm |
Internal Size(W*D*H) | 1370*550*600mm | 1670*550*800mm |
Work Surface Height | 800mm | |
Airflow Mode | Horizontal laminar flow | |
Applicable Number of People | Double-person single-side | |
Display | LCD display | |
Airflow Velocity | 0.3~0.45m/s | |
Material- Working Area | 304 stainless steel | |
Material-Main Body | 1.0mm cold-rolled steel with anti-bacteria powder coating | |
Pre-Filter | Polyester fiber, washable | |
HEPA Filter | One, 99.995% efficiency at 0.3μm | |
Noise | ≤65dB(A) | |
Illumination | ≥300lx | |
Vibration | ≤5μm(rms) | |
Safety | Colonies Number ≤0.5CFU/30min | |
Clean Level | ISO Level 5(Class 100) | |
Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) | |
Consumption | 400W | 600W |
LED Lamp | 16W*1 | 16W*2 |
UV Lamp | 30W*1 | 20W*2 |
Standard Accessories | LED lamp; UV lamp; Base stand; Waterproof socket*2; Hook*10 | |
Optional Accessory | Electric height adjustable base stand | |
Package Size(W*D*H) | 1640*1050*1350mm | 1940*1050*1550mm |
Gross Weight | 225kg | 280kg |
