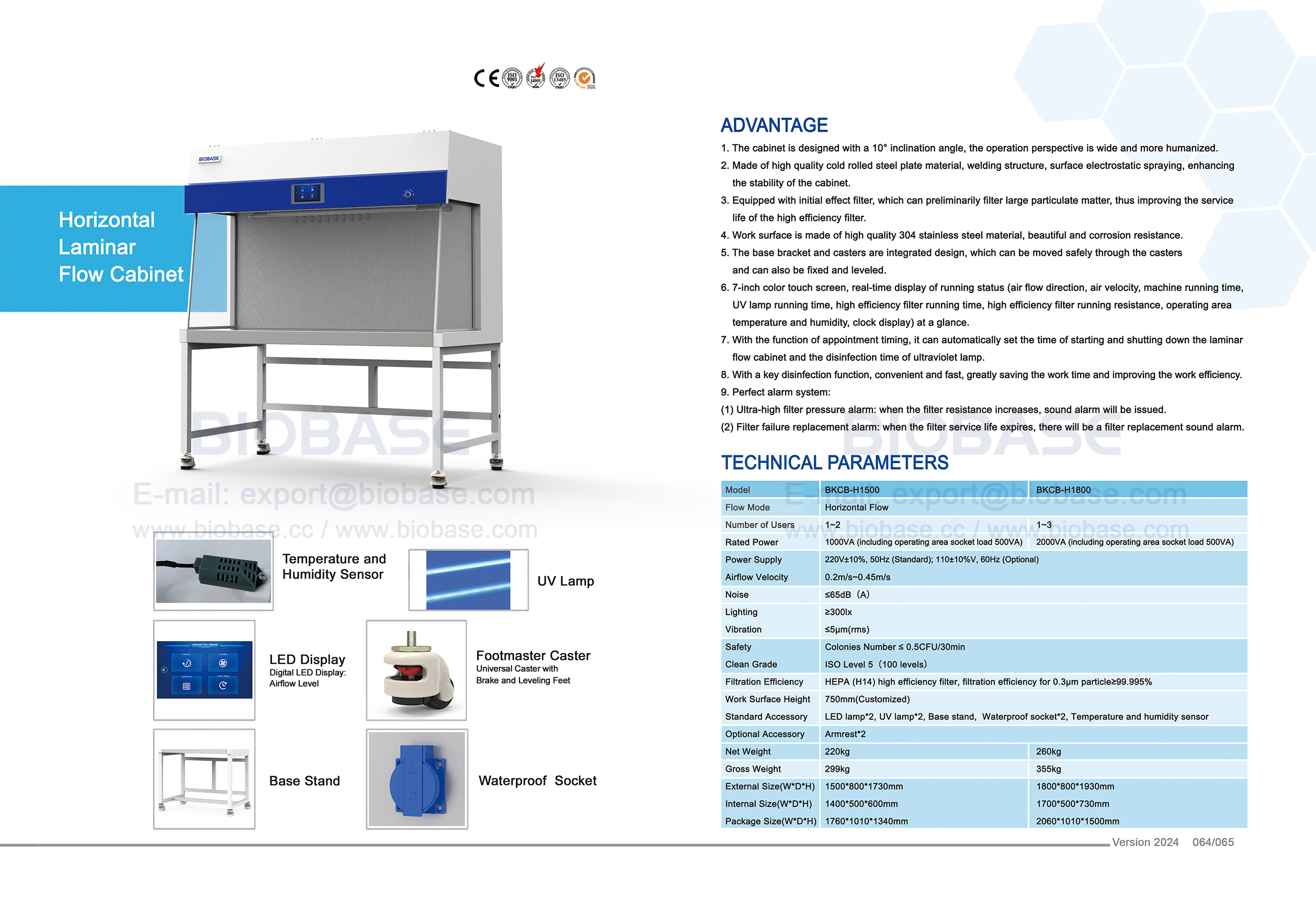

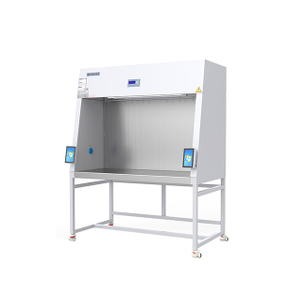

Horizontal Laminar Flow Cabinet

Introduction:
Laminar flow cabinet is a kind of air purification equipment that provides a local dust-free and sterile working environment. It is widely used in biological laboratory, medical and health care and other related industries. It purifies the air entering the work area through high efficiency filters to remove pollutants such as dust and microorganisms in the air, thereby maintaining a relatively clean working environment.
Availability:
Quantity:
  • BKCB-H1500 BKCB-H1800

  • BIOBASE

Features:
1. The cabinet is designed with a 10° inclination angle, the operation perspective is wide and more humanized.

2. Made of high quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.

3. Equipped with initial effect filter, which can preliminarily filter large particulate matter, thus improving the service life of the high efficiency filter.

4. Work surface is made of high quality 304 stainless steel material, beautiful and corrosion resistance.

5. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.

6. The base bracket and casters are integrated design, which can be moved safely through the casters and can also be fixed and leveled.

7. 7-inch color touch screen, real-time display of running status (air flow direction, air velocity, machine running time, UV lamp running time, high efficiency filter running time, high efficiency filter running resistance, operating area temperature and humidity, clock display) at a glance.

8. With the function of appointment timing, it can automatically set the time of starting and shutting down the laminar flow cabinet and the disinfection time of ultraviolet lamp.

9. With a key disinfection function, convenient and fast, greatly saving the work time and improving the work efficiency.

10. Perfect alarm system:

(1) Ultra-high filter pressure alarm: when the filter resistance increases, sound alarm will be issued;

(2) Filter failure replacement alarm: when the filter service life expires, there will be a filter replacement sound alarm.

BKCB-H1500

Technical Parameters:

Model

BKCB-H1500

BKCB-H1800

Flow Mode

Horizontal flow

Number of Users

1~2

1~3

Rated Power

1000VA(including operating area socket load 500VA)

2000VA(including operating area socket load 500VA)

Power Supply

220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional)

Airflow Velocity

0.2m/s~0.45m/s

Noise

≤65dB(A)

Lighting

≥300lx

Vibration

≤5μm(rms)

Safety

Colonies Number≤0.5CFU/30min

Clean Grade

ISO level 5(100 levels)

Filtration Efficiency

HEPA (H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995%

Work Surface Height

750mm(Customized)

Standard Accessory

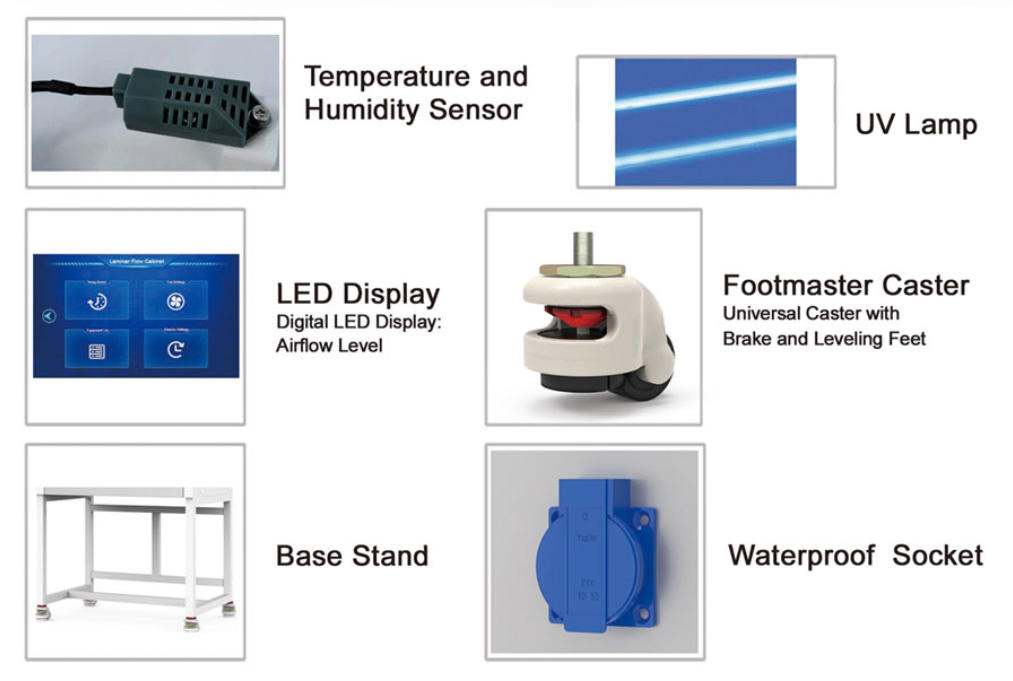

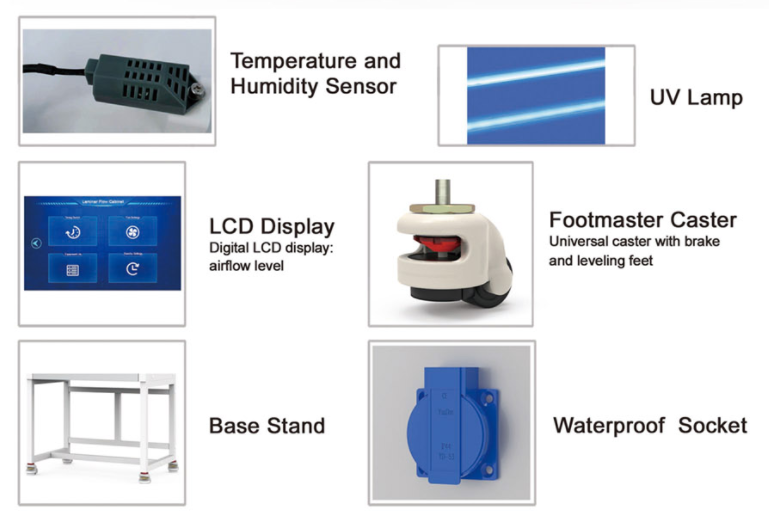

LED lamp*2, UV lamp*2, Base stand, Waterproof socket*2, Temperature and humidity sensor

Optional Accessory

Armrest*2

Net Weight

220kg

260kg

Gross Weight

299kg

355kg

External Size(W*D*H)

1500*800*1730mm

1800*800*1930mm

Internal Size(W*D*H)

1400*500*600mm

1700*500*730mm

Package Size(W*D*H)

1760*1010*1340mm

2060*1010*1500mm
