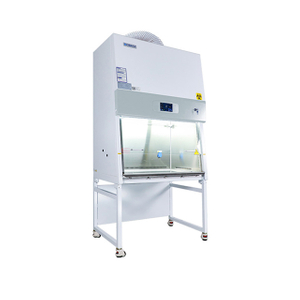

New Class II B2 Biosafety Cabinet PRO Series

Introduction:
Biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.

Availability:

Quantity:



Inquire Add to Basket

Model:
BSC-1100IIB2-PRO BSC-1500IIB2-PRO BSC-1800IIB2-PRO
Brand:
BIOBASE

Features:

1. Larger angle of view, easy to operate and more humanized.

2. Motorized front window.

3. ULPA filter life and UV life indicator.

4. Time reserve function.

5. With memory function in case of power-failure.

6. Self-locking button switch to solve the trouble of losing the key.

7. 7 inch Large touch screen with Intelligent control system: operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

8. Audio and visual alarm: filter replacement, window over height, abnormal air flow velocity, etc.High filter pressure alarm.

9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.

10. Interlock function: UV lamp and front window, UV lamp and blower, LED lamp, blower and front window.

11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

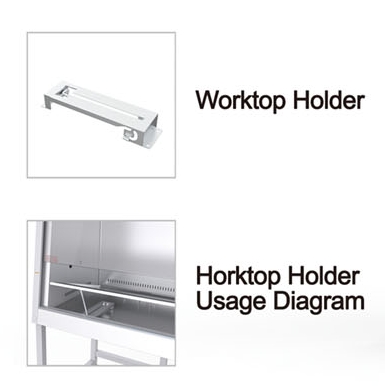

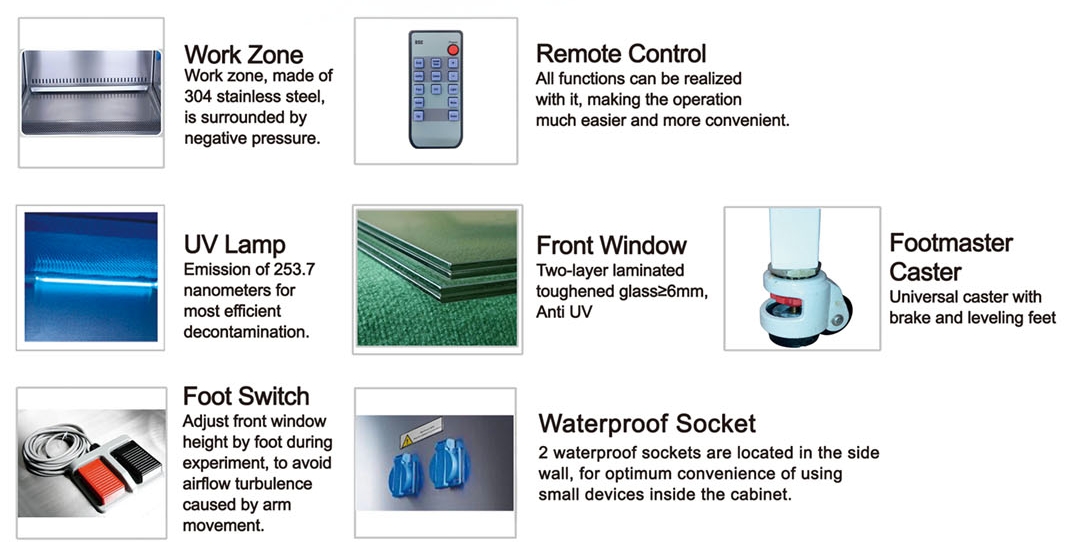

BSC-11001IB2-Pro BSC-11001IB2-Pro-1

Technical Parameters:

Model		BSC-1100IIB2-Pro	BSC-1500IIB2-Pro	BSC-1800IIB2-Pro
External Size(WDH)		11007502255mm	15007702290mm	18757952280mm

Internal Size(WDH)		940600655mm	1350600660mm	1700600660mm

Tested Opening		Safety height 200mm(8")
Max Opening		420mm(17")	500mm(20")	480mm(20")
Inflow Velocity		0.53±0.025m/s
Down Flow Velocity		0.33±0.025m/s
ULPA Filter		Two, 99.9995% efficiency at 0.12 μm, filter life indicator
Front Window		Motorized, two-layer laminated toughened glass≥6mm, anti UV
Noise		≤ 67dB
UV Lamp		30W*1	40W*1	40W*1
		UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp		LED lamp
		12W*2	16W*2	16W*2
Illumination		≥1000Lux
Consumption		800W	1300W	1400W
Waterproof Sockets		Two, total load of two sockets: 500W
Display		7 inch touch screen display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc
Control System		Microprocessor
Airflow System		0% air re-circulation, 100% air exhaust
Alarm		Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm
Exhaust Duct		4 meters PVC duct, Diameter: 300mm
Material		Work Zone: 304 stainless steel
		Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height		750mm(Size can be customized according to requirements)
Caster		Footmaster caster
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory		LED lamp2, UV lamp2, base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets2, pipe strap2
Optional Accessory		1. Water and gas tap, Electric height adjustable base stand. 2. Wind speed self adjustment function, real-time compensation for wind speed through sensor monitoring. 3. APP networking remote control. 4. USB data transfer function, supporting data monitoring and export. 5. LED fluorescent lamp brightness adjustment function. 6. Base bracket with manual or electric height adjustment function. 7. Manual lifting front window function. 8. Manual automatic lifting front window function.
Package	Main Body	12509901770mm	16509901820mm	200010751910mm
	Exhaust Blower(WDH)	920790690mm	920790790mm	920790840mm
Gross Weight		265kg; 50kg	325kg; 56kg	420kg; 60kg
