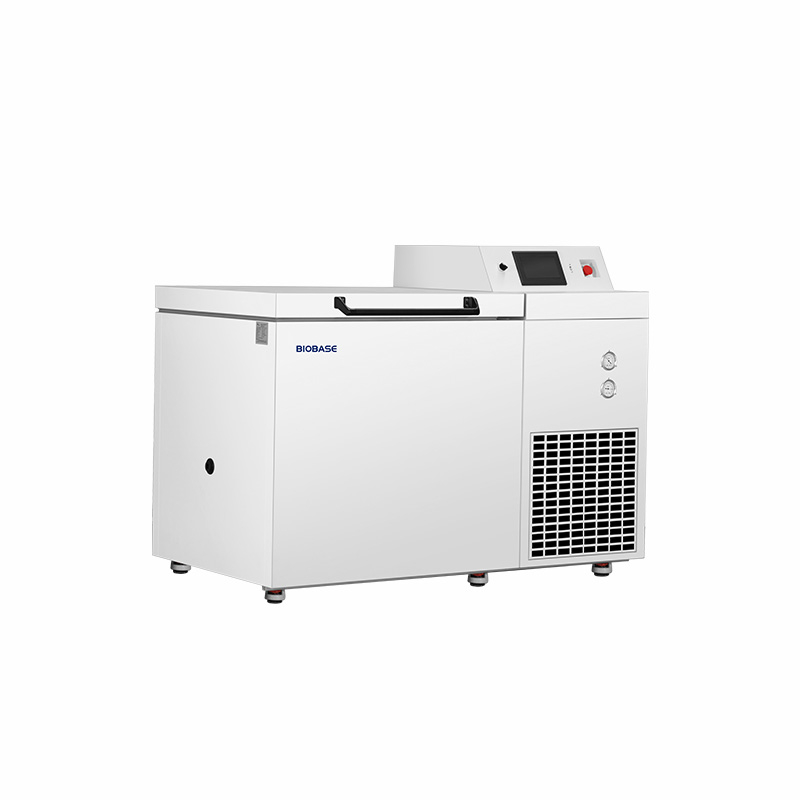

BDF-150H128
BIOBASE
Technical Parameters:
Model | BDF-150H128 | |
External Size(W*D*H)mm | 1560*957*1178 | |
Internal Size(W'D*H)mm | 500*450*578 | |
Capacity | 128L | |
Type | Horizontal | |
Temp. Range | -40~-150℃ | |
Temp. Accuracy | 0.1℃ | |
Control System | Microprocessor control, LCD touch screen | |
Audible and Visual Alarm | High temperature alarm, low temperature alarm, abnormal power supply alarm, sensor failure alarm, thermostat failure alarm, filter screen inspection alarm, ambient temperature alarm, condenser failure alarm | |
Alarm Method | Sound beeps and lights flash | |
Refrigeration type | Direct refrigeration | |
Refrigerant | Mixed refrigerants | |
Compressor | 1 set | |
Construction | Foam Layer Thickness | 200mm |
lnternal Material | 304 stainless steel | |
External Material | Sprayed steel plate | |
Optional Accessory | USB port | |
Consumption | 2550W/7650VA | |
Power Supply | 380V, 50Hz | |
Package Size(W*D*H)mm | 1637*970*1383 | |
Gross Weight(kg) | 340 | |
