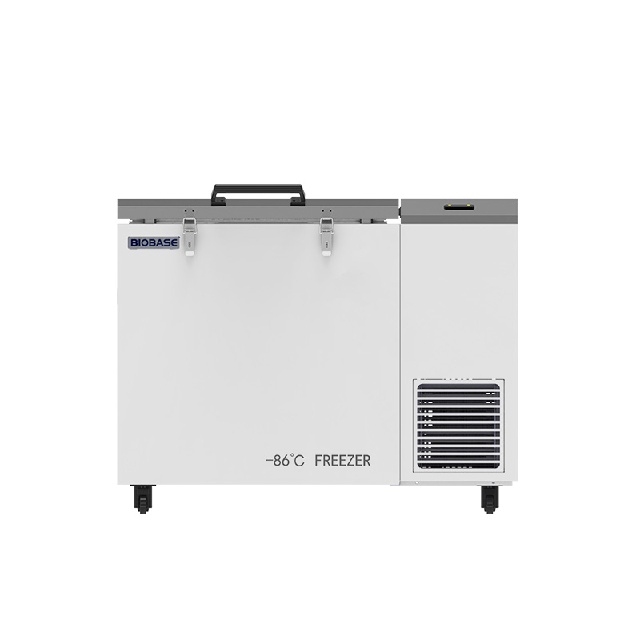

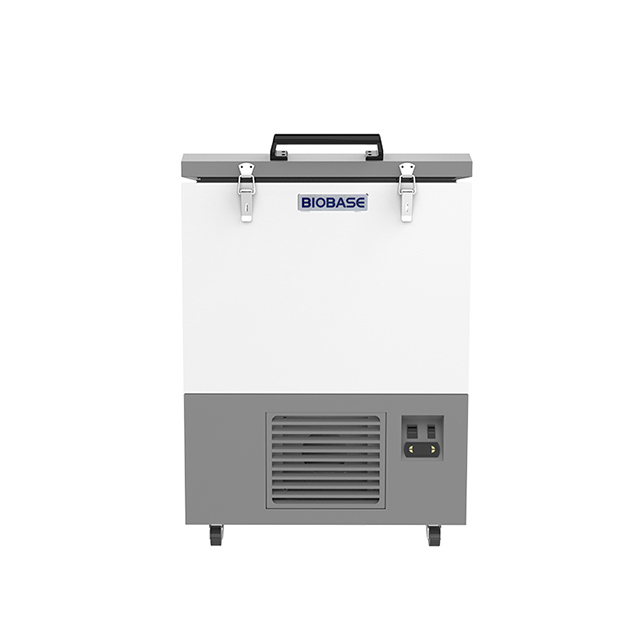

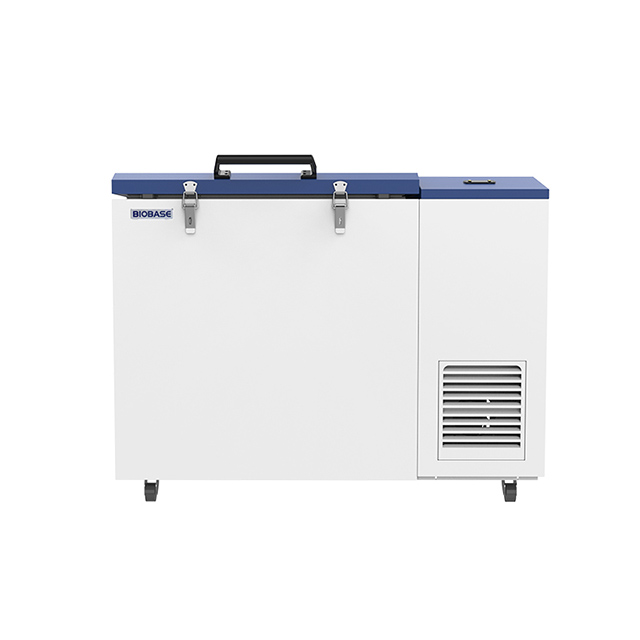

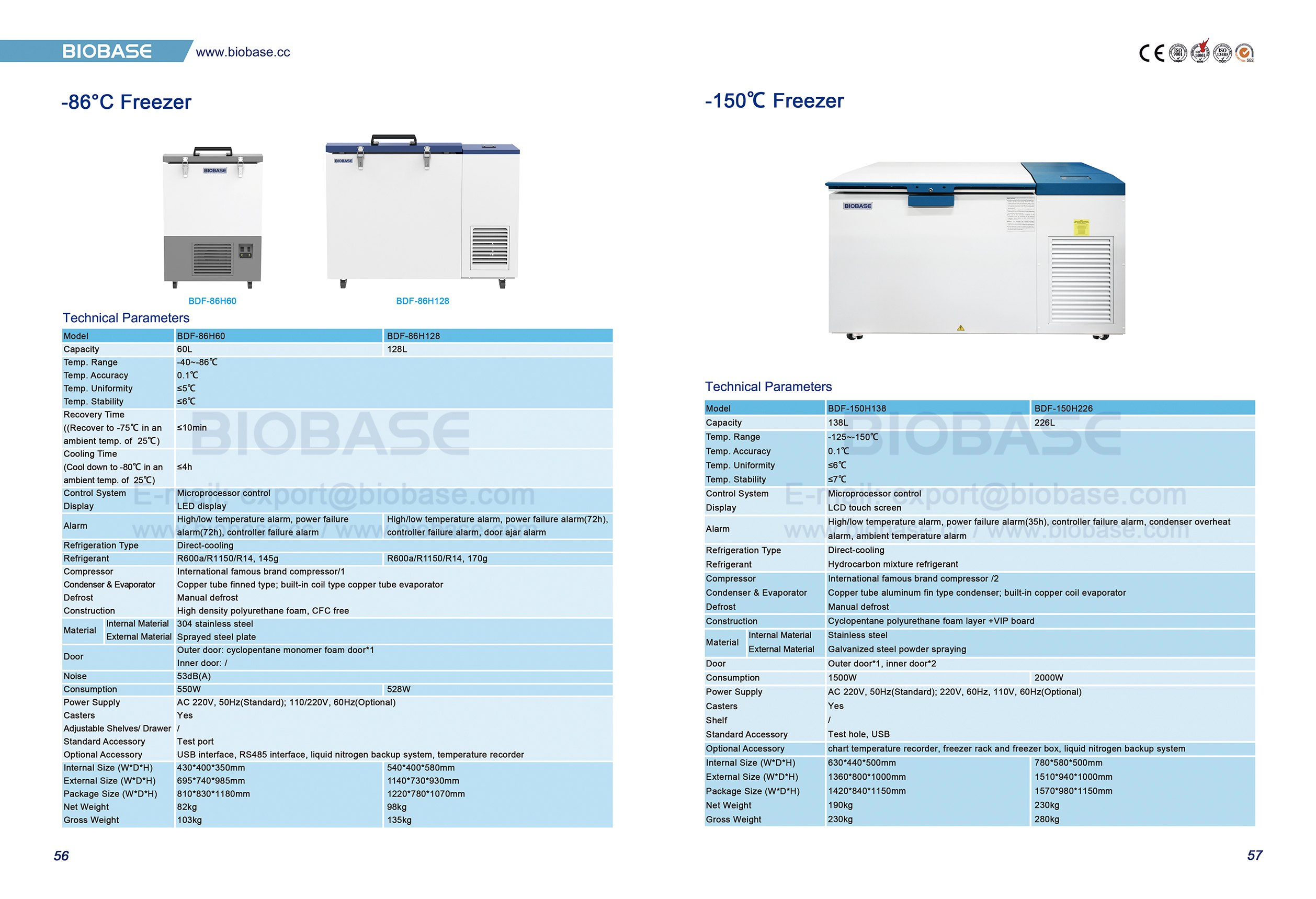

BDF-86H60 BDF-86H128
BIOBASE

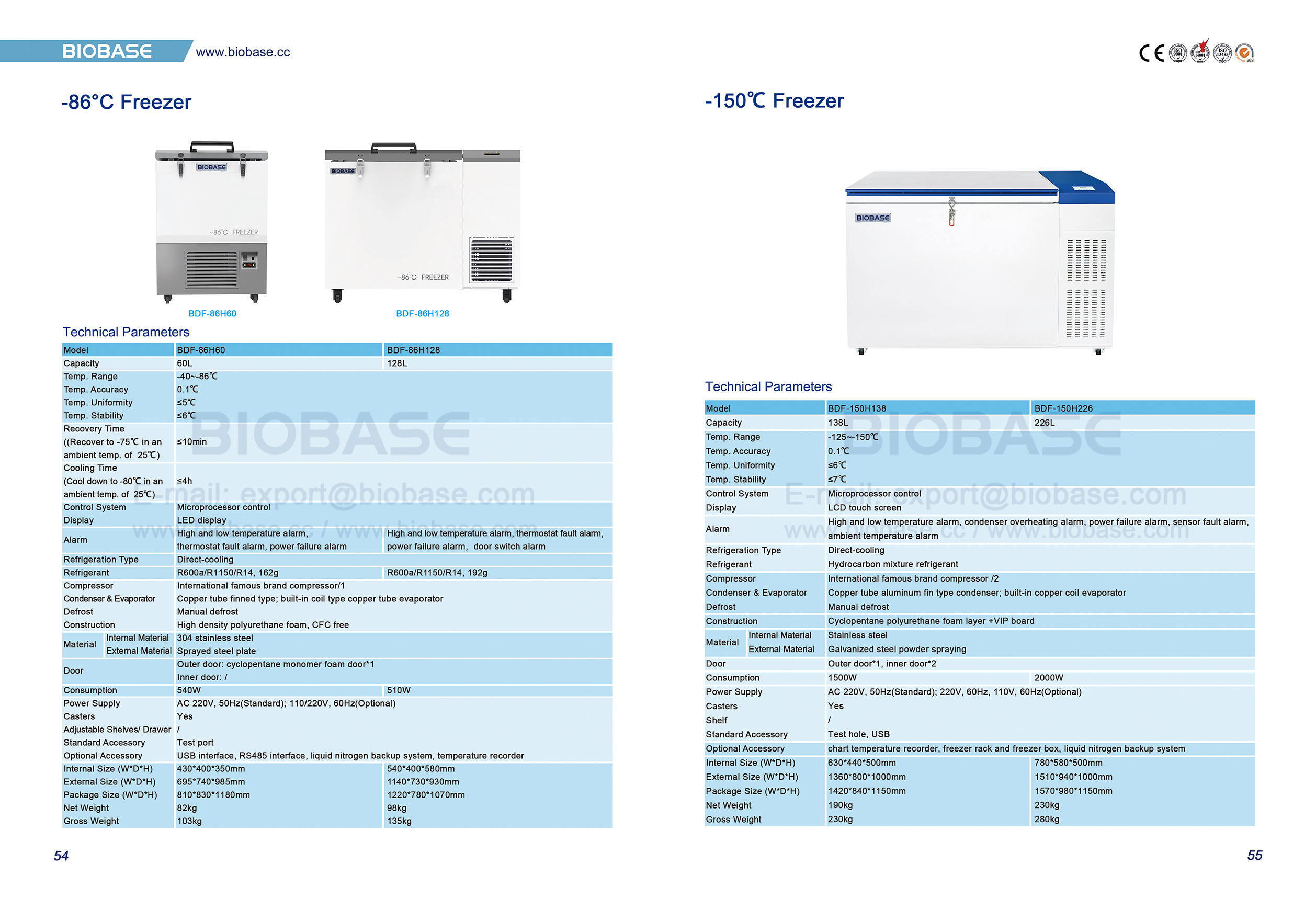

Technical Parameters:
Model | BDF-86H60 | BDF-86H128 | |||
Capacity | 60L | 128L | |||
Temp. Range | -40~-86℃ | ||||
Temp. Accuracy | 0.1℃ | ||||
Temp. Uniformity | ≤5℃ | ||||
Temp. Stability | ≤6℃ | ||||
Recovery Time (Recover to -75℃ in an ambient temp. of 25℃) | ≤10min | ||||
Cooling Time (Cool down to -80℃ in an ambient temp. of 25℃) | ≤4h | ||||
Control System | Microprocessor control | ||||
Display | LED display | ||||
Alarm | High and low temperature alarm, thermostat fault alarm, power failure alarm | High and low temperature alarm, thermostat fault alarm, power failure alarm, door switch alarm | |||
Refrigeration Type | Direct-cooling | ||||
Refrigerant | R600a/R1150/R14, 162g | R600a/R1150/R14, 192g | |||
Compressor | International famous brand compressor/1 | ||||
Condenser & Evaporator | Copper tube finned type; built-in coil type copper tube evaporator | ||||
Defrost | Manual defrost | ||||
Construction | High density polyurethane foam, CFC free | ||||
Material | Internal Material | 304 stainless steel | |||
External Material | Sprayed steel plate | ||||
Door | Outer door: cyclopentane monomer foam door*1 Inner door: / | ||||
Consumption | 540W | 510W | |||
Power Supply | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||||
Casters | Yes | ||||
Shelf | / | ||||
Standard Accessory | Test port | ||||
Optional Accessory | USB interface, RS485 interface, liquid nitrogen backup system, temperature recorder | ||||
Internal Size (W*D*H) | 430*400*350mm | 540*400*580mm | |||
External Size (W*D*H) | 695*740*985mm | 1140*730*930mm | |||
Package Size (W*D*H) | 810*830*1180mm | 1220*780*1070mm | |||
Net Weight | 82kg | 98kg | |||
Gross Weight | 103kg | 135kg | |||
