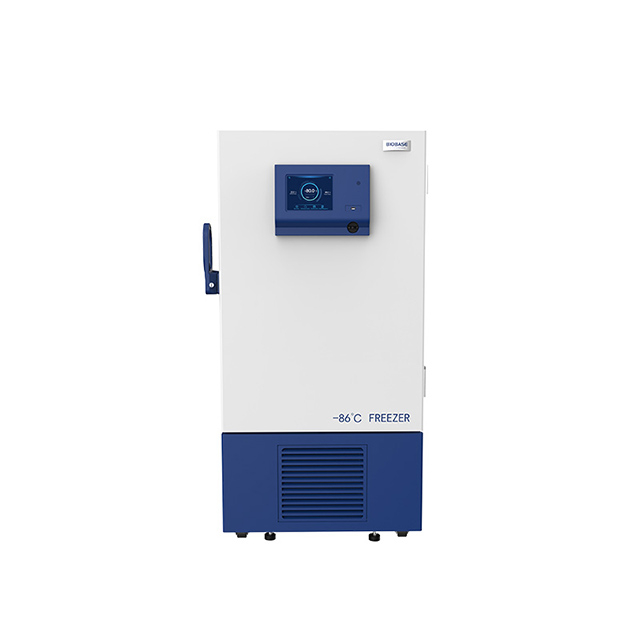

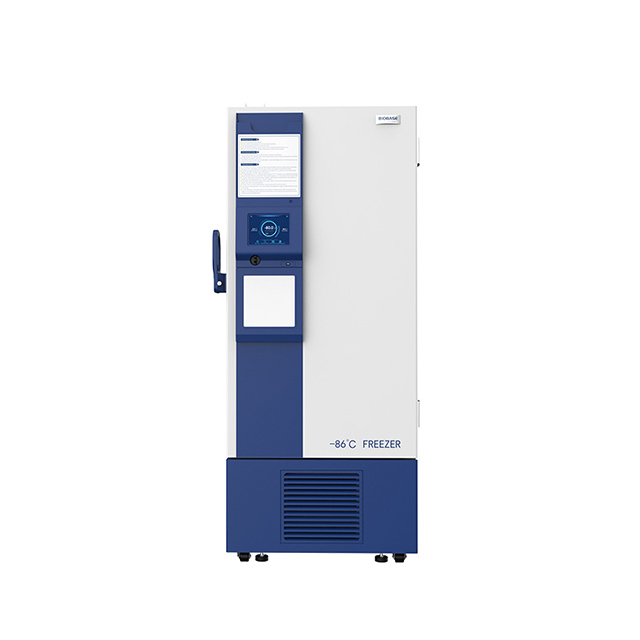

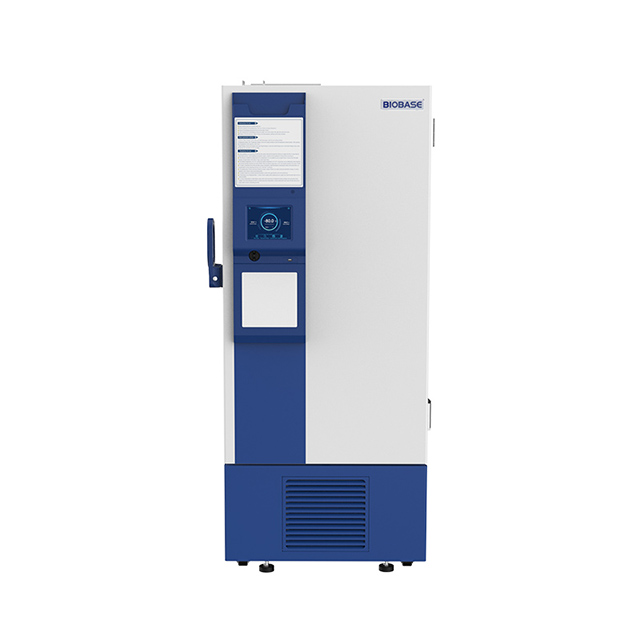

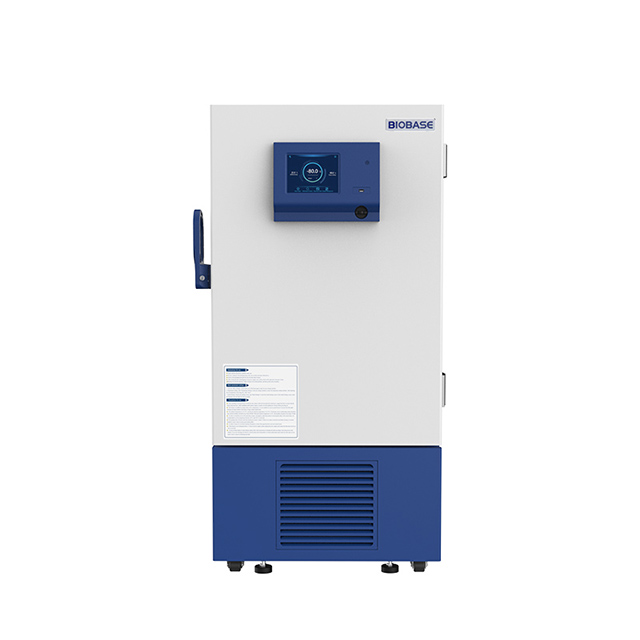

BDF-86V168T BDF-86V348T
BIOBASE

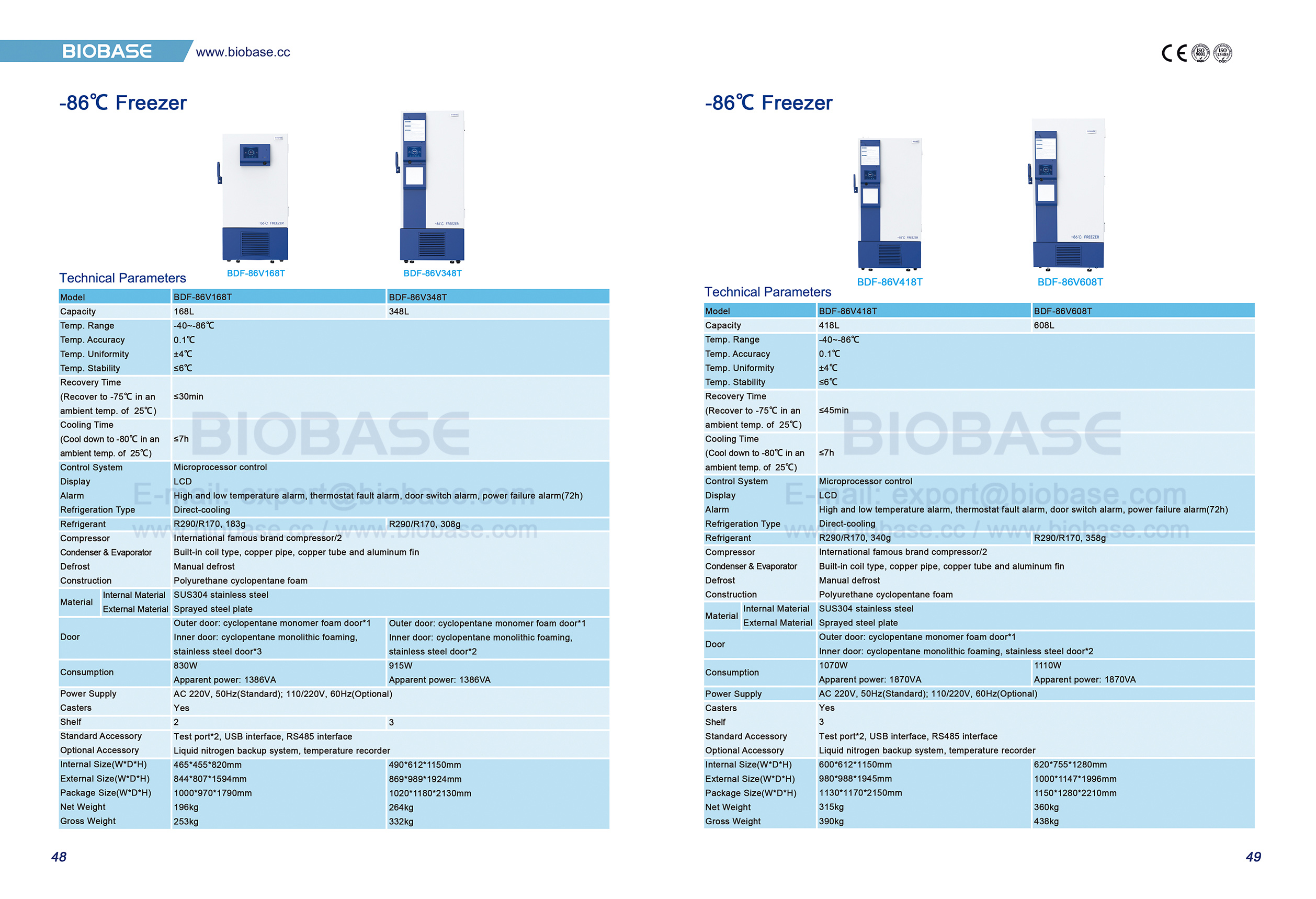

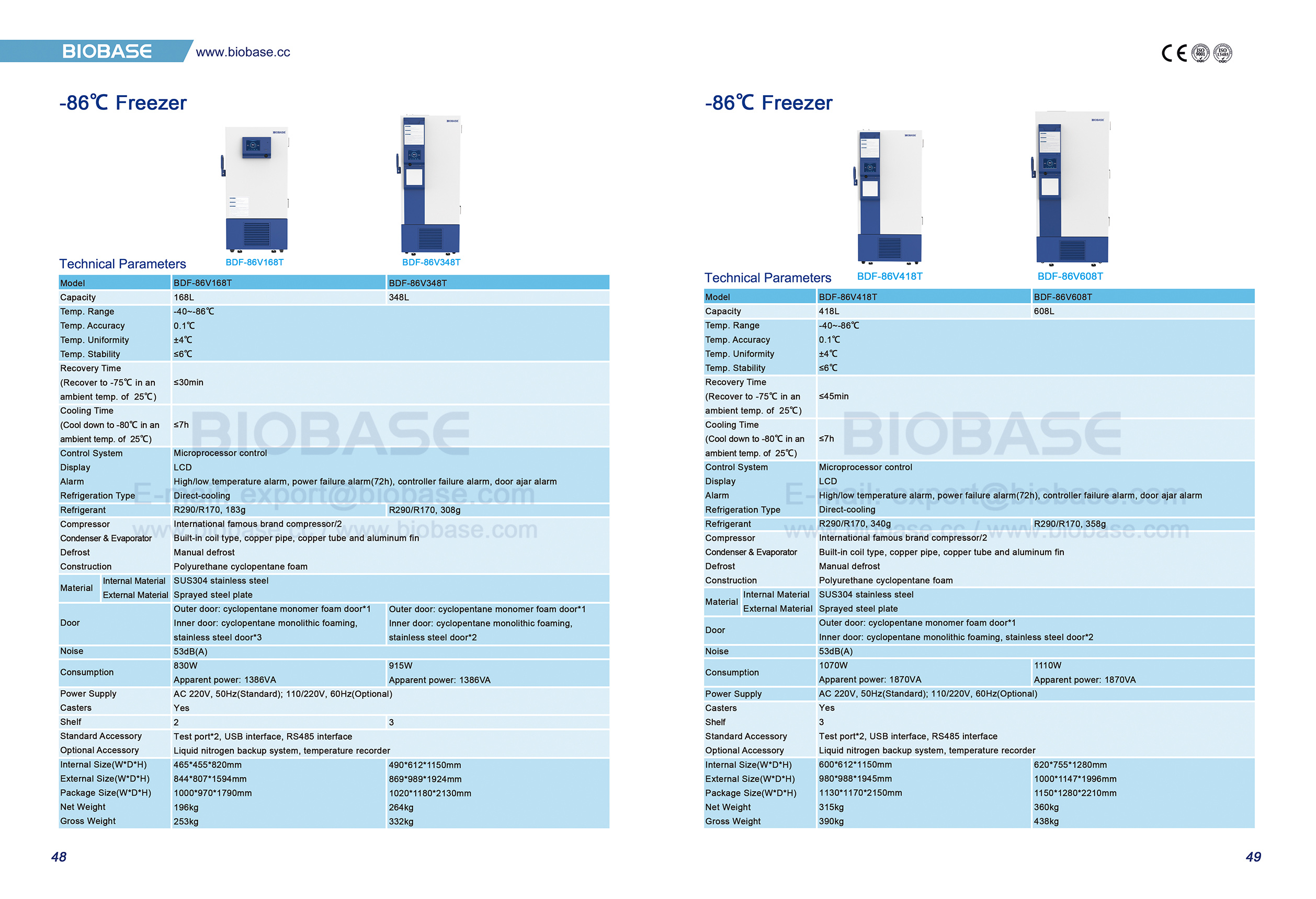

Technical Parameters:
Model | BDF-86V168T | BDF-86V348T | ||
Capacity | 168L | 348L | ||
Temp. Range | -40~-86℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ±4℃ | |||
Temp. Stability | ≤6℃ | |||
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤30min | |||
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤7h | |||
Control System | Microprocessor control | |||
Display | LCD | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R290/R170, 265g | R290/R170, 308g | ||
Compressor | International famous brand compressor/2 | |||
Condenser&Evaporator | Built-in coil type, copper pipe, copper tube and aluminum fin | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | SUS304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 | ||
Consumption | 830W Apparent power: 1386VA | 915W Apparent power: 1386VA | ||
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | |||
Casters | Yes | |||
Shelf | 2 | 3 | ||
Standard Accessory | Test port*2, USB interface, RS485 interface | |||
Optional Accessory | Liquid nitrogen backup system, temperature recorder | |||
Internal Size(W*D*H) | 465*455*820mm | 490*612*1150mm | ||
External Size(W*D*H) | 844*807*1594mm | 869*989*1924mm | ||
Package Size(W*D*H) | 1000*970*1790mm | 1020*1180*2130mm | ||
Net Weight | 196kg | 264kg | ||
Gross Weight | 253kg | 332kg | ||
Technical Parameters:
Model | BDF-86V168T | BDF-86V348T | ||
Capacity | 168L | 348L | ||
Temp. Range | -40~-86℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ±4℃ | |||
Temp. Stability | ≤6℃ | |||
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤30min | |||
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤7h | |||
Control System | Microprocessor control | |||
Display | LCD | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R290/R170, 265g | R290/R170, 308g | ||
Compressor | International famous brand compressor/2 | |||
Condenser&Evaporator | Built-in coil type, copper pipe, copper tube and aluminum fin | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | SUS304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 | ||
Consumption | 830W Apparent power: 1386VA | 915W Apparent power: 1386VA | ||
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | |||
Casters | Yes | |||
Shelf | 2 | 3 | ||
Standard Accessory | Test port*2, USB interface, RS485 interface | |||
Optional Accessory | Liquid nitrogen backup system, temperature recorder | |||
Internal Size(W*D*H) | 465*455*820mm | 490*612*1150mm | ||
External Size(W*D*H) | 844*807*1594mm | 869*989*1924mm | ||
Package Size(W*D*H) | 1000*970*1790mm | 1020*1180*2130mm | ||
Net Weight | 196kg | 264kg | ||
Gross Weight | 253kg | 332kg | ||
