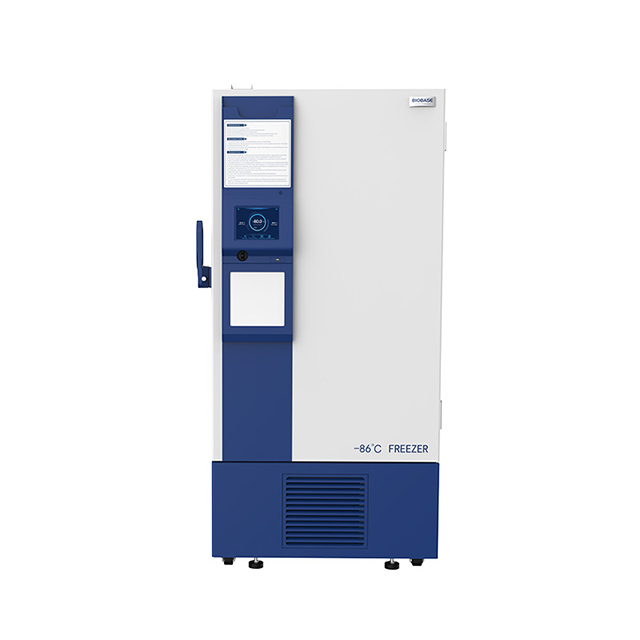

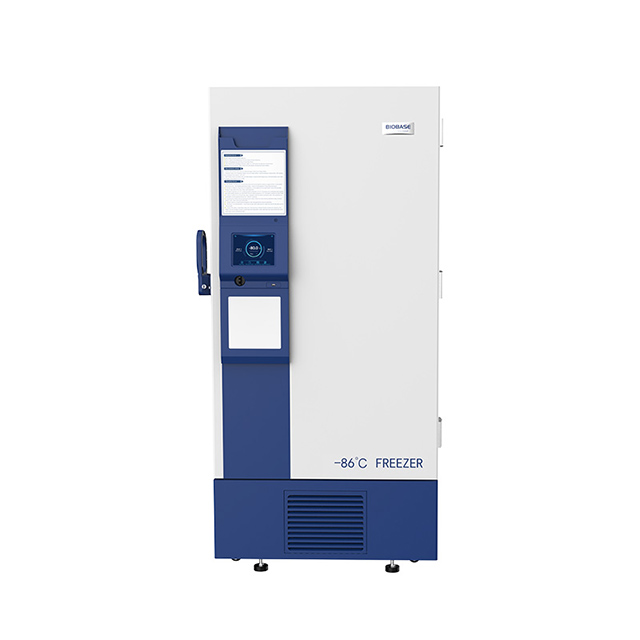

BDF-86V418T BDF-86V608T
BIOBASE
Technical Parameters:
Model | BDF-86V418T | BDF-86V608T | ||
Capacity | 418L | 608L | ||
Temp. Range | -40~-86℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ±4℃ | |||
Temp. Stability | ≤6℃ | |||
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤45min | |||
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤7h | |||
Control System | Microprocessor control | |||
Display | LCD | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R290/R170, 340g | R290/R170, 358g | ||
Compressor | International famous brand compressor/2 | |||
Condenser&Evaporator | Built-in coil type, copper pipe, copper tube and aluminum fin | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | SUS304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 | |||
Consumption | 1070W Apparent power: 1870VA | 1110W Apparent power: 1870VA | ||
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | |||
Casters | Yes | |||
Shelf | 3 | |||
Standard Accessory | Test port*2, USB interface, RS485 interface | |||
Optional Accessory | Liquid nitrogen backup system, temperature recorder | |||
Internal Size(W*D*H) | 600*612*1150mm | 620*755*1280mm | ||
External Size(W*D*H) | 980*988*1945mm | 1000*1147*1996mm | ||
Package Size(W*D*H) | 1130*1170*2150mm | 1150*1280*2210mm | ||
Net Weight | 315kg | 360kg | ||
Gross Weight | 345kg | 390kg | ||
