Introduction:
The -86 ℃ freezer is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.
| Quantity: | |
|---|---|

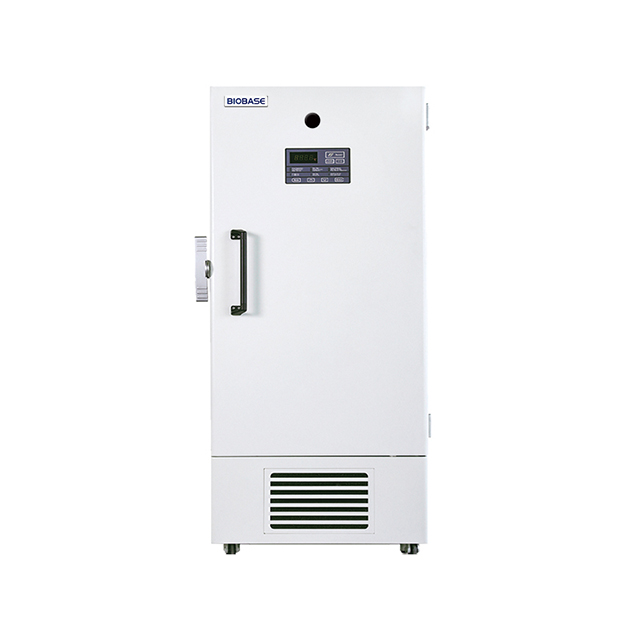

BDF-86V588 BDF-86V728 BDF-86V838
BIOBASE

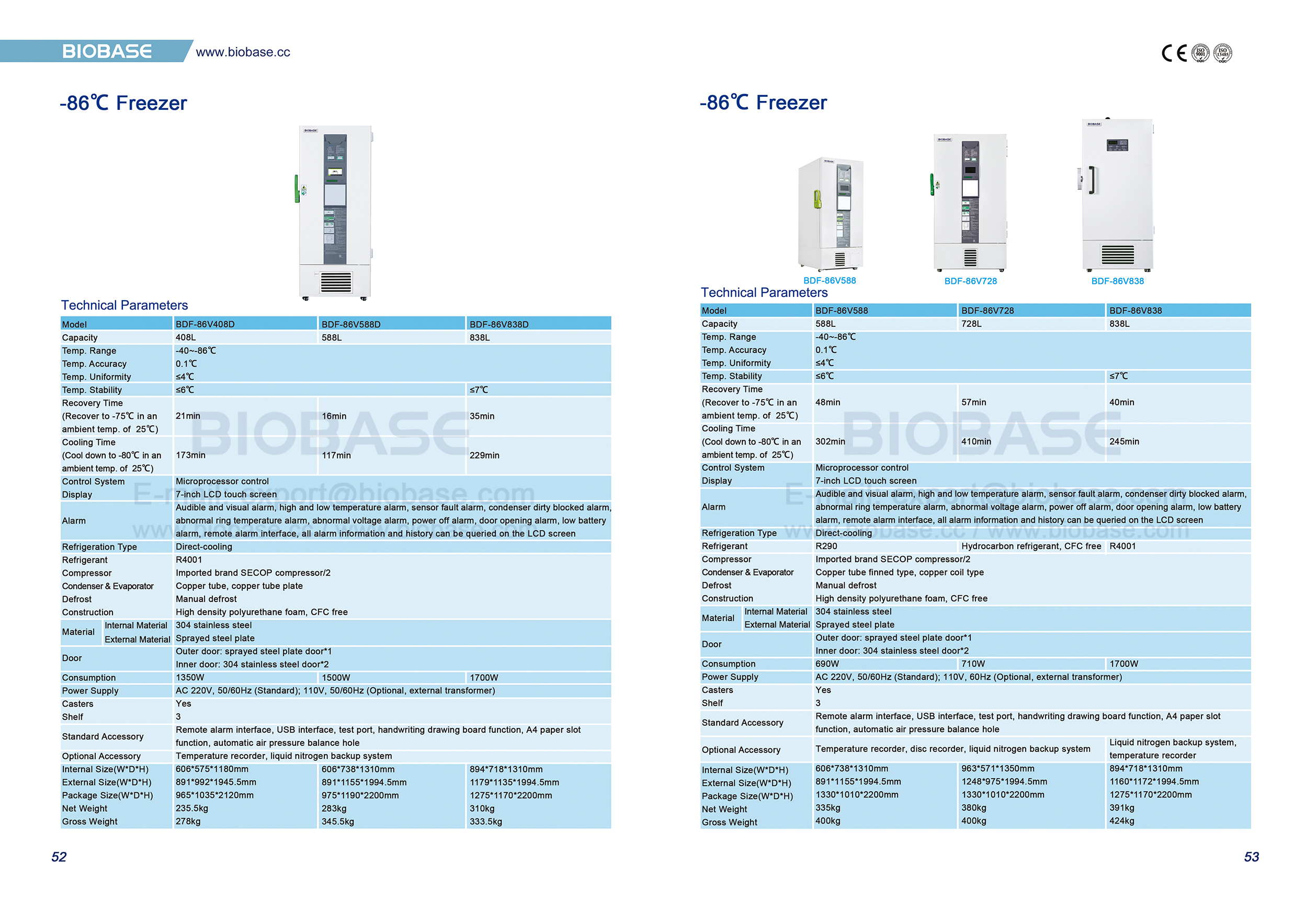

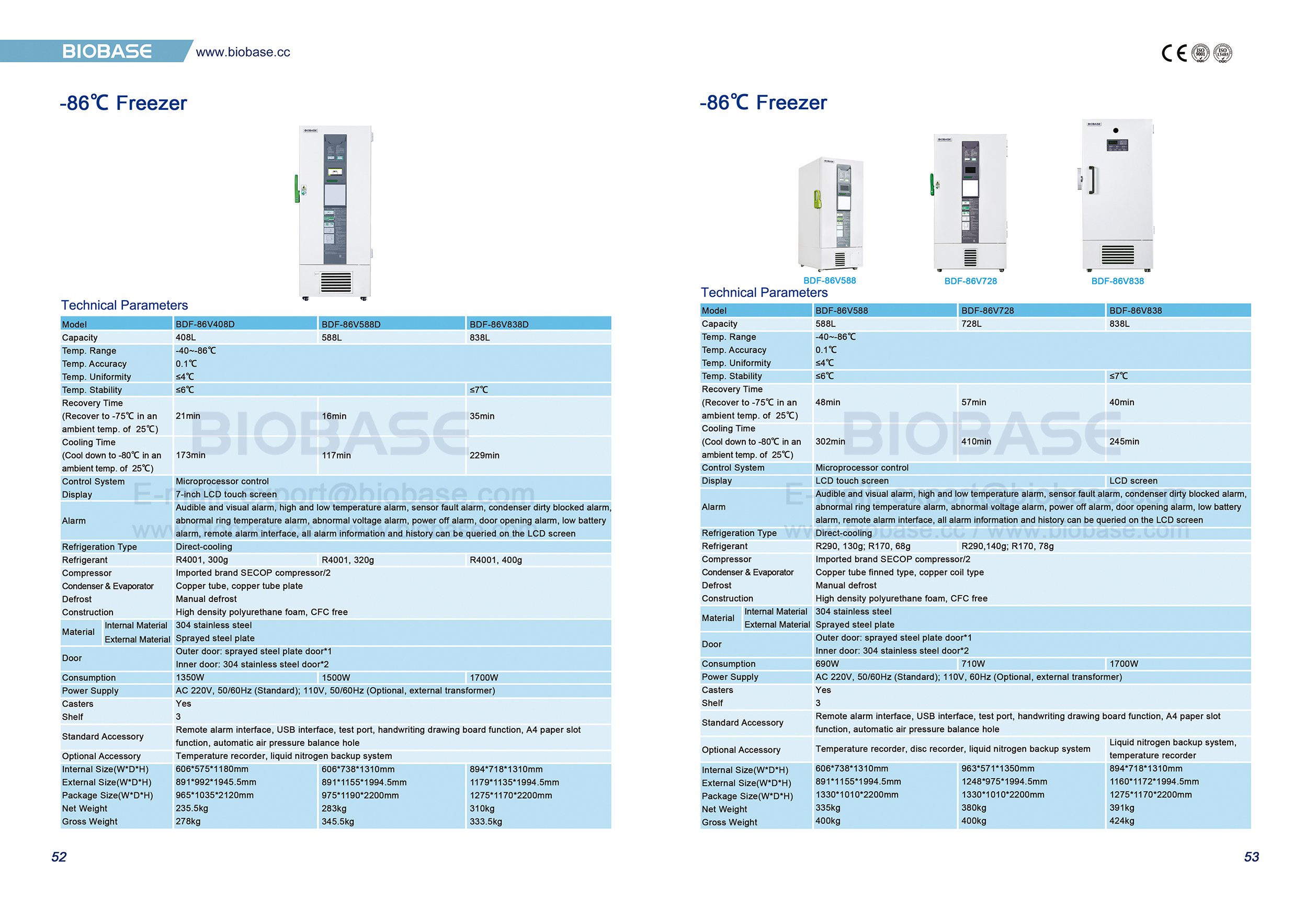

Technical Parameters:
Model | BDF-86V588 | BDF-86V728 | BDF-86V838 | |
Capacity | 588L | 728L | 838L | |
Temp. Range | -40~-86℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤4℃ | |||
Temp. Stability | ≤6℃ | ≤7℃ | ||
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | 48min | 57min | 40min | |
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | 302min | 410min | 245min | |
Control System | Microprocessor control | |||
Display | LCD touch screen | LCD screen | ||
Alarm | Audible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screen | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R290 | Hydrocarbon refrigerant, CFC free | R4001 | |
Compressor | Imported brand SECOP compressor/2 | |||
Condenser & Evaporator | Copper tube finned type, copper coil type | |||
Defrost | Manual defrost | |||
Construction | High density polyurethane foam, CFC free | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: Sprayed steel plate door*1 Inner door: 304 stainless steel door*2 | |||
Consumption | 690W | 710W | 1700W | |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional, external transformer) | |||
Casters | Yes | |||
Shelf | 3 | |||
Standard Accessory | Remote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance hole | |||
Optional Accessory | Temperature recorder, disc recorder, liquid nitrogen backup system | Liquid nitrogen backup system, temperature recorder | ||
Internal Size(W*D*H) | 606*738*1310mm | 963*571*1350mm | 894*718*1310mm | |
External Size(W*D*H) | 891*1155*1994.5mm | 1248*975*1994.5mm | 1160*1172*1994.5mm | |
Package Size(W*D*H) | 1330*1010*2200mm | 1330*1010*2200mm | 1275*1170*2200mm | |
Net Weight | 335kg | 380kg | 391kg | |
Gross Weight | 400kg | 400kg | 424kg | |
