Introduction:
The -86 ℃ freezer is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.
| Quantity: | |
|---|---|
BDF-86V588 BDF-86V838 BDF-86V728
BIOBASE

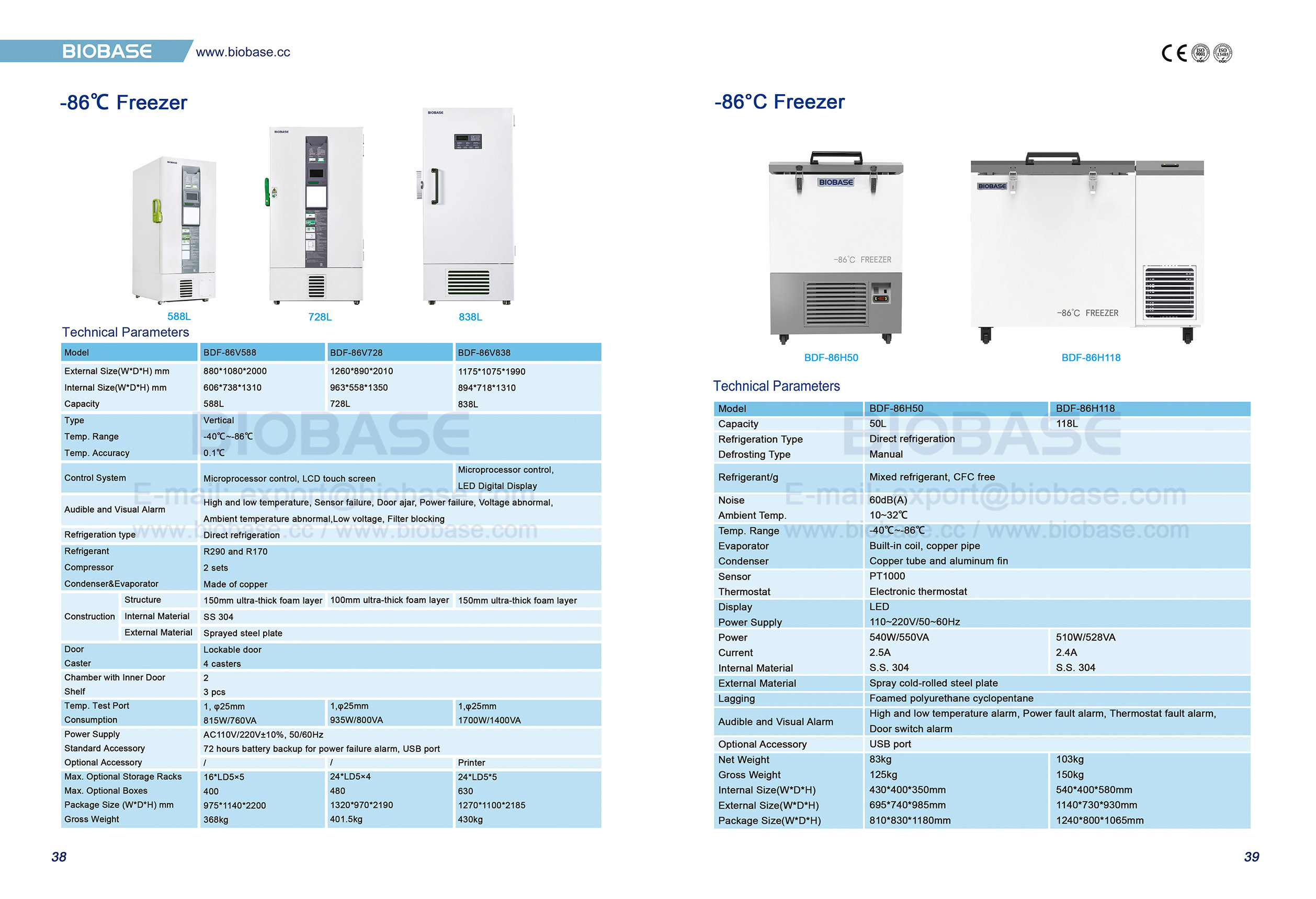

Technical Parameters:
Model | BDF-86V588 | BDF-86V728 | BDF-86V838 | |
External Size(W*D*H)mm | 880*1080*2000 | 1260*890"2010 | 1175*1075*1990 | |
Internal Size(W*D*H)mm | 606*738*1310 | 963*558*1350 | 894*718*1310 | |
Capacity | 588L | 728L | 838L | |
Type | Vertical | |||
Temp. Range | -40℃~-86℃ | |||
Temp. Accuracy | 0.1℃ | |||
Control System | Microprocessor control, LCD touch screen | Microprocessor control, LED digital display | ||
Audible and Visual Alarm | High and low temperature, Sensor failure, Door ajar, Power failure, Voltage abnormal, Ambient temperature abnormal, Low voltage, Filter blocking | |||
Refrigeration Type | Direct refrigeration | |||
Refrigerant | R290 and R170 | |||
Compressor | 2 sets | |||
Condenser&Evaporator | Made of copper | |||
Construction | Structure | 150mm ultra-thick foam layer | 100mm ultra-thick foam layer | 150mm ultra-thick foam layer |
Internal Material | SS 304 | |||
External Material | Sprayed steel plate | |||
Door | Lockable door | |||
Caster | 4 casters | |||
Chamber with Inner Door | 2 | |||
Shelf | 3pcs | |||
Temp.Test Port | 1, φ25mm | 1, φ25mm | 1, φ25mm | |
Consumption | 815W/760VA | 935W/800VA | 1700W/1400VA | |
Power Supply | AC110V/220V±10%, 50/60Hz | |||
Standard Accessory | 72 hours battery backup for power failure alarm, USB port | |||
Optional Accessory | / | / | Printer | |
Max.Optional Storage Racks | 16*LD5*5 | 24*LD5*4 | 18*LD7*5 | |
Max. Optional Boxes | 400 | 480 | 630 | |
Package Size(W*D*H)mm | 975*1140*2200 | 1320*970*2190 | 1270*1100*2185 | |
Gross Weight(kg) | 368 | 401.5 | 430 | |
