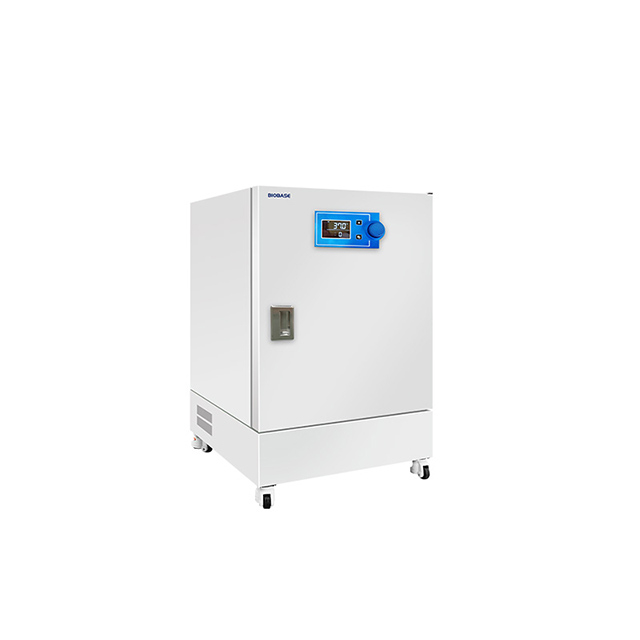

BJPX-H50N BJPX-H105N BJPX-H155N
BIOBASE
Features:
1. Outer material: cold-rolled steel plate surface sprayed with plastic; internal material: SUS304 stainless steel.
2. The electric heating plate heats quickly, with a uniquely designed air duct circulation system,
3. P.I.D temperature controller, continuous operation or timing operation: 0~9999min, precise temperature control, and small temperature fluctuation.
4. Parameter memory function: In cold start or hot start power-on mode, the interrupted power supply will automatically resume operation after restoration.
5. It has a safety monitoring function, and the temperature protection value can be set, and it will automatically disconnect when an abnormality occurs.
6. An external independent temperature protector provides an extra layer of safety protection and can avoid experimental accidents.
7. Equipped with a test hole.
8. USB data recording serial port is convenient for recording and storing experimental data.

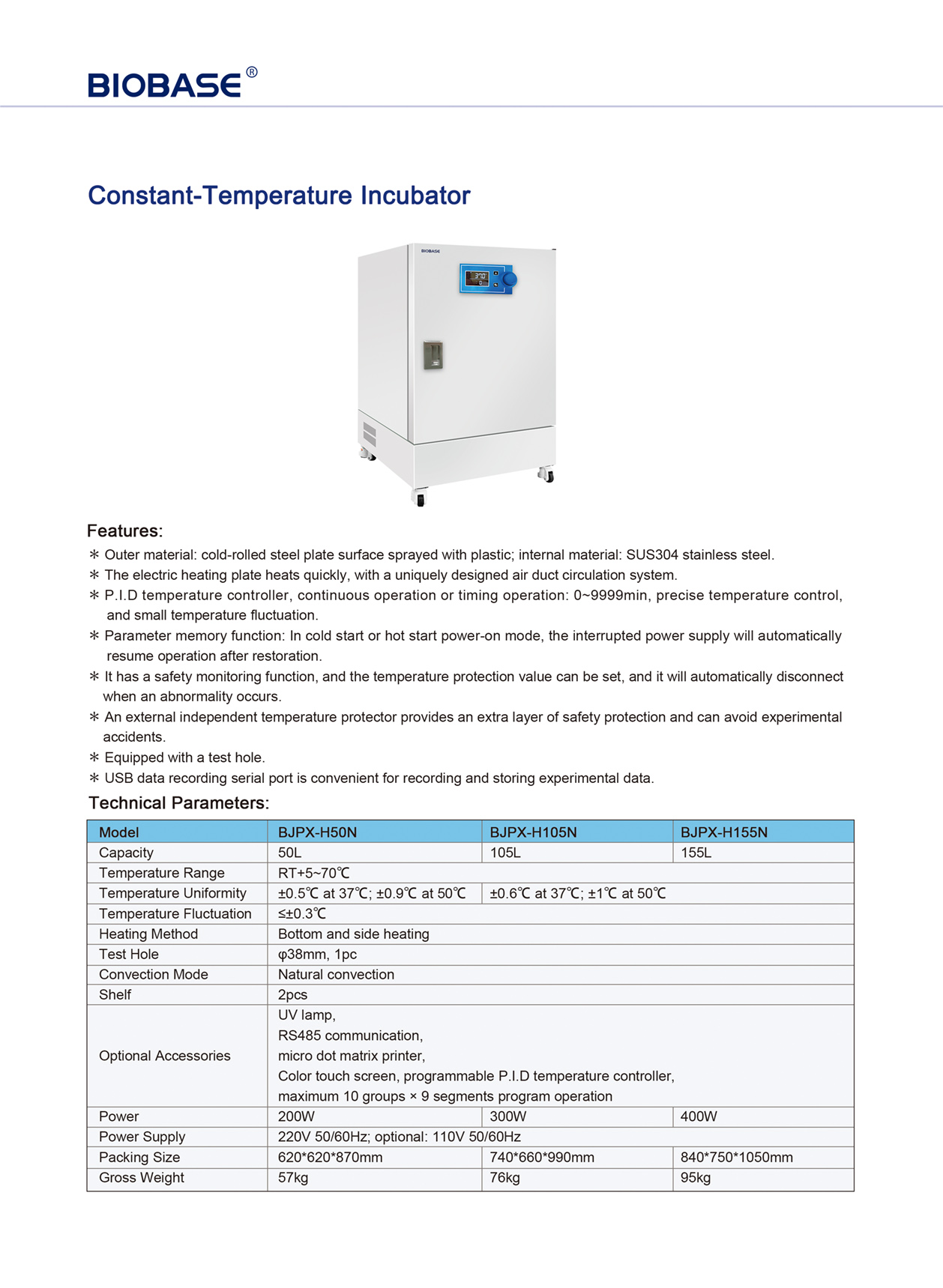

Technical Parameters:
Model | BJPX-H50N | BJPX-H105N | BJPX-H155N |
Capacity | 50L | 105L | 155L |
Temperature Range | RT+5~70℃ | ||
Temperature Uniformity | ±0.5℃ at 37℃; ±0.9℃ at 50℃ | ±0.6℃ at 37℃; ±1℃ at 50℃ | |
Temperature Fluctuation | ≤±0.3℃ | ||
Heating Method | Bottom and side heating | ||
Test Hole | φ38mm, 1pc | ||
Convection Mode | Natural convection | ||
Shelf | 2pcs | ||
Optional Accessories | UV lamp, RS485 communication, micro dot matrix printer, Color touch screen, programmable P.I.D temperature controller, maximum 10 groups × 9 segments program operation | ||
Power | 200W | 300W | 400W |
Power Supply | 220V 50/60Hz; optional: 110V 50/60Hz | ||
Packing Size | 620*620*870mm | 740*660*990mm | 840*750*1050mm |
Gross Weight | 57kg | 76kg | 95kg |
