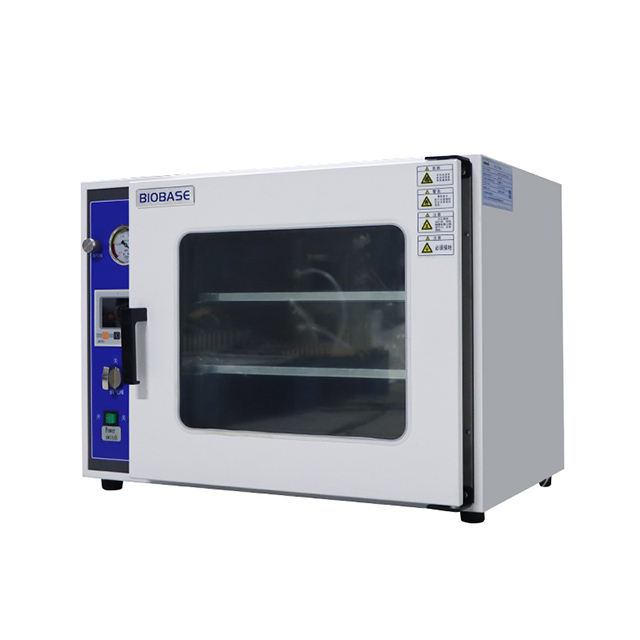

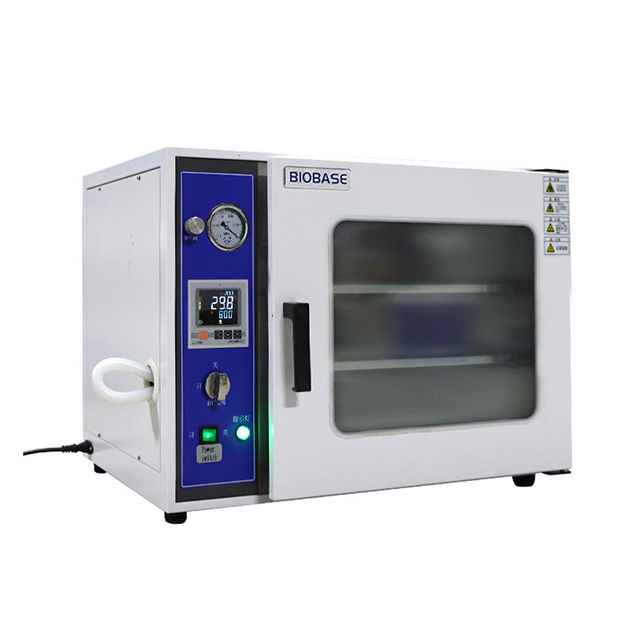

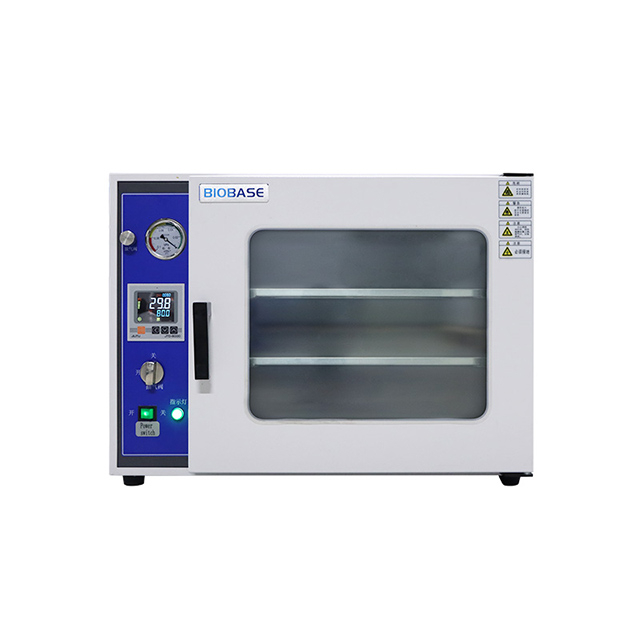

BJPX-ZK25A BJPX-ZK50A BJPX-ZK25B BJPX-ZK50B
BIOBASE
Features:
1. The housing is made of cold-rolled steel plate with electrostatic spray coating, and the inner chamber has rounded corners for easy cleaning.
2. The door and chamber are sealed with a specially designed silicone gasket to maintain vacuum, while allowing easy opening in non-vacuum conditions.
3. The temperature control system uses a microcomputer PID design with an intelligent color LCD display, providing precise temperature regulation, timing, and over-temperature alarm functions.
4. The double-layered glass door allows clear observation of items inside the chamber.
Technical Parameters:
Model | BJPX-ZK25A | BJPX-ZK50A | BJPX-ZK25B | BJPX-ZK50B |
Capacity | 25L | 50L | 25L | 50L |
Temp. Range | RT+10~250℃ | |||
Temp. Resolution | 0.1℃ | |||
Vacuum Degree | ＜133Pa | |||
Working Chamber Material | 201 stainless steel | 304 stainless steel | ||
Standard Accessory | Shelf*2, vacuum tube | |||
Optional Accessory | Vacuum pump: 2XZ-2(AC220V, 50Hz; 220V, 60Hz; 110V, 60Hz), printer, RS485 interface, remote control function, USB interface, programmable temperature controller | |||
Consumption | 600W | 1400W | 600W | 1400W |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | |||
Internal Size(W*D*H) | 300*300*275mm | 415*370*345mm | 300*300*275mm | 415*370*345mm |
External Size(W*D*H) | 595*455*455mm | 720*555*535mm | 595*455*455mm | 720*555*535mm |
Package Size(W*D*H) | 670*530*550mm | 770*630*620mm | 670*530*550mm | 770*630*620mm |
Net Weight | 40kg | 59kg | 40kg | 59kg |
Gross Weight | 45kg | 65kg | 45kg | 65kg |
Features:
1. The housing is made of cold-rolled steel plate with electrostatic spray coating, and the inner chamber has rounded corners for easy cleaning.
2. The door and chamber are sealed with a specially designed silicone gasket to maintain vacuum, while allowing easy opening in non-vacuum conditions.
3. The temperature control system uses a microcomputer PID design with an intelligent color LCD display, providing precise temperature regulation, timing, and over-temperature alarm functions.
4. The double-layered glass door allows clear observation of items inside the chamber.
Technical Parameters:
Model | BJPX-ZK25A | BJPX-ZK50A | BJPX-ZK25B | BJPX-ZK50B |
Capacity | 25L | 50L | 25L | 50L |
Temp. Range | RT+10~250℃ | |||
Temp. Resolution | 0.1℃ | |||
Vacuum Degree | ＜133Pa | |||
Working Chamber Material | 201 stainless steel | 304 stainless steel | ||
Standard Accessory | Shelf*2, vacuum tube | |||
Optional Accessory | Vacuum pump: 2XZ-2(AC220V, 50Hz; 220V, 60Hz; 110V, 60Hz), printer, RS485 interface, remote control function, USB interface, programmable temperature controller | |||
Consumption | 600W | 1400W | 600W | 1400W |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | |||
Internal Size(W*D*H) | 300*300*275mm | 415*370*345mm | 300*300*275mm | 415*370*345mm |
External Size(W*D*H) | 595*455*455mm | 720*555*535mm | 595*455*455mm | 720*555*535mm |
Package Size(W*D*H) | 670*530*550mm | 770*630*620mm | 670*530*550mm | 770*630*620mm |
Net Weight | 40kg | 59kg | 40kg | 59kg |
Gross Weight | 45kg | 65kg | 45kg | 65kg |
