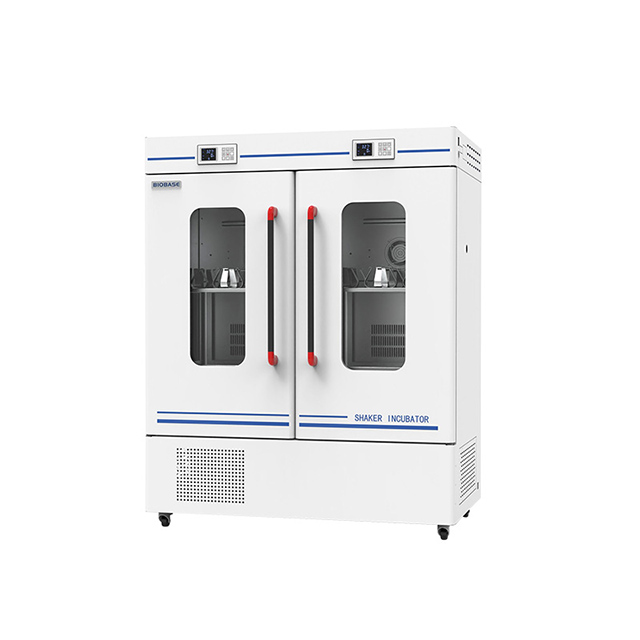

BJPX-SL220-LII
BIOBASE
Features:
1. Exterior material is powder-coated carbon steel, interior material is stainless steel.
2. The unique airflow duct design ensures superior temperature uniformity within the chamber, enabling more accurate temperature sensor data acquisition.
3. The temperature is controlled by a 'Super Fuzzy PID' system, featuring smaller overshoot, faster stabilization time, and better temperature control accuracy.
4. Features a brushless DC motor with PWM speed control. The acceleration control circuit ensures gentle startup, smooth acceleration, and safe handling of experimental samples.
5. Three-dimensional biased three-wheel drive mechanism provides exceptionally smooth, stable, durable, and reliable operation.
6. The outer door utilizes insulated tempered electric heating glass that effectively prevents glass fogging and condensation around the door frame.
7. Our proprietary silicone sealing strip, made from eco-friendly silicone material, provides superior contact with the chamber surface for enhanced sealing and improved thermal insulation performance.
Technical Parameters:
Model | BJPX-SL220-LII |
Capacity | 456L |
Temperature Control Range | 4~60℃ |
Temperature Control Accuracy | 0.1℃ |
Temperature Uniformity | ≤±1℃(@37℃) |
Temperature Fluctuation | ≤±0.5℃ |
Ambient Temperature | 15~35℃ |
Timing Range | 0~9999min/h |
Control Mode | PID microcomputer control |
Display | LCD display |
Circulation Mode | Forced convection |
Oscillation Mode | Rotary shaking |
Speed Range | 30~300rpm |
Speed Accuracy | ±1rpm |
Swing Amplitude of The Plate | φ26mm |
Refrigerant | R290/150g |
Standard Capacity | Capacity per column: /2000ml*6 |

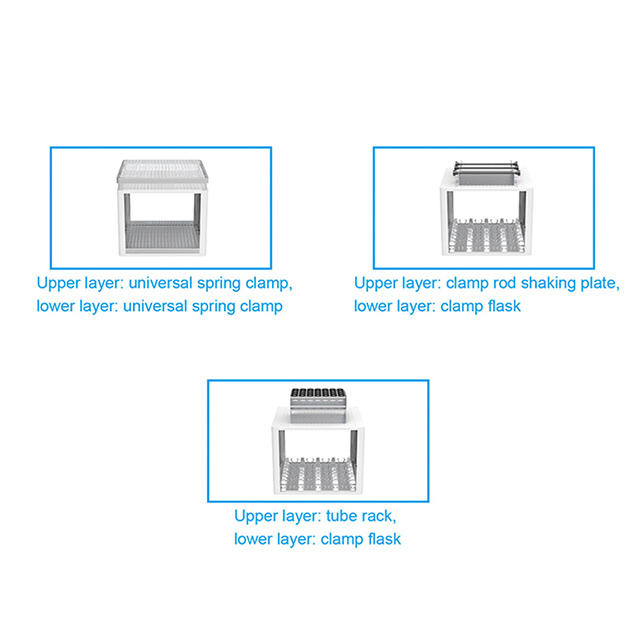

Max. Capacity | Upper layer: Clamp flask: 100ml*72/250ml*50/500ml*32/1000ml*18/2000ml*16 Lower layer: Clamp flask: 100ml*48/250ml*40/500ml*24/1000ml*18/2000ml*8 Tube rack*8 96-well plate*48 Clamp rod shaking plate*4 |
Defrost Function | Automatic defrosting |
Consumption | 2000W |
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional) |
Shelf | 503*463mm*4 |
Standard Accessory | UV light*2, LED light*2 |
Internal Size(W*D*H) | 558*504*813mm(Per column) |
External Size(W*D*H) | 1303*784*1621mm |
Package Size(W*D*H) | 1450*980*1750mm |
Net Weight | 506kg |
Gross Weight | 570kg |
