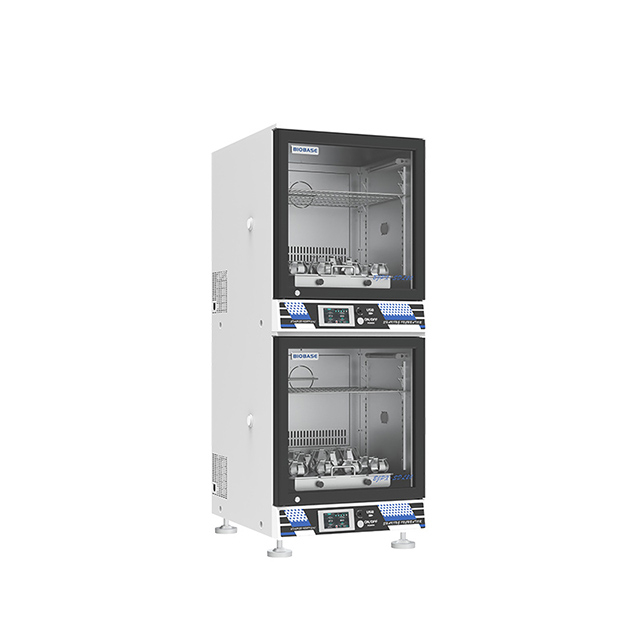

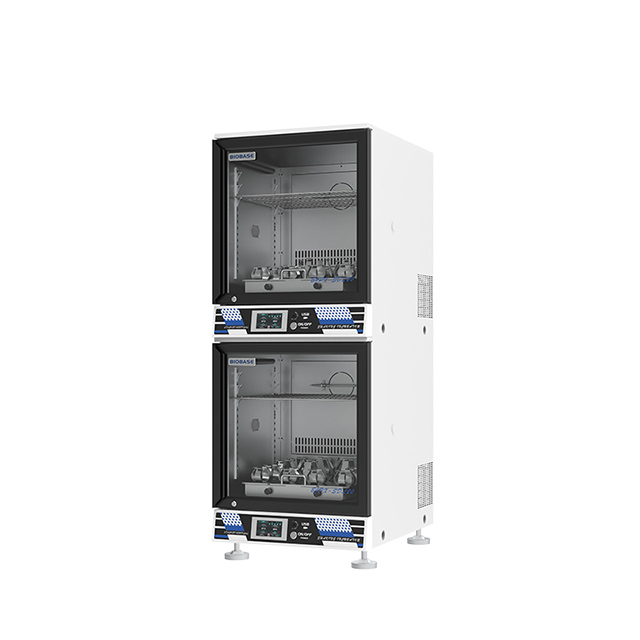

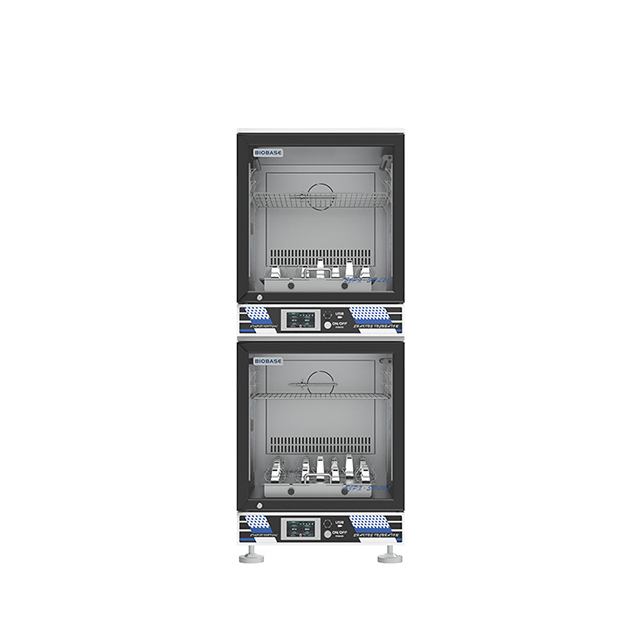

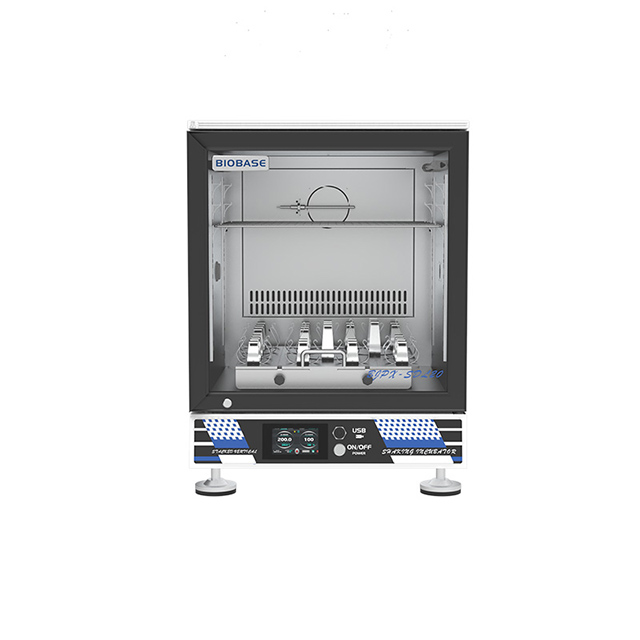

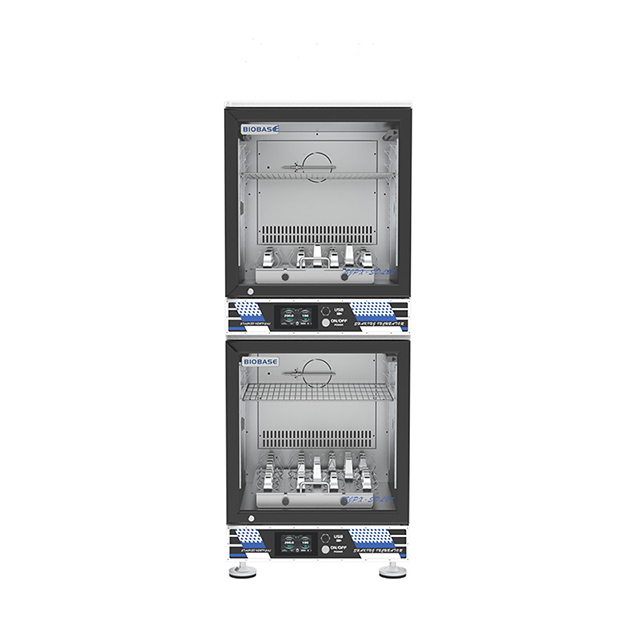

BJPX-SDL10 BJPX-SDL20
BIOBASE
Features:
1. Brushless DC motor, low noise, lasting operation.
2. 5 inch touch screen, clear and intuitive interface.
3. Run parameter encryption lock, parameter memory function.
4. With power failure recovery function.
5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply.
6. With USB data export function to achieve data traceability.
7. With ultraviolet disinfection function.
8. Standard equipped with LED light, open the door of the box light automatically open.
Technical Parameters:
Model | BJPX-SDL10 | BJPX-SDL20 |
Capacity(L) | 155 | |
Temp. Sensor | PT100 | |
Temp. Range | RT+5~60℃ | 4~60℃ |
Temp. Fluctuation | ≤±0.5℃ | |
Temp. Uniformity | ≤±1℃(37℃） | |
Temp. Precision | 0.1℃ | |
Timing Range | 0~999min | |
Controller | PID | |
Display | 5-inch touch screen | |
Circulation Mode | Forced convection | |
Shaking Mode | Rotary shaking | |
Drive Mode | Single axis balanced drive type | |
Vibration Range | Φ26mm | |
Rotating Speed | 30~300r/min | |
Rotating Accuracy | ±1r/min | |
Shaking Plate Size | 460*450mm | |
Max. Capacity | Single layer shaker plate | 250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*4(Flask clamp) Tube rack*2 96-well plate*12 Clamping rod shaking plate*1 |
Double layer shaker plate | Upper layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp) Lower layer: Universal spring clamp | |
| Standard. Capacity | 500ml*14(single layer) | |
Lighting Mode | LED lamp*1 | |
Sterilization Mode | UV lamp*1 | |
Refrigerant | / | R290 |
Ambient Temp. | 15~35℃ | |
Internal Material | 304 stainless steel | |
External Material | Cold rolled steel sheet | |
Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm | |
Consumption | 1200W | 1800W |
Power Supply | Standard: AC200~240V, 50/60Hz Optional: AC110V, 50/60Hz | |
Internal Size | 560*500*555mm(per unit) | |
External Size | 650*840*810mm(per unit) | |
Package Size | 775*1005*1070mm(per unit) | |
Net Weight | 195kg(per unit) | 215kg(per unit) |
Gross Weight | 225kg(per unit) | 245kg(per unit) |
Features:
1. Brushless DC motor, low noise, lasting operation.
2. 5 inch touch screen, clear and intuitive interface.
3. Run parameter encryption lock, parameter memory function.
4. With power failure recovery function.
5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply.
6. With USB data export function to achieve data traceability.
7. With ultraviolet disinfection function.
8. Standard equipped with LED light, open the door of the box light automatically open.
Technical Parameters:
Model | BJPX-SDL10 | BJPX-SDL20 |
Capacity(L) | 155 | |
Temp. Sensor | PT100 | |
Temp. Range | RT+5~60℃ | 4~60℃ |
Temp. Fluctuation | ≤±0.5℃ | |
Temp. Uniformity | ≤±1℃(37℃） | |
Temp. Precision | 0.1℃ | |
Timing Range | 0~999min | |
Controller | PID | |
Display | 5-inch touch screen | |
Circulation Mode | Forced convection | |
Shaking Mode | Rotary shaking | |
Drive Mode | Single axis balanced drive type | |
Vibration Range | Φ26mm | |
Rotating Speed | 30~300r/min | |
Rotating Accuracy | ±1r/min | |
Shaking Plate Size | 460*450mm | |
Max. Capacity | Single layer shaker plate | 250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*4(Flask clamp) Tube rack*2 96-well plate*12 Clamping rod shaking plate*1 |
Double layer shaker plate | Upper layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp) Lower layer: Universal spring clamp | |
| Standard. Capacity | 500ml*14(single layer) | |
Lighting Mode | LED lamp*1 | |
Sterilization Mode | UV lamp*1 | |
Refrigerant | / | R290 |
Ambient Temp. | 15~35℃ | |
Internal Material | 304 stainless steel | |
External Material | Cold rolled steel sheet | |
Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm | |
Consumption | 1200W | 1800W |
Power Supply | Standard: AC200~240V, 50/60Hz Optional: AC110V, 50/60Hz | |
Internal Size | 560*500*555mm(per unit) | |
External Size | 650*840*810mm(per unit) | |
Package Size | 775*1005*1070mm(per unit) | |
Net Weight | 195kg(per unit) | 215kg(per unit) |
Gross Weight | 225kg(per unit) | 245kg(per unit) |
