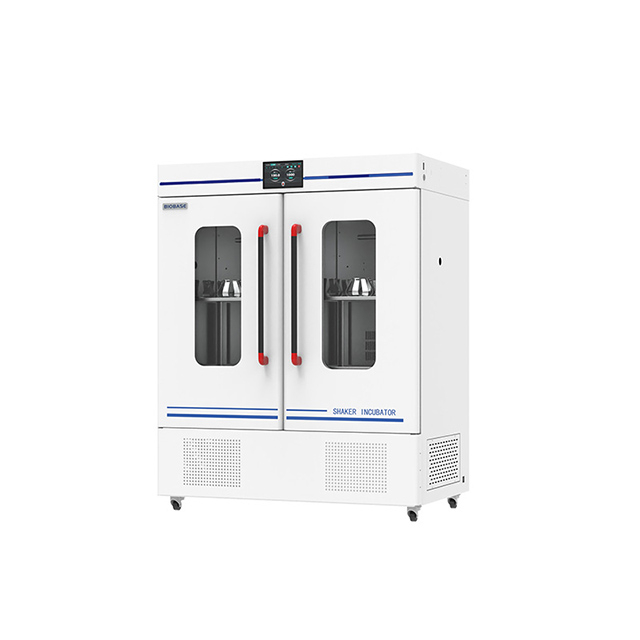

BJPX-SL220-LI
BIOBASE

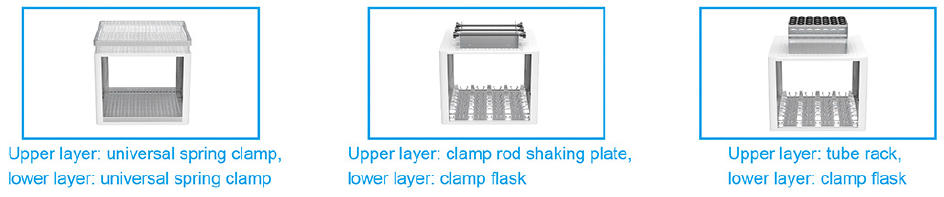

Clamp Specifications for Shaking Incubator:
Features:
1. Exterior material is powder-coated carbon steel, interior material is mirror finished stainless steel.
2. The temperature is controlled by a 'Super Fuzzy PID' system, featuring smaller overshoot, faster stabilization time, and better temperature control accuracy.
3. High-quality DC brushless motor features minimal vibration, low noise, high efficiency, maintenance-free operation, energy saving, and long-lasting performance. Equipped with single-axis balanced drive technology for ultra-low silent operation.
4. Equipped with over/under temperature alarms and abnormal shutdown alarms.
5. Automatic audio and visual alarms are triggered in case of shaker(Motor) malfunction or if the door is not properly closed.
Technical Parameters:
Model | BJPX-SL220-LI |
Capacity | 610L |
Temperature Control Range | 4~60℃ |
Temperature Control Accuracy | 0.1℃ |
Temperature Uniformity | ≤±1℃(@37℃) |
Temperature Fluctuation | ≤±0.5℃ |
Ambient Temperature | 15~35℃ |
Timing Range | 0~999min(h) |
Control Mode | PID microcomputer control |
Display | LCD touch screen |
Circulation Mode | Forced convection |
Oscillation Mode | Rotary shaking |
Speed Range | 30~300rpm |
Speed Accuracy | ±1rpm |
Swing Amplitude of The Plate | φ26mm |
Refrigerant | R290/150g |
Standard Capacity | 250ml*64/500ml*48(Default shipping configuration)/1000ml*32/2000ml*20/3000ml*16/5000*12 |
Max. Capacity | Clamp flask: 50ml*162/100ml*124/150ml*104/250ml*86/500ml*64/1000ml*32/2000ml*20/3000ml*16/5000ml*12 Tube rack*6 96-well plate*30 Clamp rod shaking plate*4 Horizontal thermostatic shaker spring plate*2 |
Defrost Function | Automatic defrosting |
Consumption | 1500W |
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional) |
Shelf | 970*460mm*2 |
Standard Accessory | UV light*1, LED light*1 |
Internal Size(W*D*H) | 1198*520*990mm |
External Size(W*D*H) | 1303*793*1564mm |
Package Size(W*D*H) | 1450*980*1750mm |
Net Weight | 550kg |
Gross Weight | 580kg |
Clamp Specifications for Shaking Incubator:Features:
1. Exterior material is powder-coated carbon steel, interior material is mirror finished stainless steel.
2. The temperature is controlled by a 'Super Fuzzy PID' system, featuring smaller overshoot, faster stabilization time, and better temperature control accuracy.
3. High-quality DC brushless motor features minimal vibration, low noise, high efficiency, maintenance-free operation, energy saving, and long-lasting performance. Equipped with single-axis balanced drive technology for ultra-low silent operation.
4. Equipped with over/under temperature alarms and abnormal shutdown alarms.
5. Automatic audio and visual alarms are triggered in case of shaker(Motor) malfunction or if the door is not properly closed.
Technical Parameters:
Model | BJPX-SL220-LI |
Capacity | 610L |
Temperature Control Range | 4~60℃ |
Temperature Control Accuracy | 0.1℃ |
Temperature Uniformity | ≤±1℃(@37℃) |
Temperature Fluctuation | ≤±0.5℃ |
Ambient Temperature | 15~35℃ |
Timing Range | 0~999min(h) |
Control Mode | PID microcomputer control |
Display | LCD touch screen |
Circulation Mode | Forced convection |
Oscillation Mode | Rotary shaking |
Speed Range | 30~300rpm |
Speed Accuracy | ±1rpm |
Swing Amplitude of The Plate | φ26mm |
Refrigerant | R290/150g |
Standard Capacity | 250ml*64/500ml*48(Default shipping configuration)/1000ml*32/2000ml*20/3000ml*16/5000*12 |
Max. Capacity | Clamp flask: 50ml*162/100ml*124/150ml*104/250ml*86/500ml*64/1000ml*32/2000ml*20/3000ml*16/5000ml*12 Tube rack*6 96-well plate*30 Clamp rod shaking plate*4 Horizontal thermostatic shaker spring plate*2 |
Defrost Function | Automatic defrosting |
Consumption | 1500W |
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional) |
Shelf | 970*460mm*2 |
Standard Accessory | UV light*1, LED light*1 |
Internal Size(W*D*H) | 1198*520*990mm |
External Size(W*D*H) | 1303*793*1564mm |
Package Size(W*D*H) | 1450*980*1750mm |
Net Weight | 550kg |
Gross Weight | 580kg |
