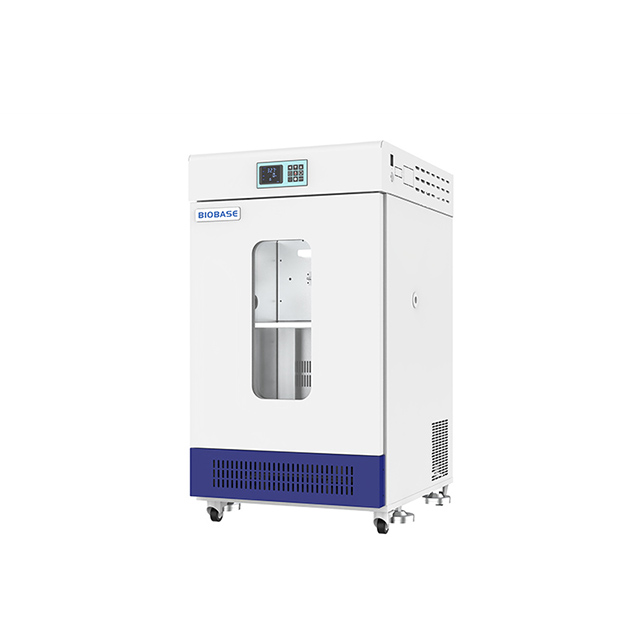

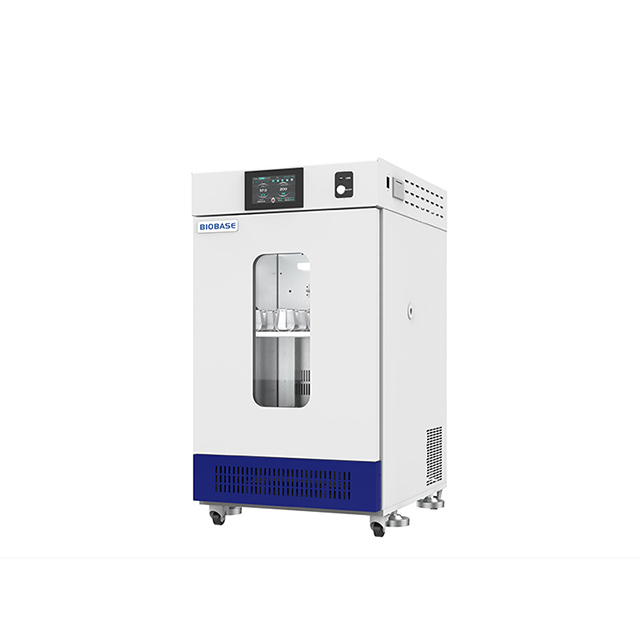

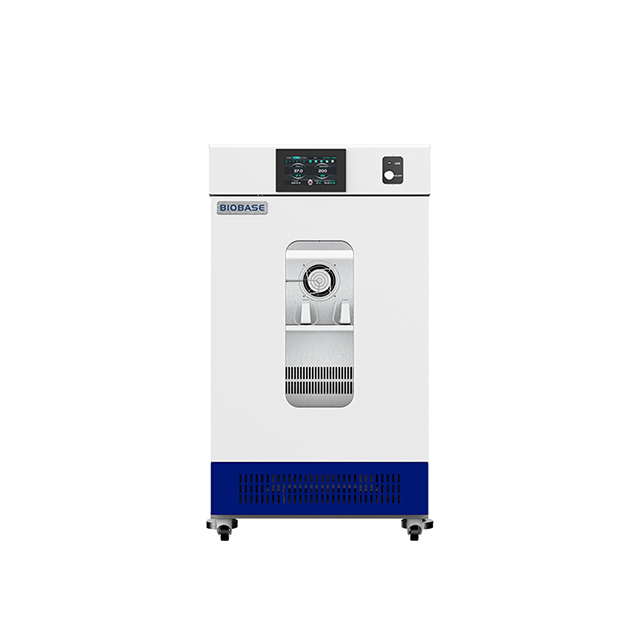

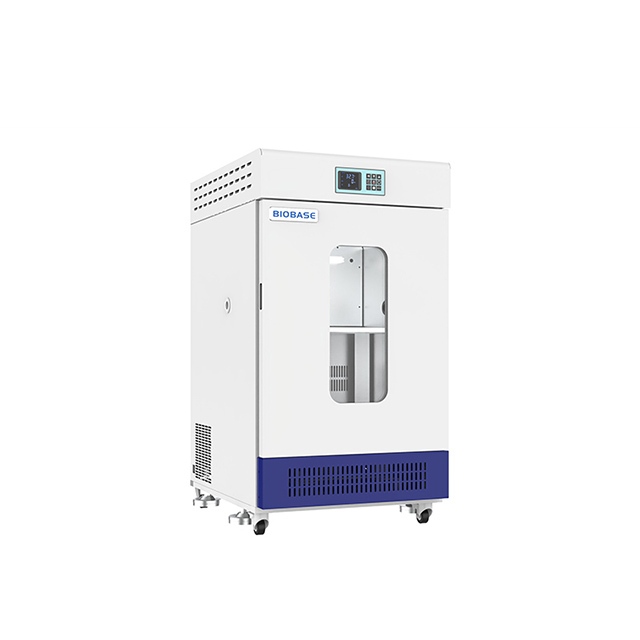

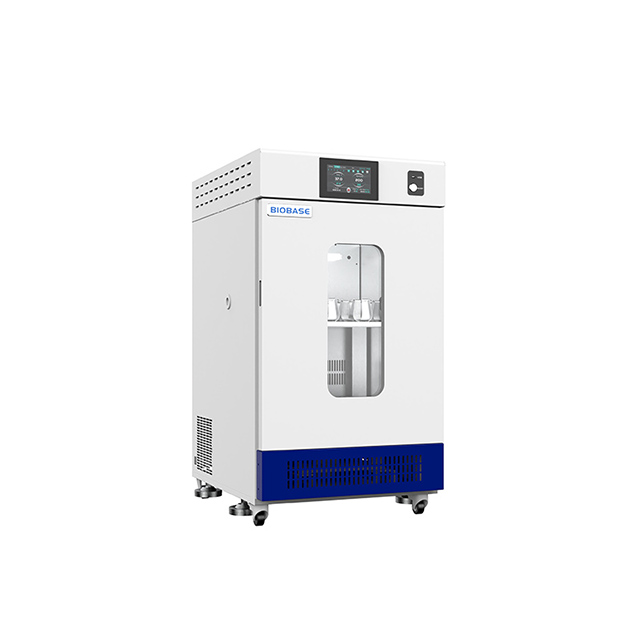

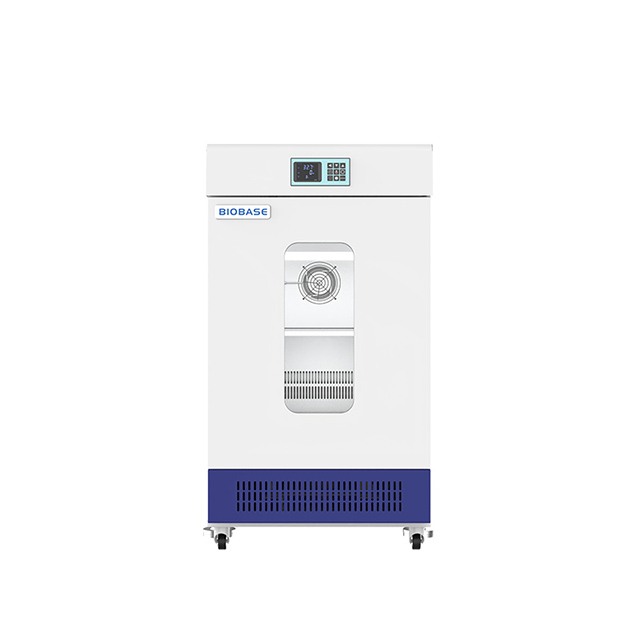

BJPX-SL10-L BJPX-SL10 BJPX-SL20-L BJPX-SL20
BIOBASE
Features:
1. Large hollow electric heating perspective window, anti-condensation, convenient for customers to check the running condition of the box.
2. The display interface has the functions of historical data, curve, alarm record can be queried, data can be saved and exported, password lock screen protection and Chinese and English switching.
3. Humanized design of the door stop function, to protect the safety of personnel.
4. Box padding foot height adjustable, standard universal casters, easy to move the box.
5. Professionally designed side air vents to meet the oxygen requirement of samples.

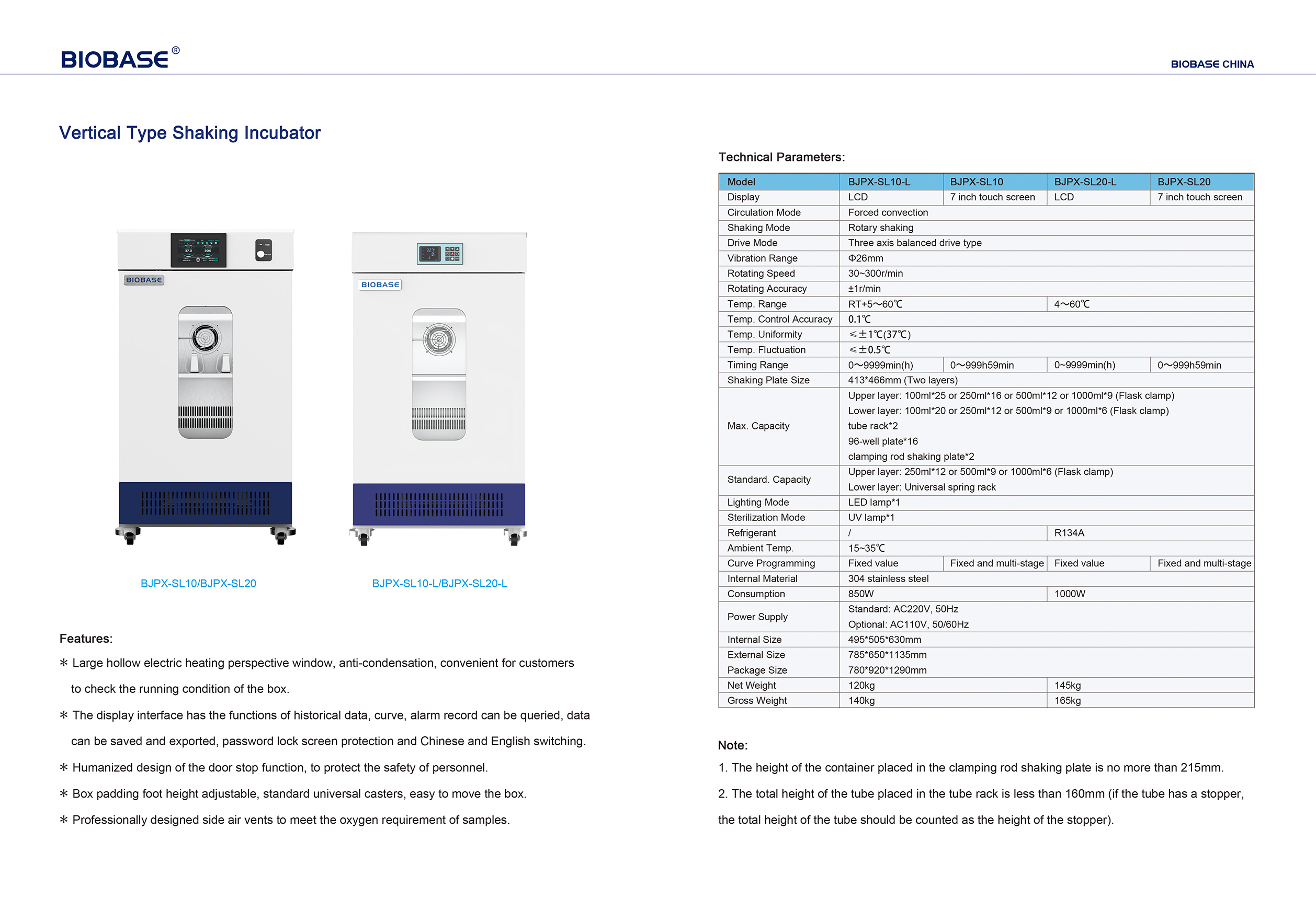

Technical Parameters:
Model | BJPX-SL10-L | BJPX-SL10 | BJPX-SL20-L | BJPX-SL20 | |
Display | LCD | 7 inch touch screen | LCD | 7 inch touch screen | |
Circulation Mode | Forced convection | ||||
Shaking Mode | Rotary shaking | ||||
Drive Mode | Three axis balanced drive type | ||||
Vibration Range | Φ26mm | ||||
Rotating Speed | 30~300r/min | ||||
Rotating Accuracy | ±1r/min | ||||
Temp. Range | RT+5~60℃ | 4~60℃ | |||
Temp. Control Accuracy | 0.1℃ | ||||
Temp. Uniformity | ≤±1℃(37℃） | ||||
Temp. Fluctuation | ≤±0.5℃ | ||||
Timing Range | 0~9999min（h） | 0~999h59min | 0~9999min（h） | 0~999h59min | |
Shaking Plate Size | 413*466mm (Two layers) | ||||
Max. Capacity | Upper layer: 100ml*25 or 250ml*16 or 500ml*12 or 1000ml*9 (Flask clamp) Lower layer: 100ml*20 or 250ml*12 or 500ml*9 or 1000ml*6 (Flask clamp) tube rack*2 96-well plate*16 clamping rod shaking plate*2 | ||||
Standard. Capacity | Upper layer: 100ml*16 or 250ml*12 or 500ml*9 or 1000ml*6 (Flask clamp) Lower layer: Universal spring rack | ||||
Lighting Mode | LED lamp*1 | ||||
Sterilization Mode | / | UV lamp*1 | |||
Refrigerant | / | R134A | |||
Ambient Temp. | 15~35℃ | ||||
Curve Programming | Fixed value | Fixed and multi-stage | Fixed value | Fixed and multi-stage | |
Internal Material | 304 stainless steel | ||||
Consumption | 850W | 1000W | |||
Power Supply | Standard: AC220V, 50Hz Optional: AC110V, 50/60Hz | ||||
Internal Size | 495*505*630mm | ||||
External Size | 785*650*1135mm | ||||
Package Size | 780*920*1290mm | ||||
Net Weight | 120kg | 145kg | |||
Gross Weight | 140kg | 165kg | |||
Note:
1. The height of the container placed in the clamping rod shaking plate is no more than 215mm.
2. The total height of the tube placed in the tube rack is less than 160mm (if the tube has a stopper, the total height of the tube should be counted as the height of the stopper).
