| Quantity: | |
|---|---|

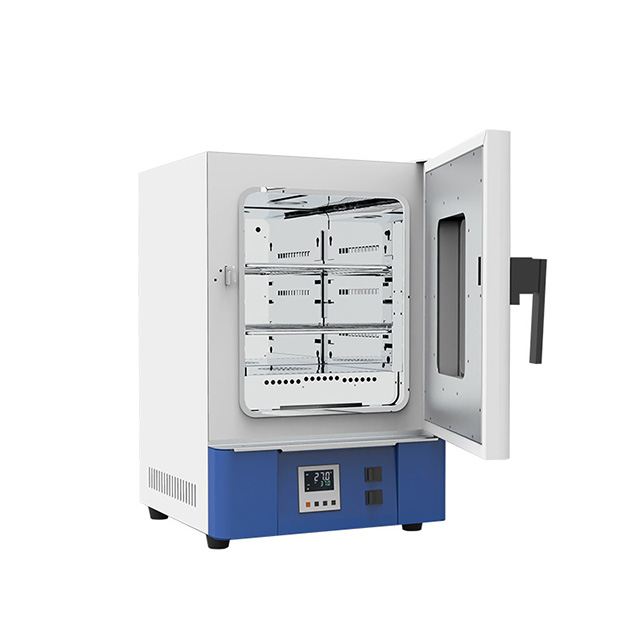

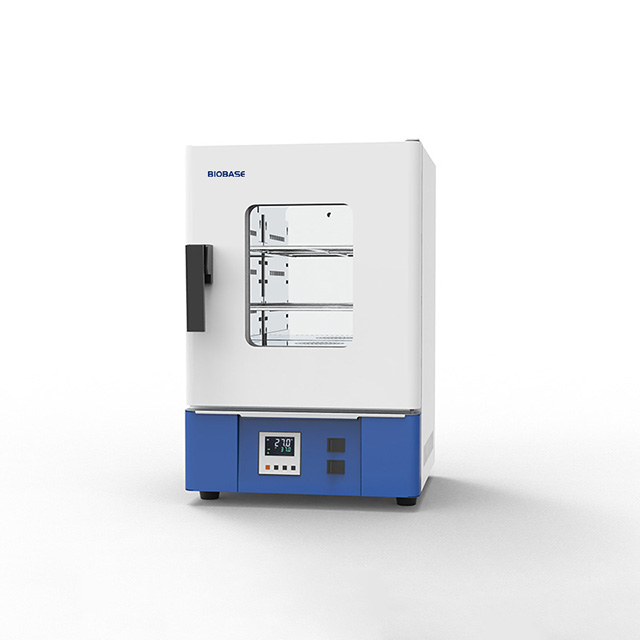

BJPX-HGZ30L
BIOBASE
Features：
1. Structure design
(1) LCD display
(2) Built-in temperature deviation calibration function, parameter memory function, with call parameters automatic recovery function
2. Timing Settings
(1) Accurate control of heating time, timing range 0~9999 minutes(hours), timing error≤1%
3. Independent Fan Switch
(1) Independent fan switch, according to the heating needs to decide whether to start
(2) Unique mandatory fan cooling ventilation structure, ensure the fan working temperature is less than 50°C
4. Exterior Design
(1) Novel vertical design, shell with electrostatic spraying steel plate, corrosion resistant and durable
(2) Optional Foot Master casters are available for more convenient movement
5. Three-dimensional Circulation Air Duct
(1) Unique bottom air blast and bottom heating reasonable cooperation
(2) Vertical double duct vertical hot air circulation design
(3) The temperature is uniform to meet the requirements of high-precision experiments
Technical Parameters：
Model | BJPX-HGZ30L |
Capacity | 30L |
Temp. Range | RT+10℃~300℃ |
Temp. Precision | 0.1℃ |
Temp. Uniformity | ≤Max Temp.±2.5％ |
Circulation Mode | Bottom heating, forced convection |
Timing Range | 0~9999min/h |
Shelves NO.(pc) | 2 |
Display | LCD |
Power Supply | 100~245V, 50/60Hz |
Internal Size(mm) | 310*310*310 |
External Size(mm) | 440*670*495 |
Packing Size(mm) | 520*810*550 |
Gross Weight(kg) | 50 |
