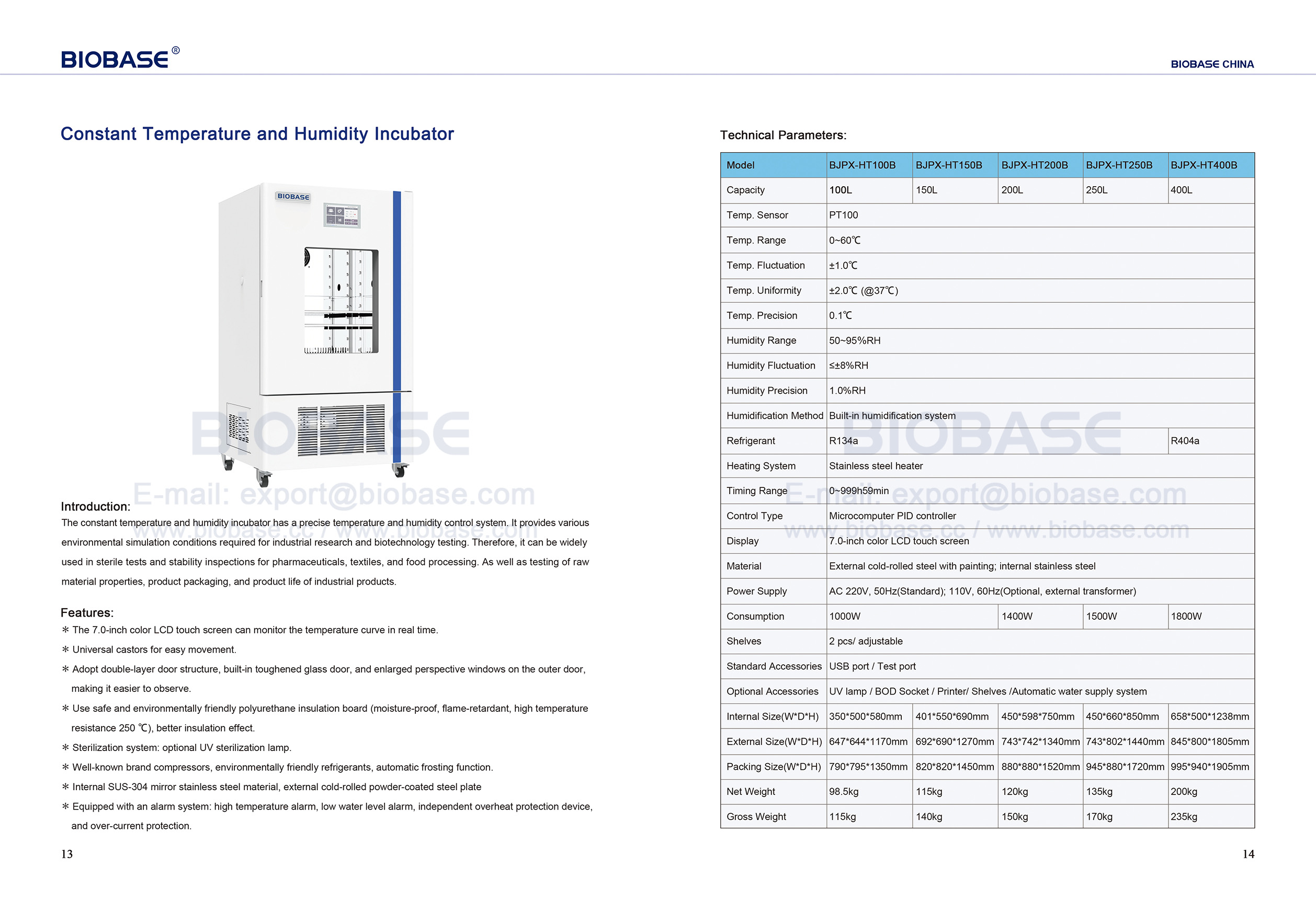

Introduction:
The constant temperature and humidity incubator has a precise temperature and humidity control system. It provides various environmental simulation conditions required for industrial research and biotechnology testing. Therefore, it can be widely used in sterile tests and stability inspections for pharmaceuticals, textiles, and food processing. As well as testing of raw material properties, product packaging, and product life of industrial products.
| Quantity: | |
|---|---|
BJPX-HT100B, BJPX-HT150B, BJPX-HT200B, BJPX-HT250B, BJPX-HT400B
BIOBASE
Features:
1. The 7.0-inch color LCD touch screen can monitor the temperature curve in real time.
2. Universal castors for easy movement.
3. Adopt double-layer door structure, built-in toughened glass door, and enlarged perspective windows on the outer door, making it easier to observe.
4. Use safe and environmentally friendly polyurethane insulation board (moisture-proof, flame-retardant, high temperature resistance 250 ℃), better insulation effect.
5. Sterilization system: optional UV sterilization lamp.
6. Well-known brand compressors, environmentally friendly refrigerants, automatic frosting function.
7. Internal SUS-304 mirror stainless steel material, external cold-rolled powder-coated steel plate
8. Equipped with an alarm system: high temperature alarm, low water level alarm, independent overheat protection device, and over-current protection.
Technical Parameters:
Model | BJPX-HT100B | BJPX-HT150B | BJPX-HT200B | BJPX-HT250B | BJPX-HT400B |
Capacity | 100L | 150L | 200L | 250L | 400L |
Temp. Sensor | PT100 | ||||
Temp. Range | 0~60℃ | ||||
Temp. Fluctuation | ±1.0℃ | ||||
Temp. Uniformity | ±2.0℃(@37℃) | ||||
Temp. Precision | 0.1℃ | ||||
Humidity Range | 50~95％RH | ||||
Humidity Fluctuation | ≤±8%RH | ||||
Humidity Precision | 1.0%RH | ||||
Humidification Method | Built-in humidification system | ||||
Refrigerant | R134a | R404a | |||
Heating System | Stainless steel heater | ||||
Timing Range | 0~999h59min | ||||
Control Type | Microcomputer PID controller | ||||
Display | 7.0-inch color LCD touch screen | ||||
Material | External cold-rolled steel with painting; internal stainless steel | ||||
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer) | ||||
Consumption | 1000W | 1400W | 1500W | 1800W | |
Shelves | 2pcs/adjustable | ||||
Standard Accessories | USB port/Test port | ||||
Optional Accessories | UV lamp/BOD Socket/Printer/Shelves/Automatic water supply system | ||||
Internal Size(W*D*H) | 350*500*580mm | 401*550*690mm | 450*598*750mm | 450*660*850mm | 658*500*1238mm |
External Size(W*D*H) | 647*644*1170mm | 692*690*1270mm | 743*742*1340mm | 743*802*1440mm | 845*800*1805mm |
Packing Size(W*D*H) | 790*795*1350mm | 820*820*1450mm | 880*880*1520mm | 945*880*1720mm | 995*940*1905mm |
Net Weight | 98.5kg | 115kg | 120kg | 135kg | 200kg |
Gross Weight | 115kg | 140kg | 150kg | 170kg | 235kg |
