| Quantity: | |
|---|---|

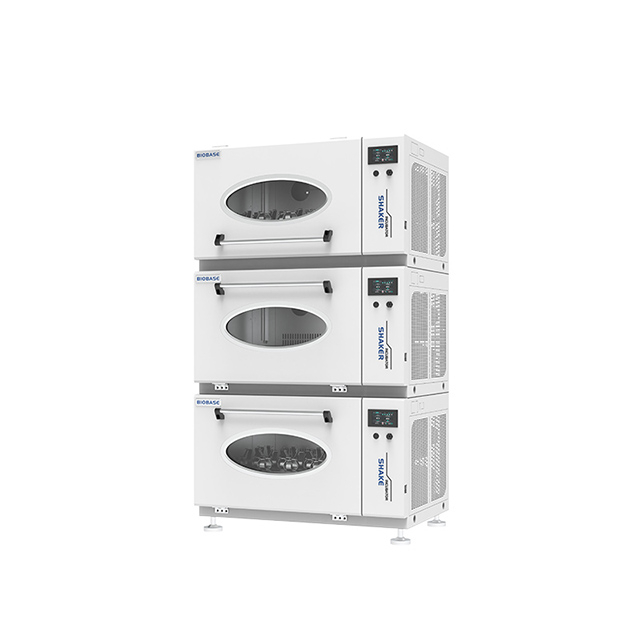

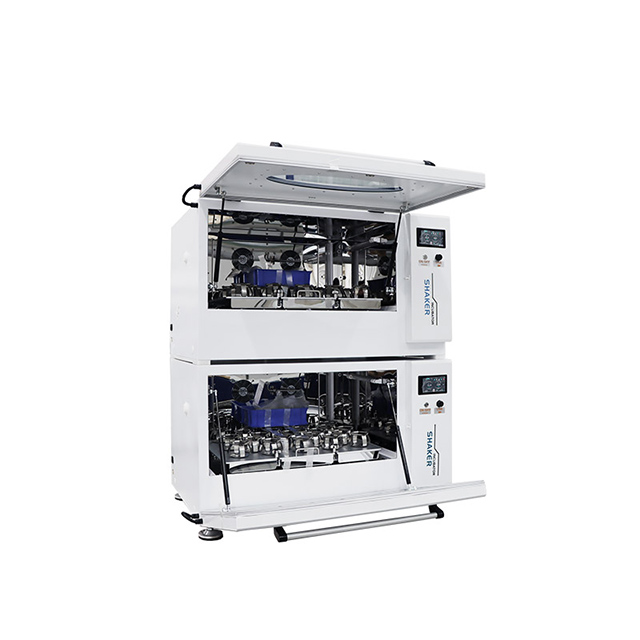

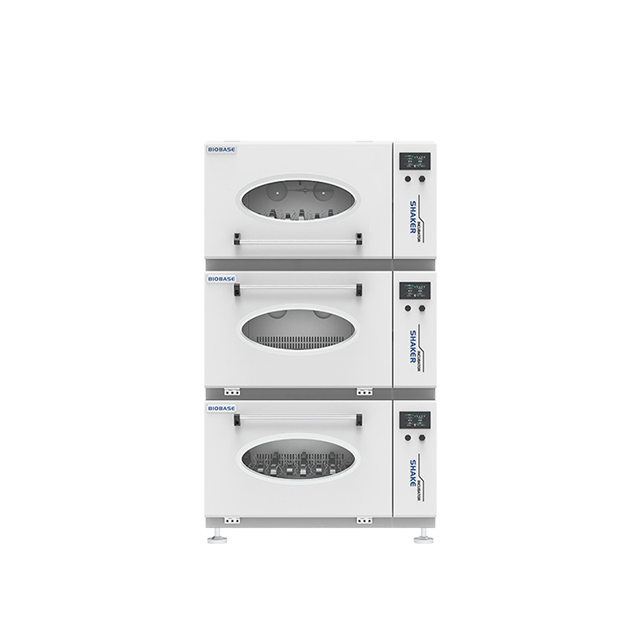

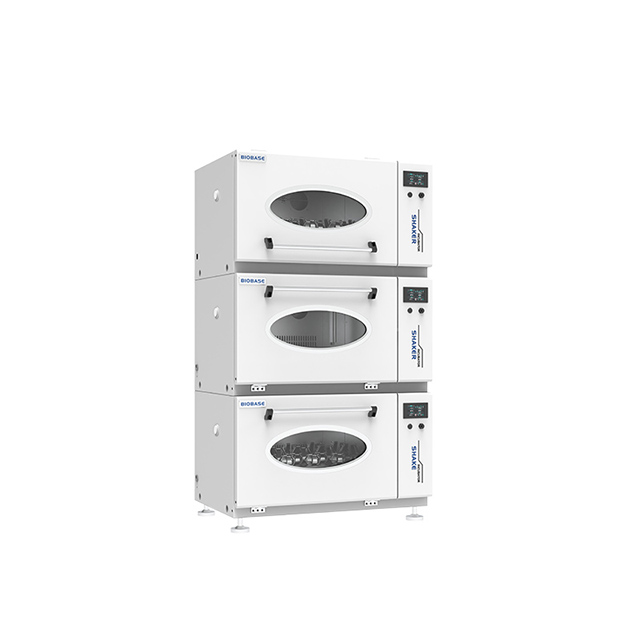

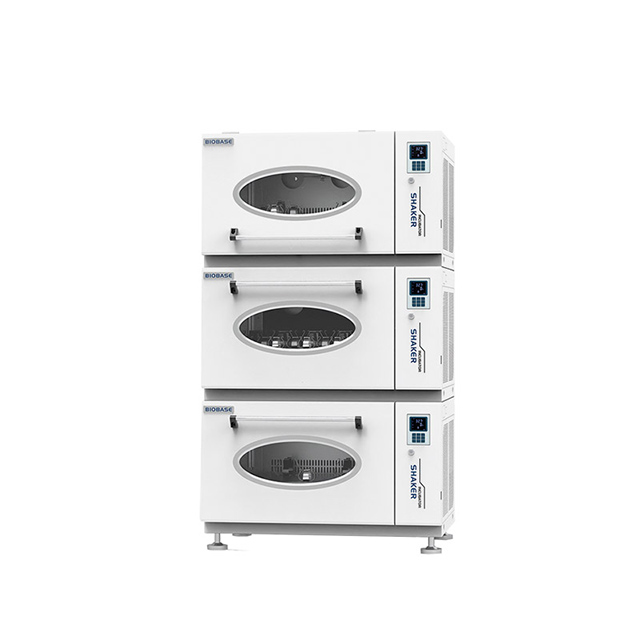

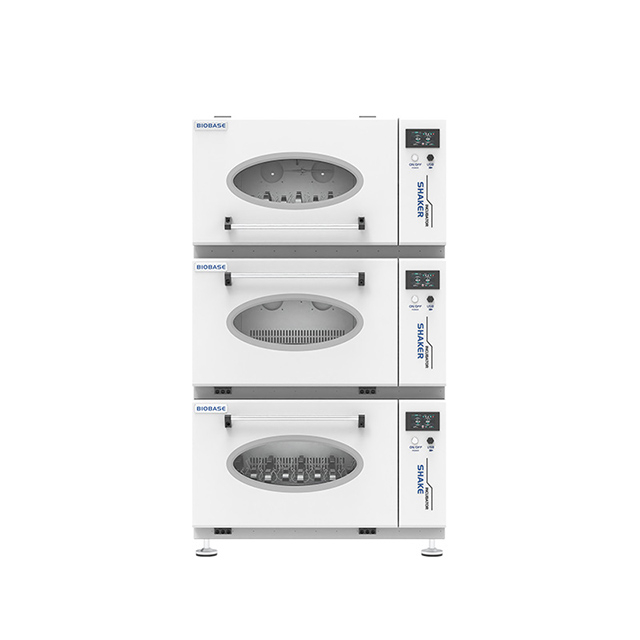

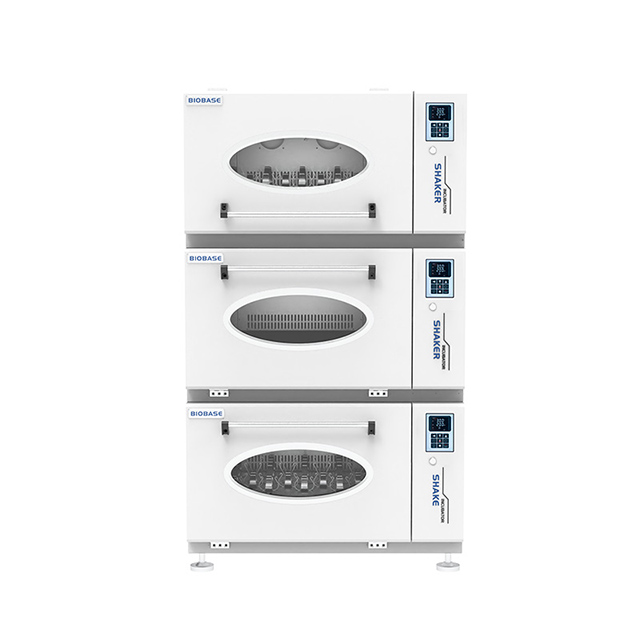

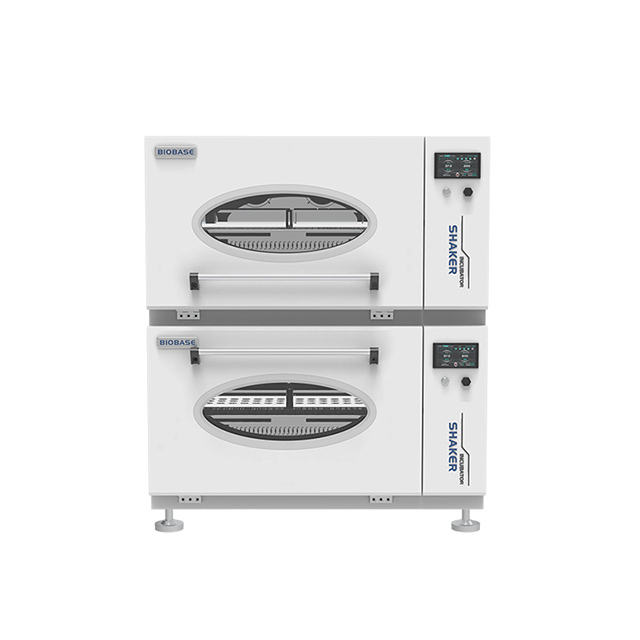

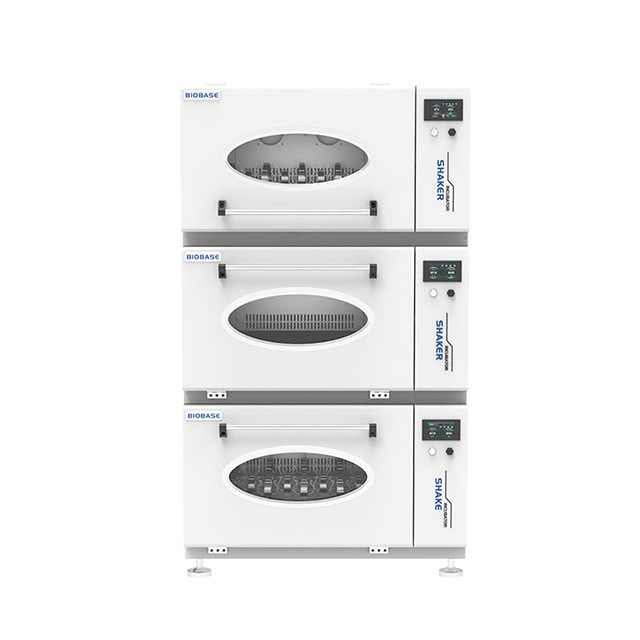

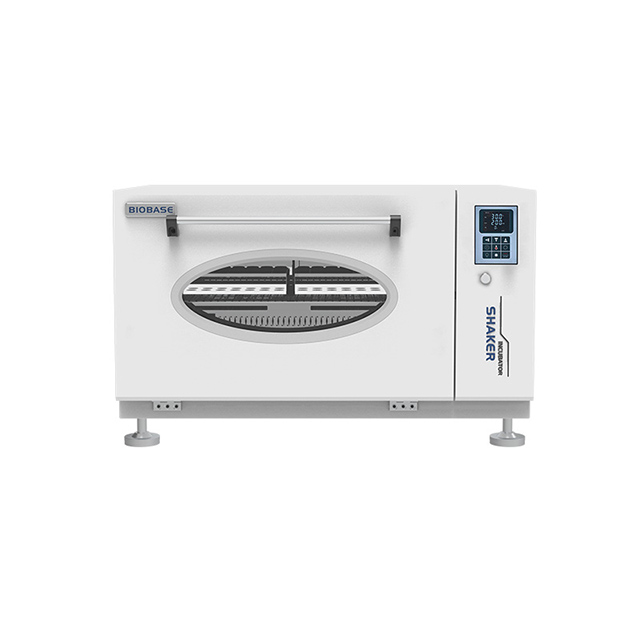

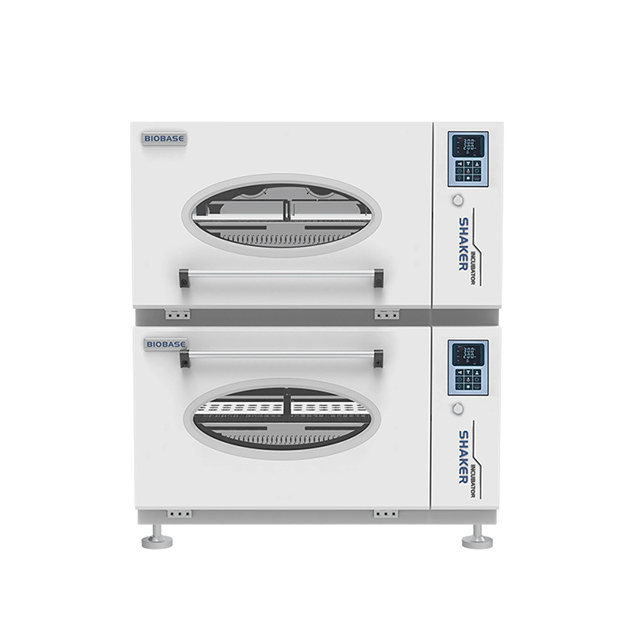

BJPX-SDW10 BJPX-SDW20 BJPX-SDW10-L BJPX-SDW20-L
BIOBASE
Features:
1. Multiple methods to monitor equipment temperature, complete recording of information and traceability of quality control data.
2. High quality brushless DC motor, low vibration, low noise, high efficiency, maintenance free, energy saving, lasting operation.
3. 5 inch touch screen /LCD screen, clear and intuitive interface, easy to operate.
4. With UV disinfection function, the cavity to maintain a clean and sterile environment.
5. LED lighting function, open the door and turn on the light automatically.
6. With power failure recovery function, the equipment can automatically resume operation according to the original program.
7. Electric heating toughened glass perspective window, easy to observe, good temperature insulation effect, anti condensation.

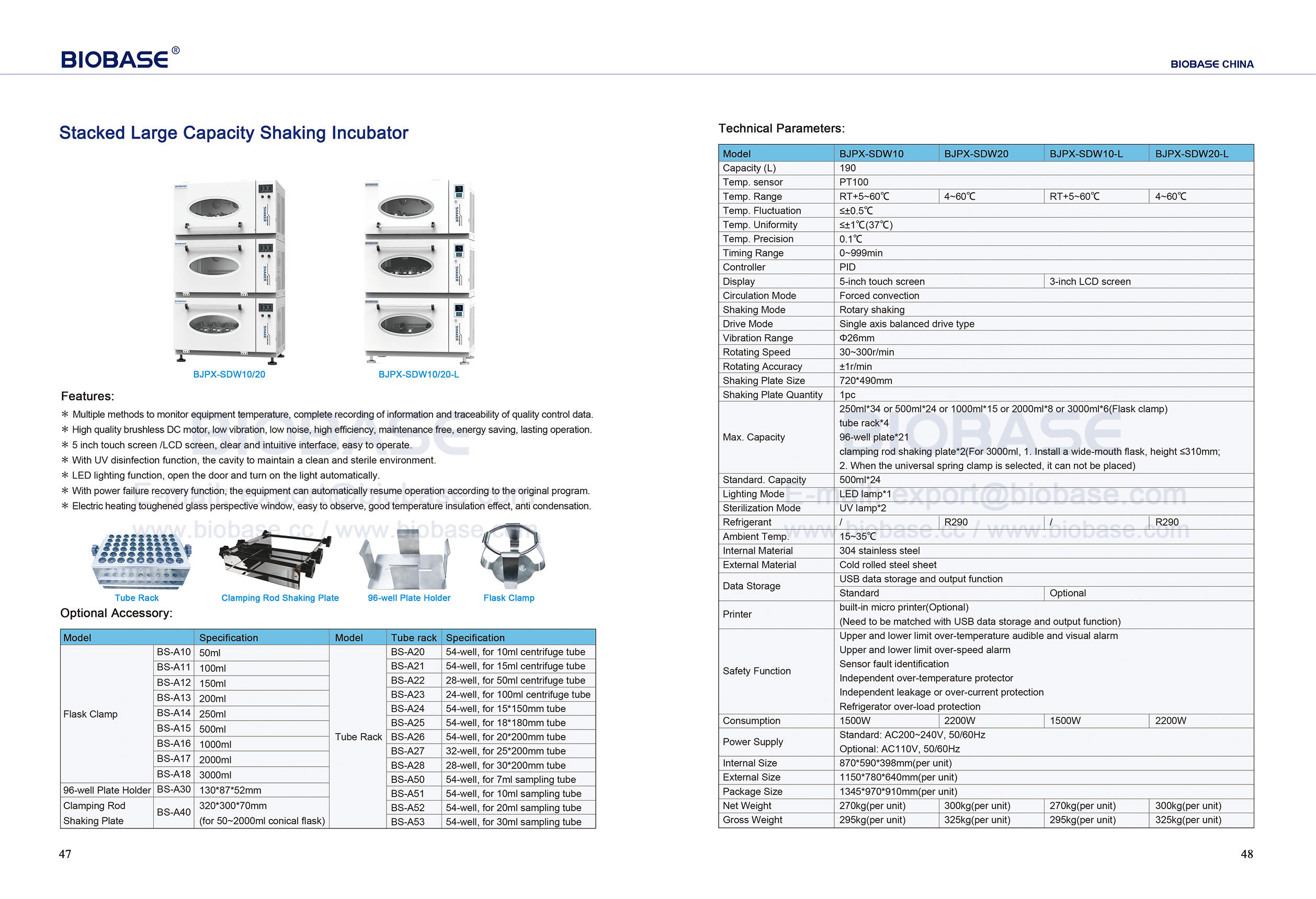

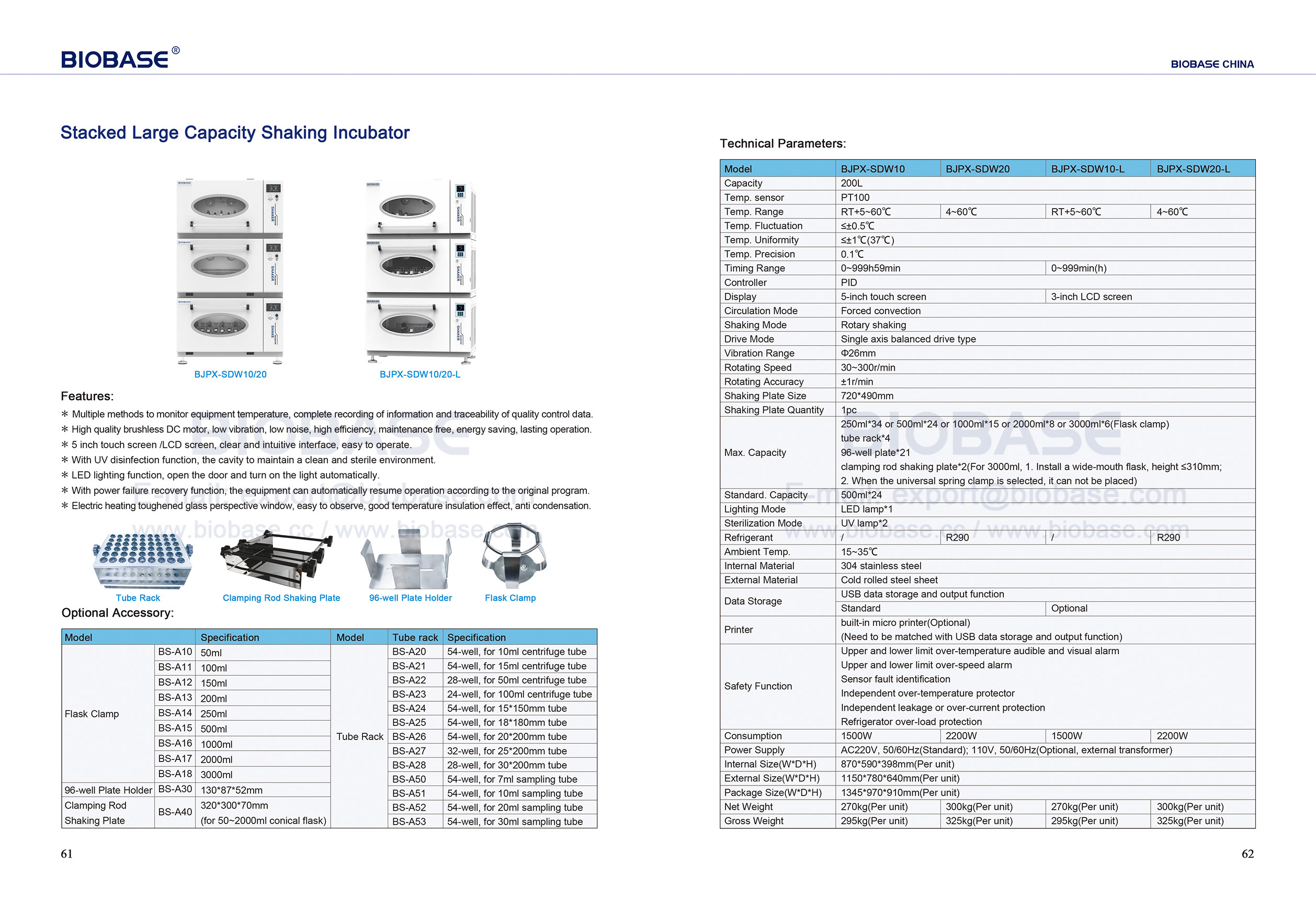

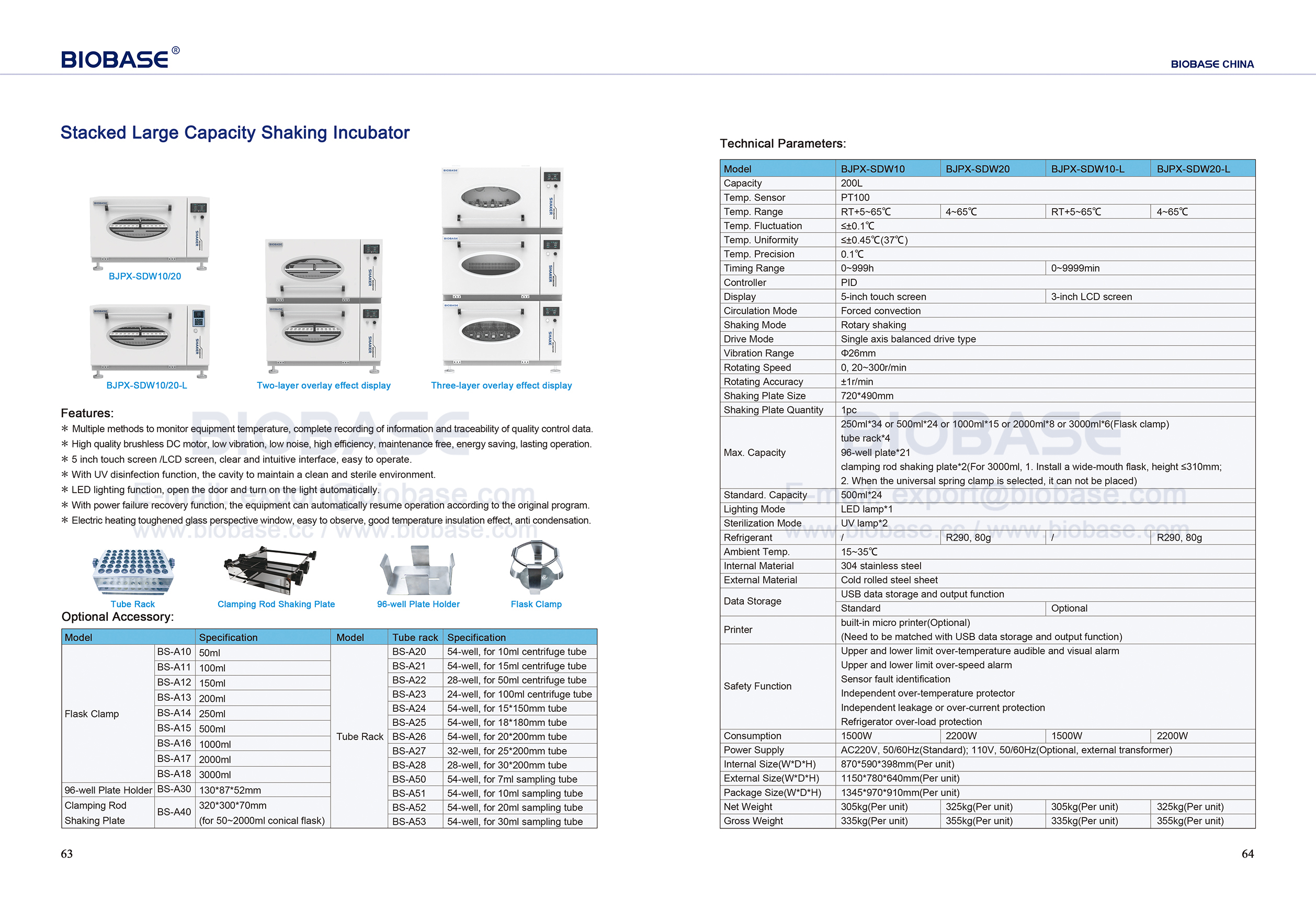

Technical Parameters:
Model | BJPX-SDW10 | BJPX-SDW20 | BJPX-SDW10-L | BJPX-SDW20-L |
Capacity(L) | 190 | |||
Temp. Sensor | PT100 | |||
Temp. Range | RT+5~60℃ | 4~60℃ | RT+5~60℃ | 4~60℃ |
Temp. Fluctuation | ≤±0.5℃ | |||
Temp. Uniformity | ≤±1℃(37℃） | |||
Temp. Precision | 0.1℃ | |||
Timing Range | 0~999min | |||
Controller | PID | |||
Display | 5-inch touch screen | 3-inch LCD screen | ||
Circulation Mode | Forced convection | |||
Shaking Mode | Rotary shaking | |||
Drive Mode | Single axis balanced drive type | |||
Vibration Range | Φ26mm | |||
Rotating Speed | 30~300r/min | |||
Rotating Accuracy | ±1r/min | |||
Shaking Plate Size | 720*490mm | |||
Shaking Plate Quantity | 1pc | |||
Max. Capacity | 250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) Tube rack*4 96-well plate*21 Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed) | |||
Standard. Capacity | 500ml*24 | |||
Lighting Mode | LED lamp*1 | |||
Sterilization Mode | UV lamp*2 | |||
Refrigerant | / | R290 | / | R290 |
Ambient Temp. | 15~35℃ | |||
Internal Material | 304 stainless steel | |||
External Material | Cold rolled steel sheet | |||
Data Storage | USB data storage and output function | |||
Standard | Optional | |||
Printer | built-in micro printer(Optional) (Need to be matched with USB data storage and output function) | |||
Safety Function | Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection | |||
Consumption | 1500W | 2200W | 1500W | 2200W |
Power Supply | Standard: AC200~240V, 50/60Hz Optional: AC110V, 50/60Hz | |||
Internal Size | 870*590*398mm(per unit) | |||
External Size | 1150*780*640mm(per unit) | |||
Package Size | 1345*970*910mm(per unit) | |||
Net Weight | 270kg(per unit) | 300kg(per unit) | 270kg(per unit) | 300kg(per unit) |
Gross Weight | 295kg(per unit) | 325kg(per unit) | 295kg(per unit) | 325kg(per unit) |
Optional Accessory：
Model | Specification | Model | Tube Rack | Specification | |
Flask Clamp | BS-A10 | 50ml | Tube Rack | BS-A20 | 54-well, for 10ml centrifuge tube |
BS-A11 | 100ml | BS-A21 | 54-well, for 15ml centrifuge tube | ||
BS-A12 | 150ml | BS-A22 | 28-well, for 50ml centrifuge tube | ||
BS-A13 | 200ml | BS-A23 | 24-well, for 100ml centrifuge tube | ||
BS-A14 | 250ml | BS-A24 | 54-well, for 15*150mm tube | ||
BS-A15 | 500ml | BS-A25 | 54-well, for 18*180mm tube | ||
BS-A16 | 1000ml | BS-A26 | 54-well, for 20*200mm tube | ||
BS-A17 | 2000ml | BS-A27 | 32-well, for 25*200mm tube | ||
BS-A18 | 3000ml | BS-A28 | 28-well, for 30*200mm tube | ||
BS-A50 | 54-well, for 7ml sampling tube | ||||
96-well Plate | BS-A30 | 130*87*52mm | BS-A51 | 54-well, for 10ml sampling tube | |
Clamping Rod Shaking Plate | BS-A40 | 320*300*70mm(for 50~2000ml conical flask) | BS-A52 | 54-well, for 20ml sampling tube | |
BS-A53 | 54-well, for 30ml sampling tube | ||||
