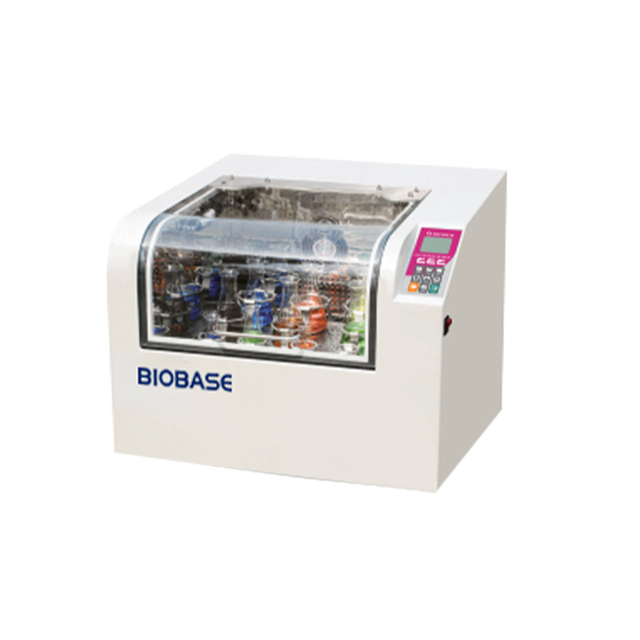

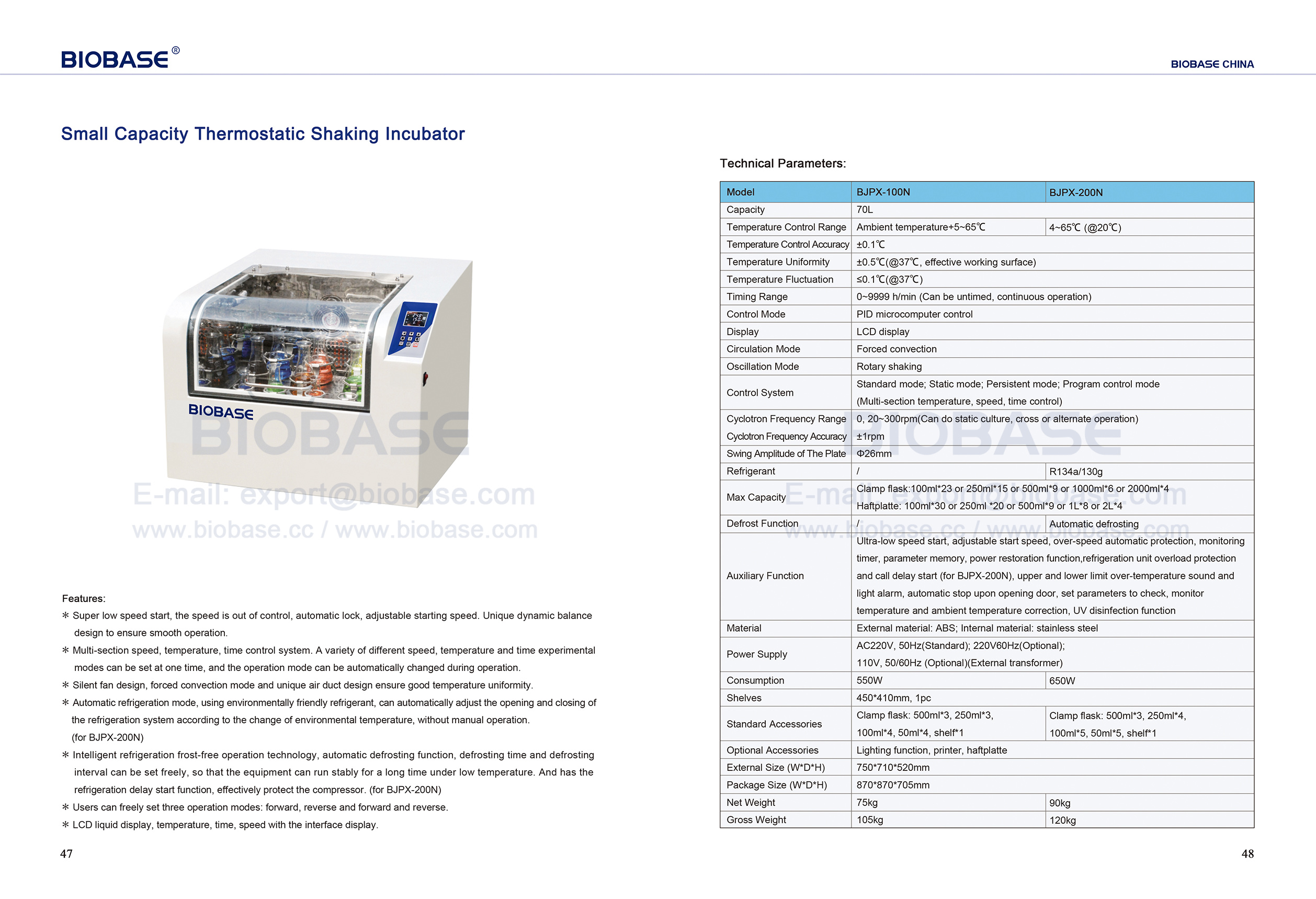

BJPX-100N, BJPX-200N
BIOBASE
Features:
*High quality servo motor.
* Multi-steps rotate speed, temperature and time control systems.
*Slow accelerate and decelerate design.
*Advantaged air duct design.
*Automatic defrosting function.
* High-precision speed control.
*High-precision temperature control.
*Open door protection.
* LCD display with bright illumination.
* Memorized and protected operating parameters.
*Function of encrypted and locked operating parameters.
*Continuously running or timing.
* Unique slow-start design.
*Optional of illumination and UV light.
Models:
Model | BJPX-100N | BJPX-200N |
Controller | PID | |
Display | LCD | |
Circulation Mode | Forced convection | |
Shaking Mode | Rotary Shaking | |
Drive Mode | Unidimensional drive | |
Temp. Range | RT+5~65℃ | 4~65℃ |
Temp. Accuracy | ±0.1℃ | |
Temp. Uniformity | ±0.5℃(at 37℃) | |
Rotating Speed | 20-450(r/min) | |
Rotating Accuracy | ±1(r/min) | |
Vibration Range | 26mm | |
Refrigerant | / | Environmentally friendly refrigerant |
Cooling Consumption | / | 118W |
Timing Range | 0-9999h/min | |
Shaking Plate Size | 450*410mm | |
Standard Capacity | 50ml*4,100ml*4, 250ml*3, 500ml*3 | 50ml*5,100ml*5, 250ml*4, 500ml*3 |
Max. Capacity | Clamp flask: 100ml*23 or 250ml*15 or 500ml*9,1000ml*6 or 2000ml*4; | |
External Size(mm) | 750*710*520 | |
Auxiliary Function | Ultra-low speed start, adjustable start speed, monitoring timer, parameter memory, upper and lower limits of over-temperature acousto-optic alarm, while opening the door automatically stop, monitoring temperature and environmental temperature for | |
Consumption | 550W | 650W |
Power Supply | Standard: AC220±10%, 50/60Hz; Optional:110V±10%, 60Hz | Standard: AC220±10%, 50Hz; Optional:110V±10%, 50Hz |
Internal Material | Stainless steel | |
External Material | Stainless steel | |
Package Size | 881*875*715mm | |
Gross Weight | 120kg | 120kg |
