Statement of BIOBASE Brand ：
 |
| Quantity: | |
|---|---|

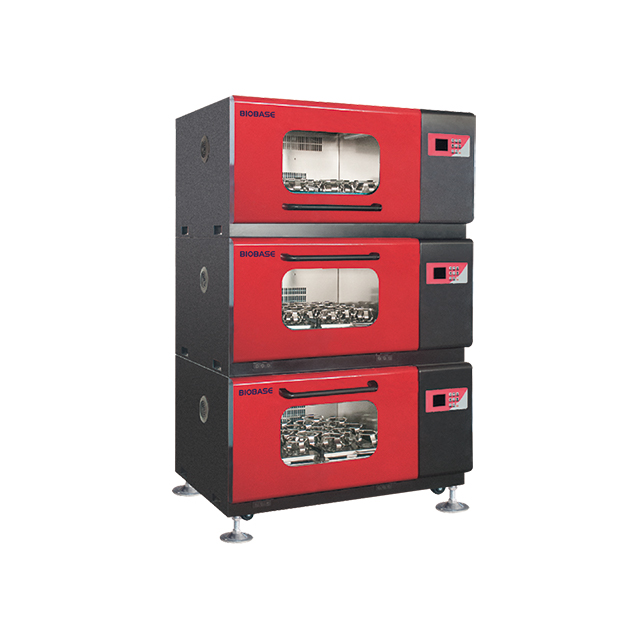

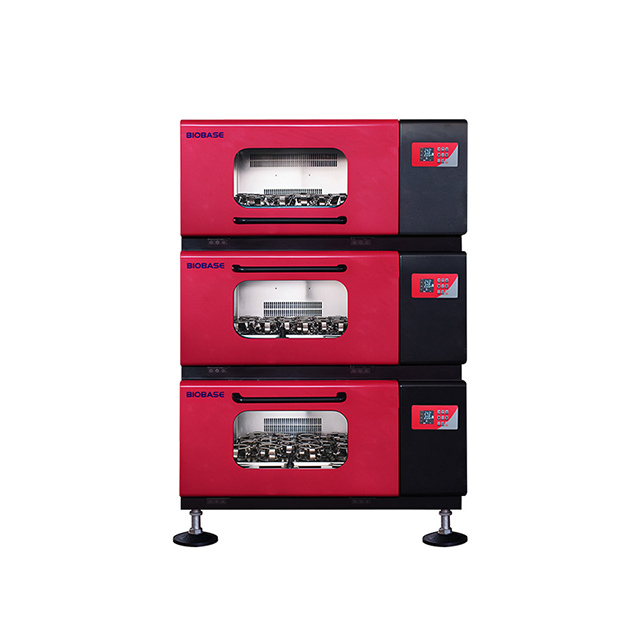

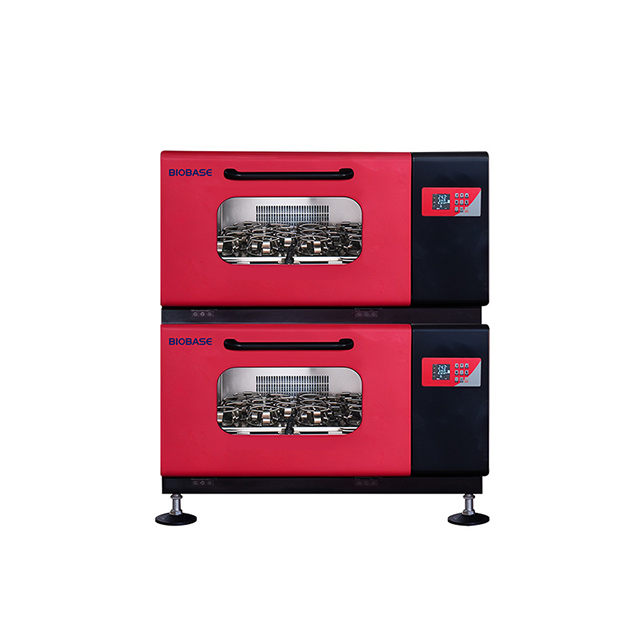

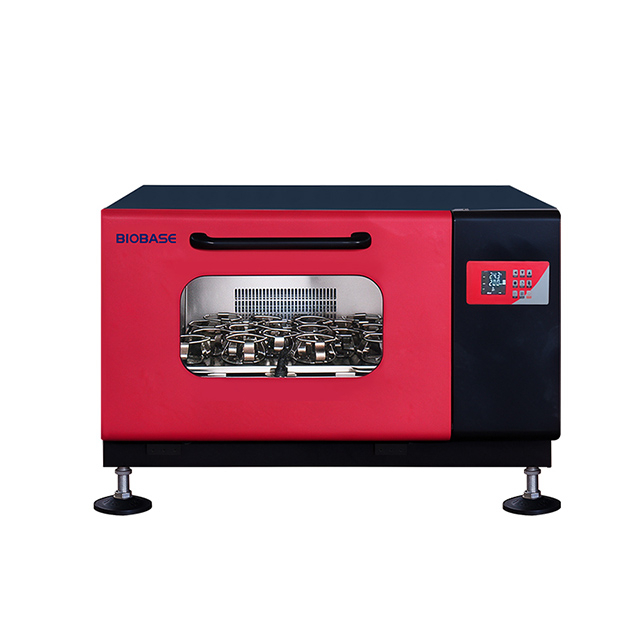

BJPX-2012N, BJPX-2012RN
BIOBASE
Features:
* High quality servo motor.
*Multi-steps rotate speed, temperature and time control systems.* Slow accelerate and decelerate design.
*Advantaged air duct design.
*Automatic defrosting function.*High-precision speed control.
*High-precision temperature control.*Unique drive system.
*Open door protection.
*LCD display with bright illumination.
*Memorized and protected operating parameters.*Continuously running or timing.
*Unique slow-start design.
*Standard of illumination and UV light.
Model：
Model | BJPX-2012N | BJPX-2012RN |
Controller | PID | |
Display | LCD | |
Circulation Mode | Forced convection | |
Shaking Mode | Rotary shaking | |
Drive Mode | Multidimensional drive | |
Rotating Speed | 20-350rpm (Top layer 20-300rpm, static culture, reverse rotation or alternate operation) | |
Rotating Accuracy | ±1rpm | |
Vibration Range | Φ26mm (Can customize φ35 (20-250rpm/min); φ50(20-200rpm/min)) | |
Temp. Range | RT+5~60℃ | 4~65℃(At25℃) |
Temp.Control Accuracy | ±0.1℃ | |
Temp. Uniformity | ±0.6℃ (At 37℃) | |
Timing Range | 0~9999h/min | |
Shaking Plate Size | 610*460 mm | |
Shaking Plate Quantity | 1 pc | |
Max. Capacity | 250ml*32or500ml*21 or1000ml*13or2000ml*7(Flask clamp) 250ml*32or500ml*20or1000ml*12or2000ml*8(haftplatte) | |
Standard Capacity | 500ml*21 | |
Internal Material | Stainless steel | |
External Material | Stainless steel | |
Refrigerant | / | R134a |
Heating Consumption | 800-900W | |
Safety Function | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection; Ultraviolet disinfection function; Calibration of monitoring temperature and ambient temperature; Overload protection of refrigeration unit and delayed start of incoming call (only BJPX-2012RN) | |
Consumption | 1000W | 1200W |
Power Supply | Standard:220V±10%, 50/60Hz; optional:110V±10%, 60Hz | Standard:220V±10%, 50Hz; optional:110V±10%, 50Hz |
Internal Size(W*D*H)(mm) | 715*580*450(per unit) | |
External Size(W*D*H)(mm) | 1120*790*620(per unit) | |
Package Size(W*D*H)(mm) | 1275*950*810(per unit) | |
Gross Weight(kg) | 240(per unit) | |
