| Quantity: | |
|---|---|

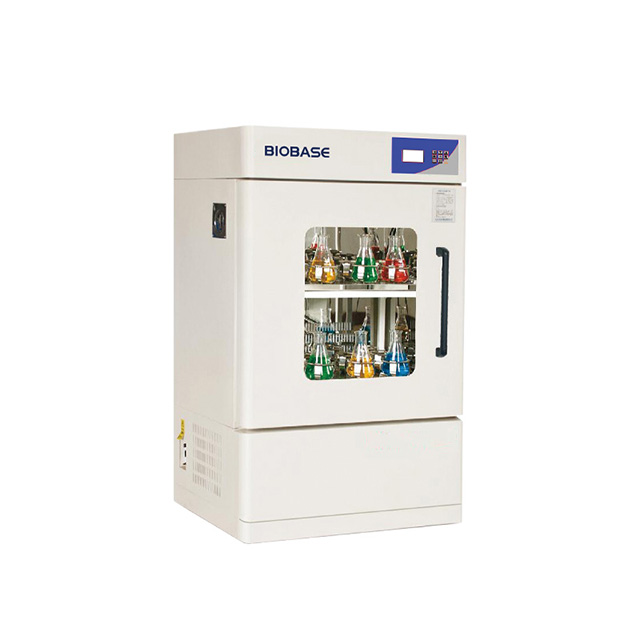

BJPX-1102D, BJPX-2102D
BIOBASE
Features:
* Audio and visual alarm.
* Power off recovery function.
* High efficiency servo motor, accurate control speed.
* Super low speed start, start speed adjustable, over-speed automatic protection.
* Accessories: Monitor timer(standard accessories); Open the door automatically stop, UV disinfection function, humidity shaker, high temperature shaker(optional accessories).
Models:
| Model | BJPX-1102D | BJPX-2102D |
| Controller | PID | |
| Display | LCD | |
| Circulation Mode | Forced convection | |
| Shaking Mode | Rotary shaking | |
| Drive Mode | Multidimensional drive | |
| Rotating Speed | 20~350rpm(Static culture, reverse rotation or alternate operation) | |
| Rotating Accuracy | ±1rpm | |
| Vibration Range | Φ26mm, (Can customize φ35(20-250rpm/min), φ50(20-200rpm/min)) | |
| Temp. Range | RT+5~65℃ | 4~60℃ |
| Temp. Accuracy | ±0.1℃ | |
| Temp. Uniformity | ±0.5℃(At 37℃) | |
| Timing Range | 0~9999h/min(Can run continuously from time to time) | |
| Shaking Plate Size | 500*360mm | |
| Shaking Plate Quantity | 2pcs | |
| Max. Capacity | 100ml*60 or 250ml*38 or 500ml*22 or 1000ml*16(Flask clamp) | |
| 100ml*60 or 250ml*36 or 500ml*24 or 1000ml*16(Haftplatte) | ||
| Standard Capacity | 250ml*24 | |
| Internal Material | Stainless steel | |
| External Material | Stainless steel | |
| Refrigerant | / | CFC-Free, R134A |
| Cooling Consumption | / | 250W |
| Heating Consumption | 500W | |
| Audio and visual alarm for over-temperature; | ||
| Alarm for over-speeds; | ||
| Safety Function | Independent over-temperature protector; | |
| Shutdown protection for door opening;(Optional accessories ); | ||
| Leakage or over-current protection; | ||
| Ultraviolet disinfection function (Optional accessories); | ||
| Calibration of monitoring temperature and ambient temperature | ||
| Consumption | 600W | 850W |
| Power Supply | 220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) | 220V±10%, 50Hz(Standard); 110V±10%, 50Hz(Optional) |
| Internal Size(W*D*H)(mm) | 600*410*630 | |
| External Size(W*D*H)(mm) | 700*580*1280 | |
| Package Size(W*D*H)(mm) | 825*720*1490 | |
| Gross Weight(kg) | 220 | |
