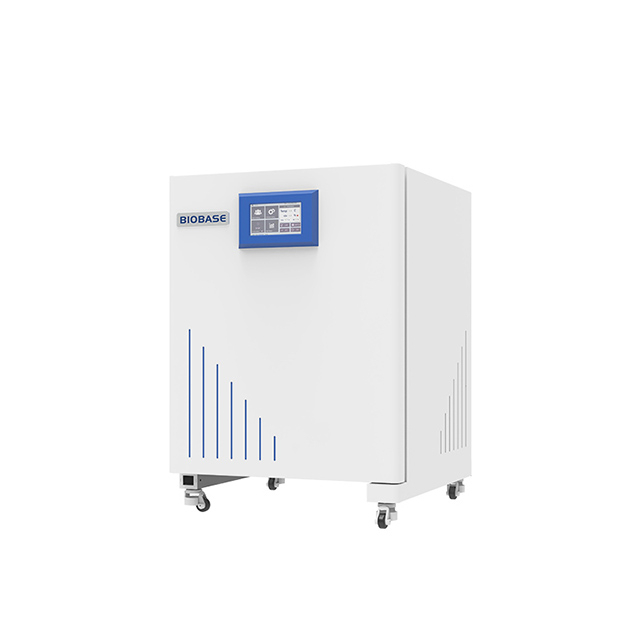

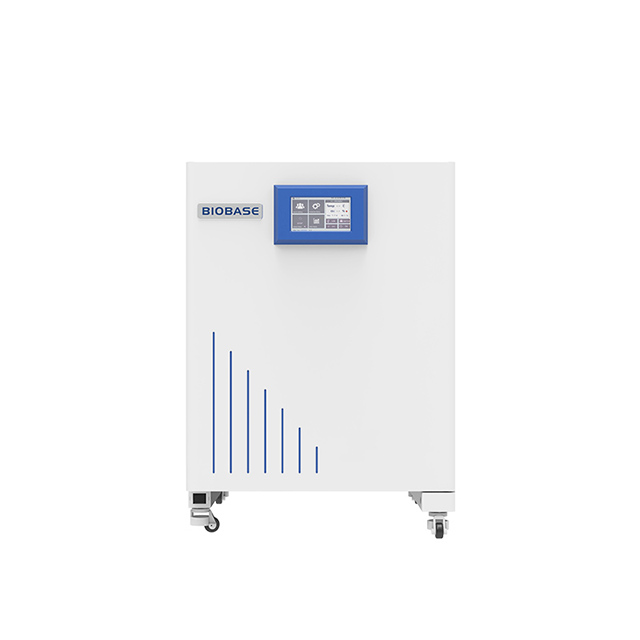

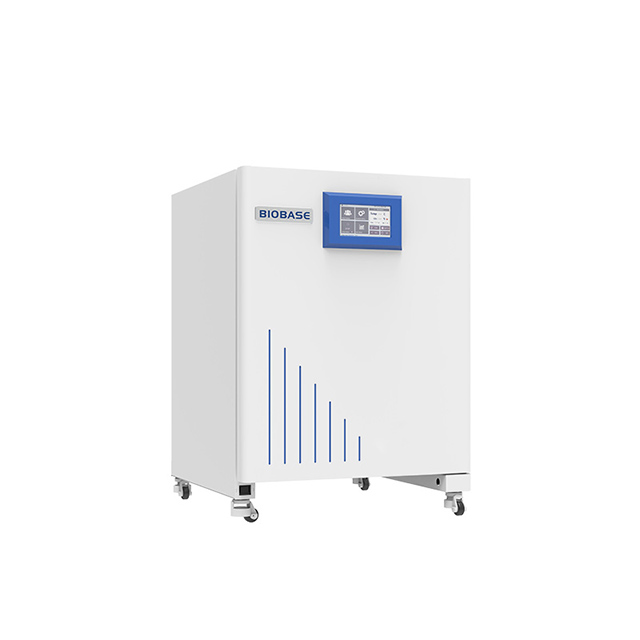

BJPX-C50II, BJPX-C80II, BJPX-C160II
BIOBASE
Features:
1. IR infrared sensor, using dual-channel dual-filter infrared technology.
2. With humidity display function, it shows the humidity level inside the incubator in real-time.

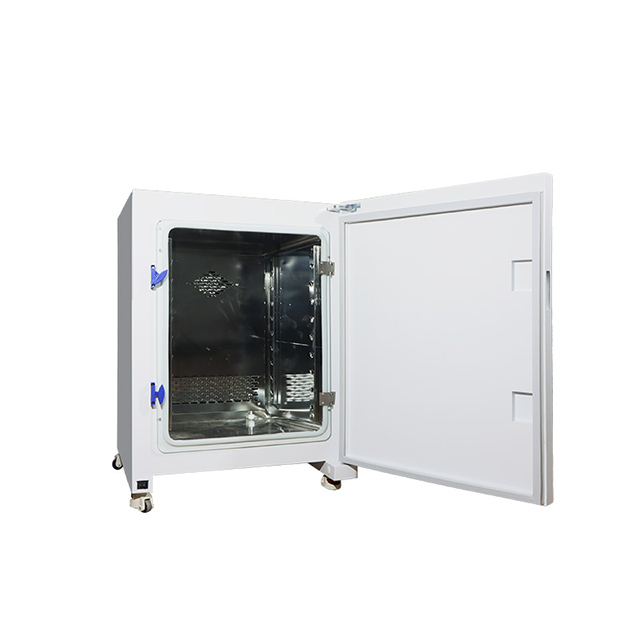

3. The inner tank is designed with semicircular corners and the surface is made of 304 stainless steel with electrochemical treatment.
4. The bottom water reservoir design eliminates the need for repeated water replenishment, saving time.
5. The water level alarm design alerts the operator to refill water in time, providing more comprehensive protection for the samples.
6. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.
Technical Parameters:
Model | BJPX-C50II | BJPX-C80II | BJPX-C160II |
Type | Air jacket | ||
Sterilization Type | 90℃ moist heat sterilization | ||
Capacity | 50L | 80L | 160L |
Temp. Sensor | PT100 | ||
Temp. Range | RT+5~60℃ | ||
Temp. Fluctuation | ±0.3℃(@37℃) | ||
Temp. Uniformity | ±0.5℃(@37℃) | ||
Temp. Precision | 0.1℃ | ||
Timing Range | 0~999h or continuous | ||
Display | 7-inch touch screen | ||
CO2 Control | IR infrared sensor with calibration certificate | ||
CO2 Range | 0~20vol% | ||
CO2 Uniformity | 0.2vol% | ||
CO2 Control Resolution | 0.1vol% | ||
Ambient Temperature and Humidity | Ambient Temperature: 5~30℃(Recommendation: 25±2℃) Ambient Humidity: ≤80% | ||
Filter | CO2 gas filter | ||
Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz(External transformer) Wiring Method: plug | ||
Consumption | 300W | 650W | 700W |
Shelves | 2pcs, adjustable | ||
Standard Accessories | Shelves, USB interface, CO2 relief valve, CO2 gas filter | ||
Optional Accessories | Water pump, three-way connector | ||
Internal Size(W*D*H) | 308*392*442mm | 368*452*517mm | 468*552*648mm |
External Size(W*D*H) | 551*713*765mm | 611*773*841mm | 711*873*991mm |
Package Size(W*D*H) | 645*807*902mm | 725*887*985mm | 820*1010*1128mm |
Net Weight | 60kg | 72kg | 95kg |
Gross Weight | 85kg | 93kg | 120kg |
Features:
1. IR infrared sensor, using dual-channel dual-filter infrared technology.
2. With humidity display function, it shows the humidity level inside the incubator in real-time.
3. The inner tank is designed with semicircular corners and the surface is made of 304 stainless steel with electrochemical treatment.
4. The bottom water reservoir design eliminates the need for repeated water replenishment, saving time.
5. The water level alarm design alerts the operator to refill water in time, providing more comprehensive protection for the samples.
6. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.
Technical Parameters:
Model | BJPX-C50II | BJPX-C80II | BJPX-C160II |
Type | Air jacket | ||
Sterilization Type | 90℃ moist heat sterilization | ||
Capacity | 50L | 80L | 160L |
Temp. Sensor | PT100 | ||
Temp. Range | RT+5~60℃ | ||
Temp. Fluctuation | ±0.3℃(@37℃) | ||
Temp. Uniformity | ±0.5℃(@37℃) | ||
Temp. Precision | 0.1℃ | ||
Timing Range | 0~999h or continuous | ||
Display | 7-inch touch screen | ||
CO2 Control | IR infrared sensor with calibration certificate | ||
CO2 Range | 0~20vol% | ||
CO2 Uniformity | 0.2vol% | ||
CO2 Control Resolution | 0.1vol% | ||
Ambient Temperature and Humidity | Ambient Temperature: 5~30℃(Recommendation: 25±2℃) Ambient Humidity: ≤80% | ||
Filter | CO2 gas filter | ||
Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz(External transformer) Wiring Method: plug | ||
Consumption | 300W | 650W | 700W |
Shelves | 2pcs, adjustable | ||
Standard Accessories | Shelves, USB interface, CO2 relief valve, CO2 gas filter | ||
Optional Accessories | Water pump, three-way connector | ||
Internal Size(W*D*H) | 308*392*442mm | 368*452*517mm | 468*552*648mm |
External Size(W*D*H) | 551*713*765mm | 611*773*841mm | 711*873*991mm |
Package Size(W*D*H) | 645*807*902mm | 725*887*985mm | 820*1010*1128mm |
Net Weight | 60kg | 72kg | 95kg |
Gross Weight | 85kg | 93kg | 120kg |
