Introduction:

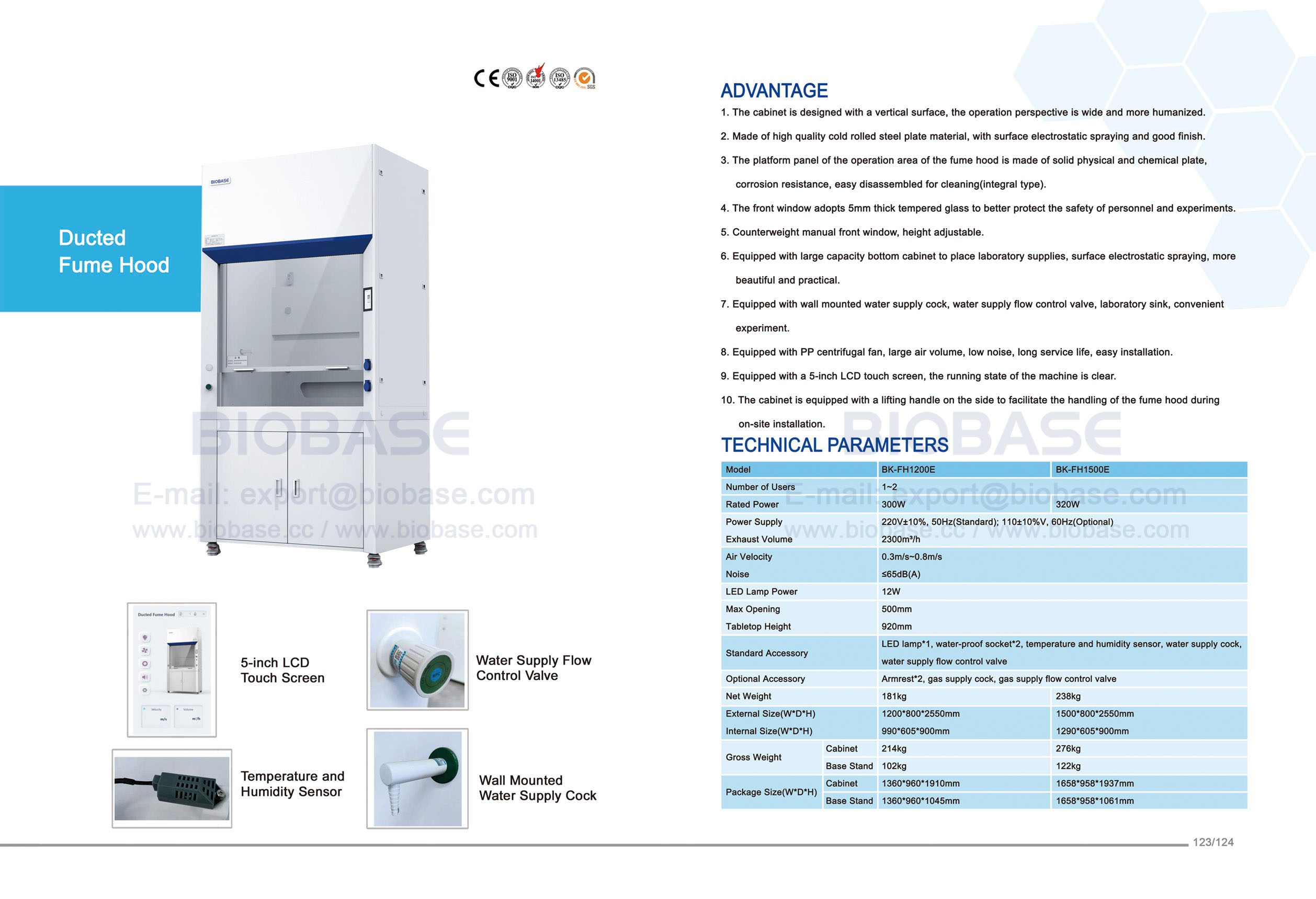

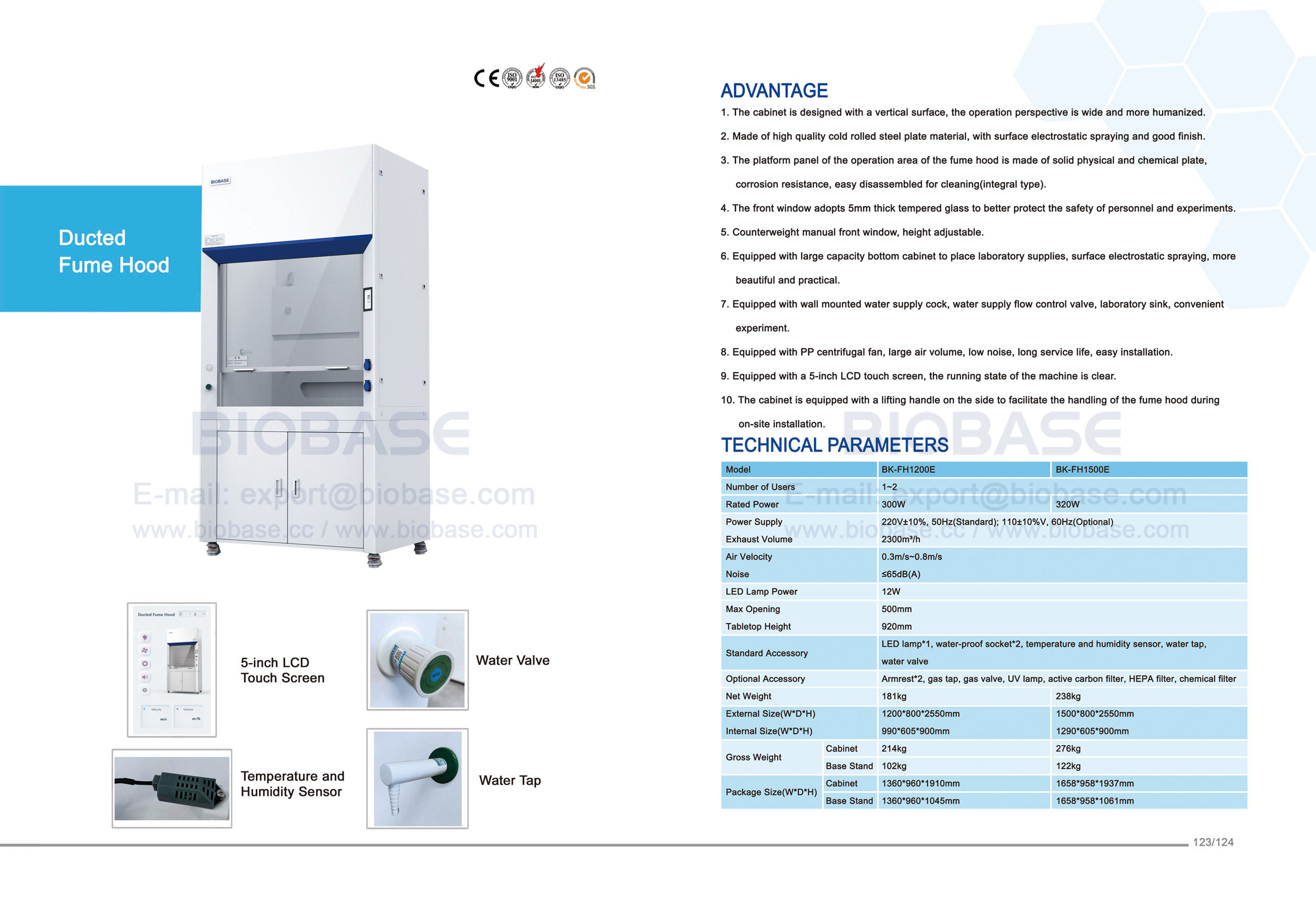

The Ducted Fume Hood is a robust laboratory safety device designed to capture and remove hazardous fumes, vapors, and particles during chemical experiments or industrial processes. By venting contaminated air through an external exhaust system, it provides a secure and efficient environment for handling toxic substances.
| Quantity: | |
|---|---|
BK-FH1200E BK-FH1500E
BIOBASE
Features:
1. The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized.
2. Made of high quality cold rolled steel plate material, with surface electrostatic spraying and good finish.
3. The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, corrosion resistance, easy disassembled for cleaning(integral type).
4. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.
5. Counterweight manual front window, height adjustable.
6. Equipped with large capacity bottom cabinet to place laboratory supplies, surface electrostatic spraying, more beautiful and practical.

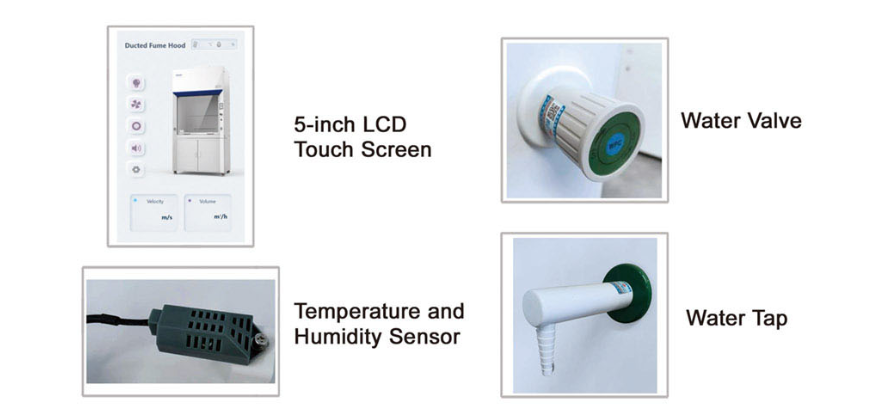

7. Equipped with wall mounted water supply cock, water supply flow control valve, laboratory sink, convenient experiment.
8. Equipped with PP centrifugal fan, large air volume, low noise, long service life, easy installation.
9. Equipped with a 5-inch LCD touch screen, the running state of the machine is clear.
10. The cabinet is equipped with a lifting handle on the side to facilitate the handling of the fume hood during on-site installation.
Technical Parameters:
Model | BK-FH1200E | BK-FH1500E | |
Number of Users | 1~2 | ||
Rated Power | 300W | 320W | |
Power Supply | 220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional) | ||
Exhaust Volume | 2300m³/h | ||
Air Velocity | 0.3m/s~0.8m/s | ||
Noise | ≤65dB(A) | ||
LED Lamp Power | 12W | ||
Max Opening | 500mm | ||
Tabletop Height | 920mm | ||
Standard Accessory | LED lamp*1, water-proof socket*2, temperature and humidity sensor, water supply cock, water supply flow control valve | ||
Optional Accessory | Armrest*2, gas supply cock, gas supply flow control valve | ||
Net Weight | 181kg | 238kg | |
External Size(W*D*H) | 1200*800*2550mm | 1500*800*2550mm | |
Internal Size(W*D*H) | 990*605*900mm | 1290*605*900mm | |
Gross Weight | Cabinet | 214kg | 276kg |
Base Stand | 102kg | 122kg | |
Package Size(W*D*H) | Cabinet | 1360*960*1910mm | 1658*958*1937mm |
Base Stand | 1360*960*1045mm | 1658*958*1061mm | |
