It is the new technical instrument in air condition workshop and clean workshop. And it is widely applicable in electron, chemicals, mechanism, medicine, university and lab. Fume hood can be used in operation of potential risk or unknown infected factors, and the experiment of flammability, explosive volatilization and narcotics. It can protect operator and samples.
| Quantity: | |
|---|---|

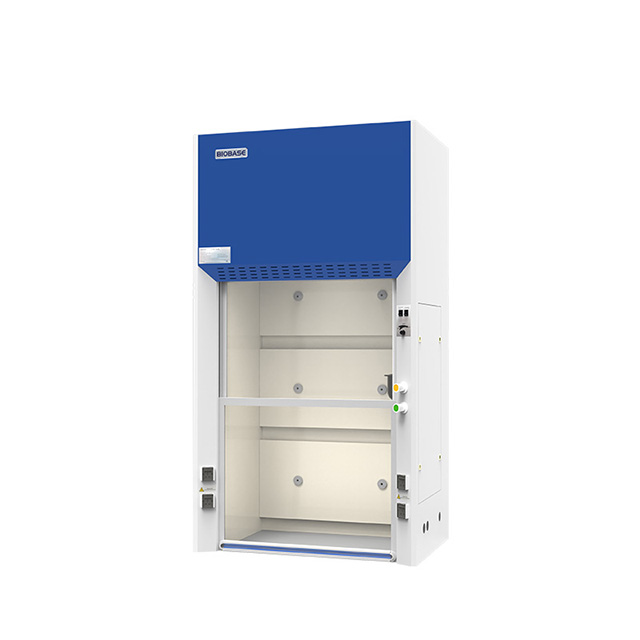

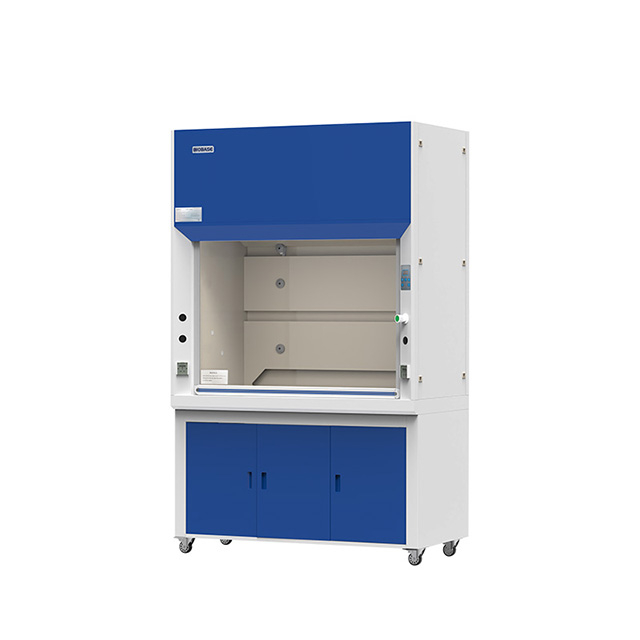

FH1200(W), FH1500(W), FH1800(W)
BIOBASE

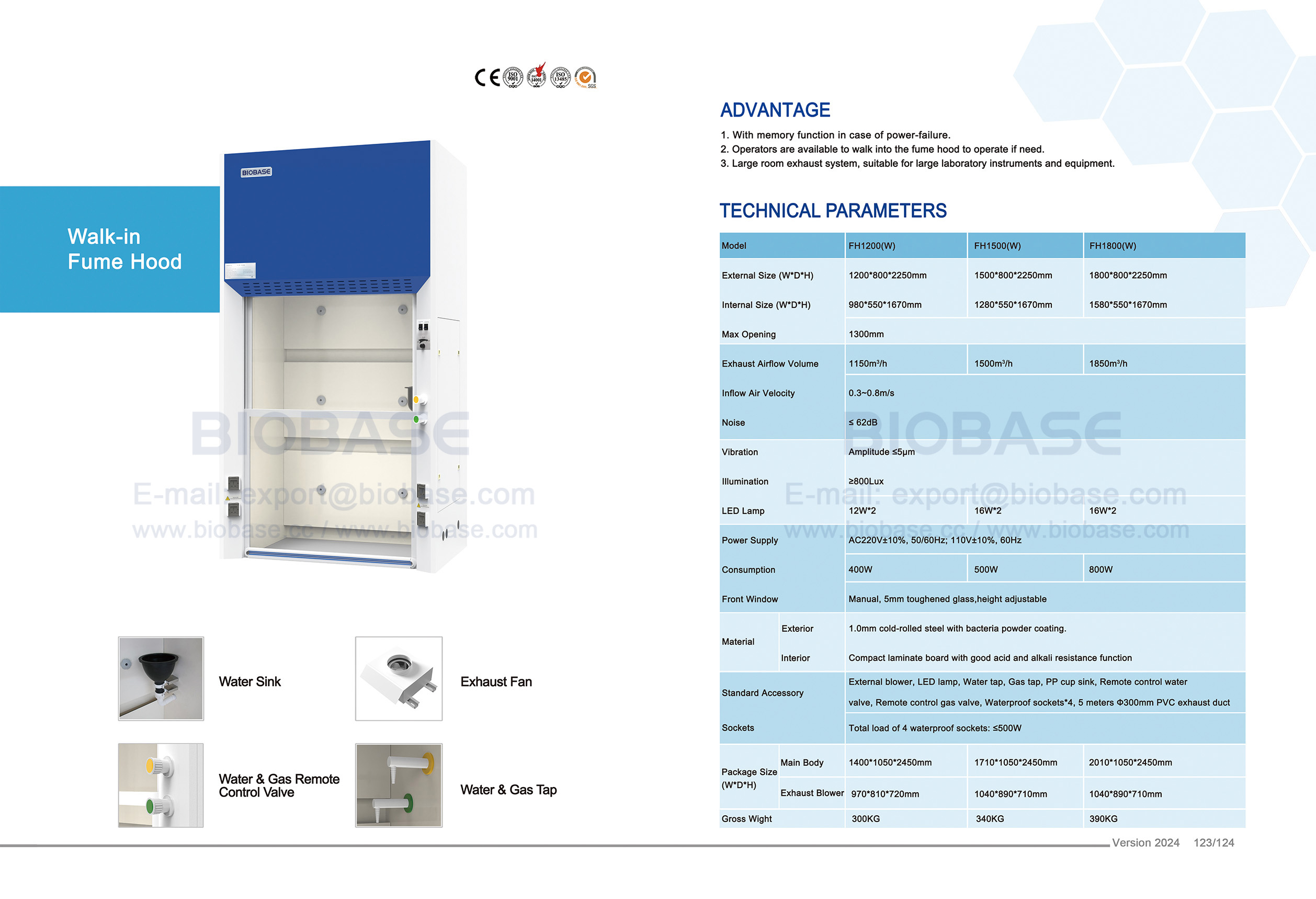

Fume Hood is used to protect lab environment and operator during general chemical applications .It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
Advantage:
1. With memory function in case of power-failure.
2. Operators are available to walk into the fume hood to operate if need.
3. Large room exhaust system, suitable for large laboratory instruments and equipment.
Models:
Model | FH1200(W) | FH1500(W) | FH1800(W) | |
External Size (W*D*H) | 1200*800*2250mm | 1500*800*2250mm | 1800*800*2250mm | |
Internal Size (W*D*H) | 980*550*1670mm | 1280*550*1670mm | 1580*550*1670mm | |
Max Opening | 1300mm | |||
Exhaust Airflow Volume | 1150m³/h | 1500m³/h | 1850m³/h | |
Inflow Air Velocity | 0.3~0.8m/s | |||
Noise | ≤62dB | |||
Vibration | Amplitude≤5μm | |||
Illumination | ≥800Lux | |||
Fluorescent Lamp | 12W*2 | 16W*2 | 16W*2 | |
Power Supply | AC220V±10%, 50/60Hz; 110 V±10%, 60Hz | |||
Consumption | 400W | 500W | 800W | |
Front Window | Manual, 5mm toughened glass, height adjustable | |||
Material | Exterior | 1.0mm cold-rolled steel with bacteria powder coating. | ||
Interior | Compact laminate board with good acid and alkali resistance function | |||

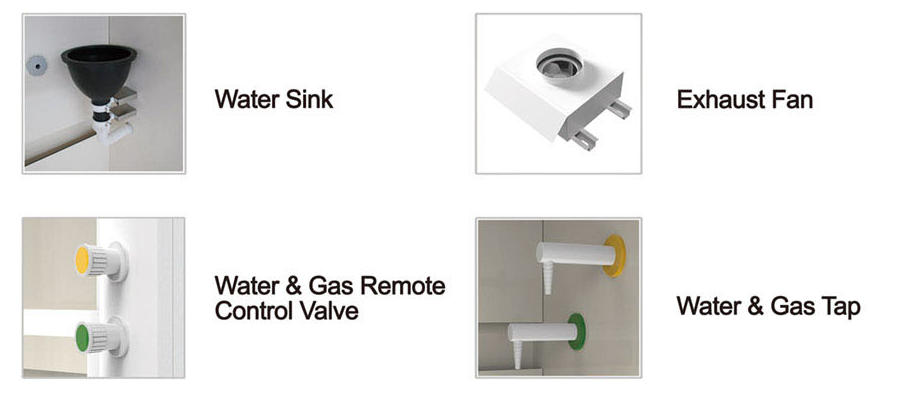

Standard Accessory | External blower, LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, 4.3 meters φ300mm PVC exhaust duct. | |||
Sockets | Total load of 4 waterproof sockets: ≤500W | |||
Package Size(W*D*H) | Main body | 1400*1050*2450mm | 1710*1050*2450mm | 2010*1050*2450mm |
Exhaust Blower | 970*810*720mm | 1040*890*710mm | 1040*890*710mm | |
Gross Weight | 300kg | 340kg | 390kg | |
Fume Hood is used to protect lab environment and operator during general chemical applications .It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
Advantage:
1. With memory function in case of power-failure.
2. Operators are available to walk into the fume hood to operate if need.
3. Large room exhaust system, suitable for large laboratory instruments and equipment.
Models:
Model | FH1200(W) | FH1500(W) | FH1800(W) | |
External Size (W*D*H) | 1200*800*2250mm | 1500*800*2250mm | 1800*800*2250mm | |
Internal Size (W*D*H) | 980*550*1670mm | 1280*550*1670mm | 1580*550*1670mm | |
Max Opening | 1300mm | |||
Exhaust Airflow Volume | 1150m³/h | 1500m³/h | 1850m³/h | |
Inflow Air Velocity | 0.3~0.8m/s | |||
Noise | ≤62dB | |||
Vibration | Amplitude≤5μm | |||
Illumination | ≥800Lux | |||
Fluorescent Lamp | 12W*2 | 16W*2 | 16W*2 | |
Power Supply | AC220V±10%, 50/60Hz; 110 V±10%, 60Hz | |||
Consumption | 400W | 500W | 800W | |
Front Window | Manual, 5mm toughened glass, height adjustable | |||
Material | Exterior | 1.0mm cold-rolled steel with bacteria powder coating. | ||
Interior | Compact laminate board with good acid and alkali resistance function | |||
Standard Accessory | External blower, LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, 4.3 meters φ300mm PVC exhaust duct. | |||
Sockets | Total load of 4 waterproof sockets: ≤500W | |||
Package Size(W*D*H) | Main body | 1400*1050*2450mm | 1710*1050*2450mm | 2010*1050*2450mm |
Exhaust Blower | 970*810*720mm | 1040*890*710mm | 1040*890*710mm | |
Gross Weight | 300kg | 340kg | 390kg | |
