The primary goal of the Fume Hood is to protect operators and laboratory environment from exposure to infectious aerosol and toxic gas which may be generated from the reaction during experiments.
| Quantity: | |
|---|---|
FH1000(E), FH1200(E), FH1500(E), FH1800(E)
BIOBASE

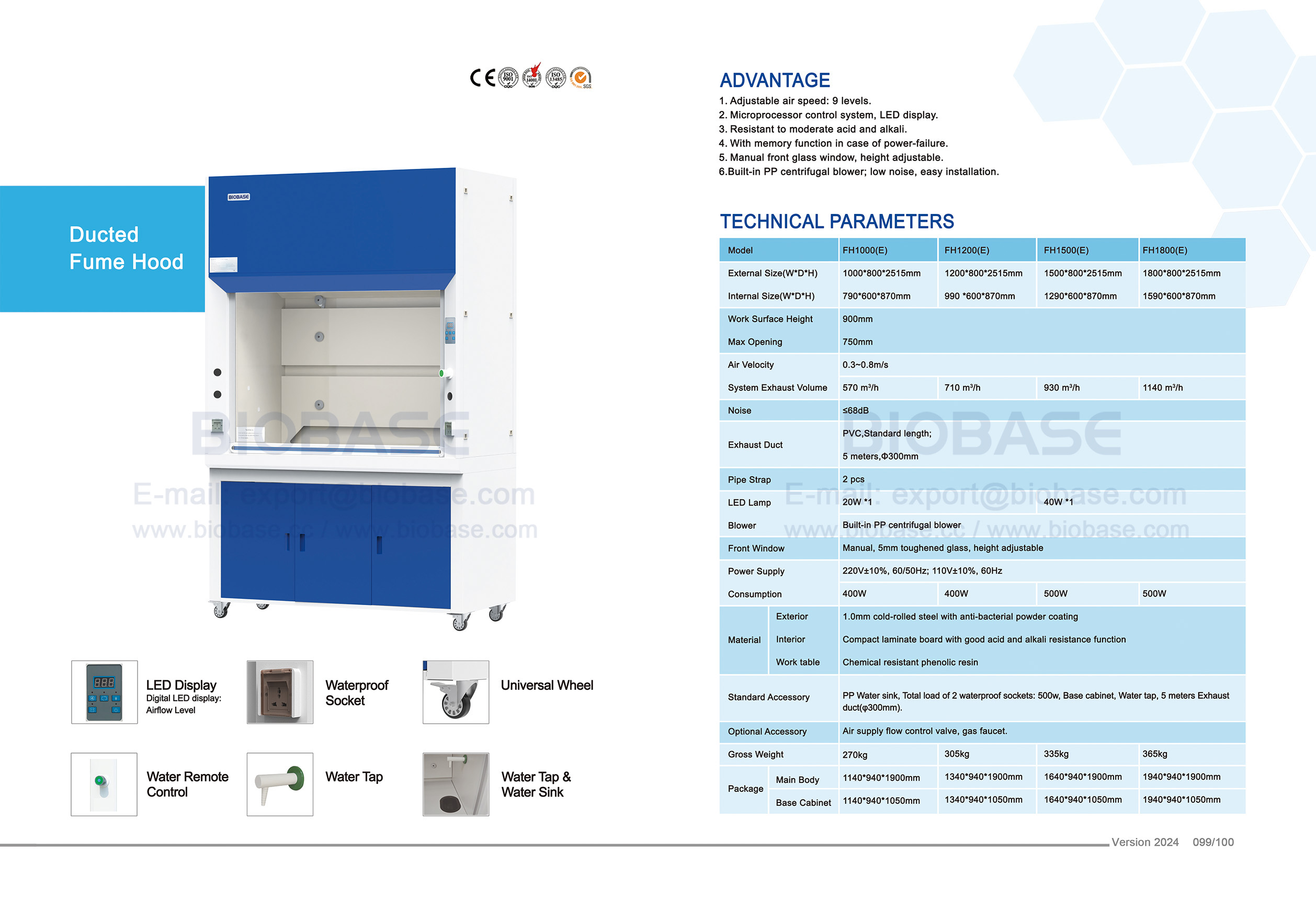

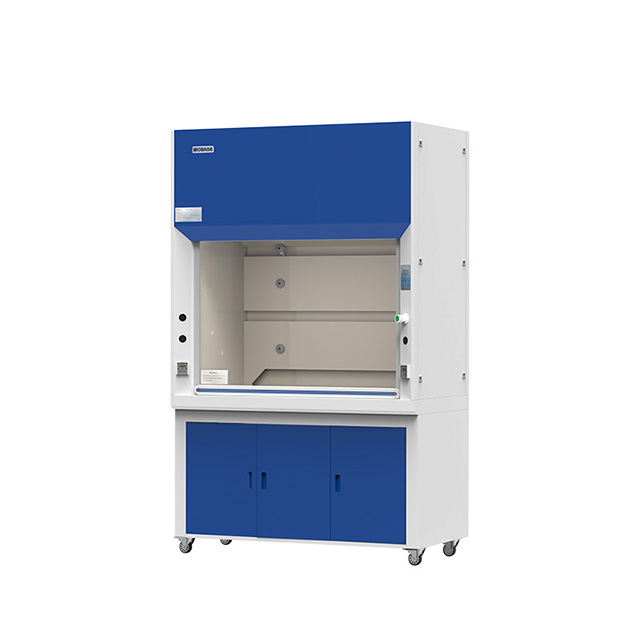

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
ADVANTAGE：
1. Adjustable air speed: 9 levels.
2. Microprocessor control system, LED display.
3. Resistant to moderate acid and alkali.
4. With memory function in case of power-failure.
5. Manual front glass window, height adjustable.
6.Built-in PP centrifugal blower; low noise, easy installation.
Models：
Model | FH1000(E) | FH1200(E) | FH1500(E) | FH1800(E) | ||||
External Size(W*D*H) | 1000*800*2515mm | 1200*800*2515mm | 1500*800*2515mm | 1800*800*2515mm | ||||
Instrument Size(W*D*H) | 790*600*870mm | 990*600*870mm | 1290*600*870mm | 1590*600*870mm | ||||
Work Surface Height | 900mm | |||||||
Max Opening | 750mm | |||||||
Air Velocity | 0.3~0.8m/s | |||||||
System Exhaust Volume | 570m³/h | 710m³/h | 930m³/h | 1140m³/h | ||||
Noise | ≤68dB | |||||||
Exhaust Duct | PVC,Standard length; 4.3 meters,Φ300mm | |||||||
Pipe Strap | 2pcs | |||||||
LED Lamp | 20W*1 | 40W*1 | ||||||
Blower | Built-in PP centrifugal blower | |||||||
Front Window | Manual,5mm toughened glass,height adjustable | |||||||
Consumption | 400W | 400W | 500W | 500W | ||||
Power Supply | AC220V±10%, 60Hz/50Hz;110V±10%, 60Hz | |||||||
Material | Exterior | 1.0mm cold-rolled steel with bacteria powder coating | ||||||
Interior | Compact laminate board with good acid and alkali resistance function | |||||||
Work table | Chemical resistant phenolic resin | |||||||

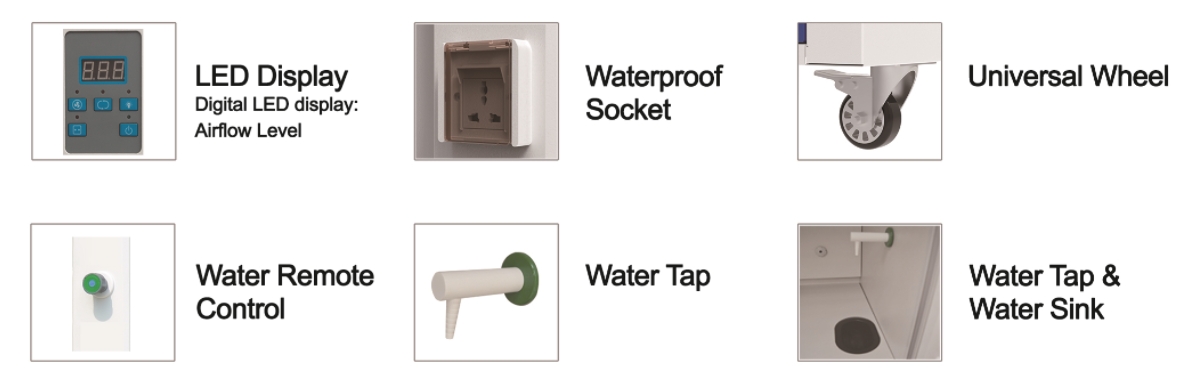

Standard Accessory | PP Water sink，Total load of 2 waterproof sockets: 500w,Base cabinet，Water tap,4 meters Exhaust duct(φ300mm). | |||||||
Optional Accessory | Air supply flow control valve, gas faucet. | |||||||
Gross Weight | 270kg | 305kg | 335kg | 365kg | ||||
Package | Main Body | 1140*940*1900mm | 1340*940*1900mm | 1640*940*1900mm | 1940*940*1900mm | |||
Base Cabinet | 1140*940*1050mm | 1340*940*1050mm | 1640*940*1050mm | 1940*940*1050mm | ||||
