Introduction:
In chemical laboratories, a lot of odors, moisture and corrosive substances will be generated during the experiment. To protect the safety of users and prevent the spread of pollutants in laboratories, fume hoods are used.
| Quantity: | |
|---|---|

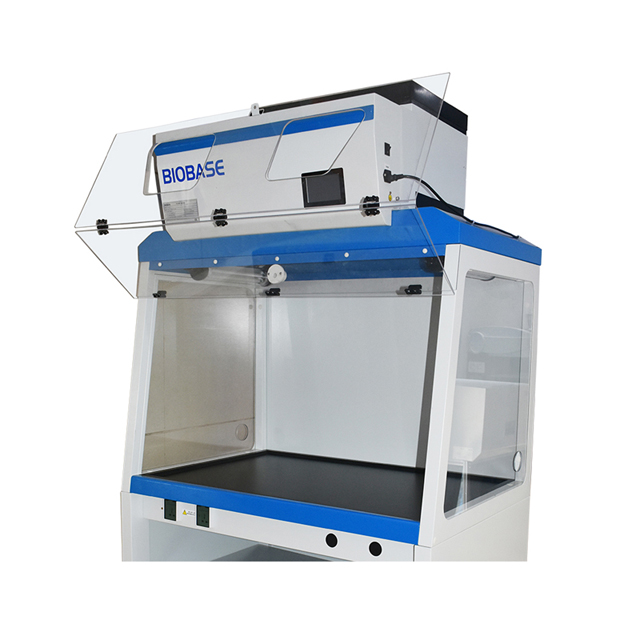

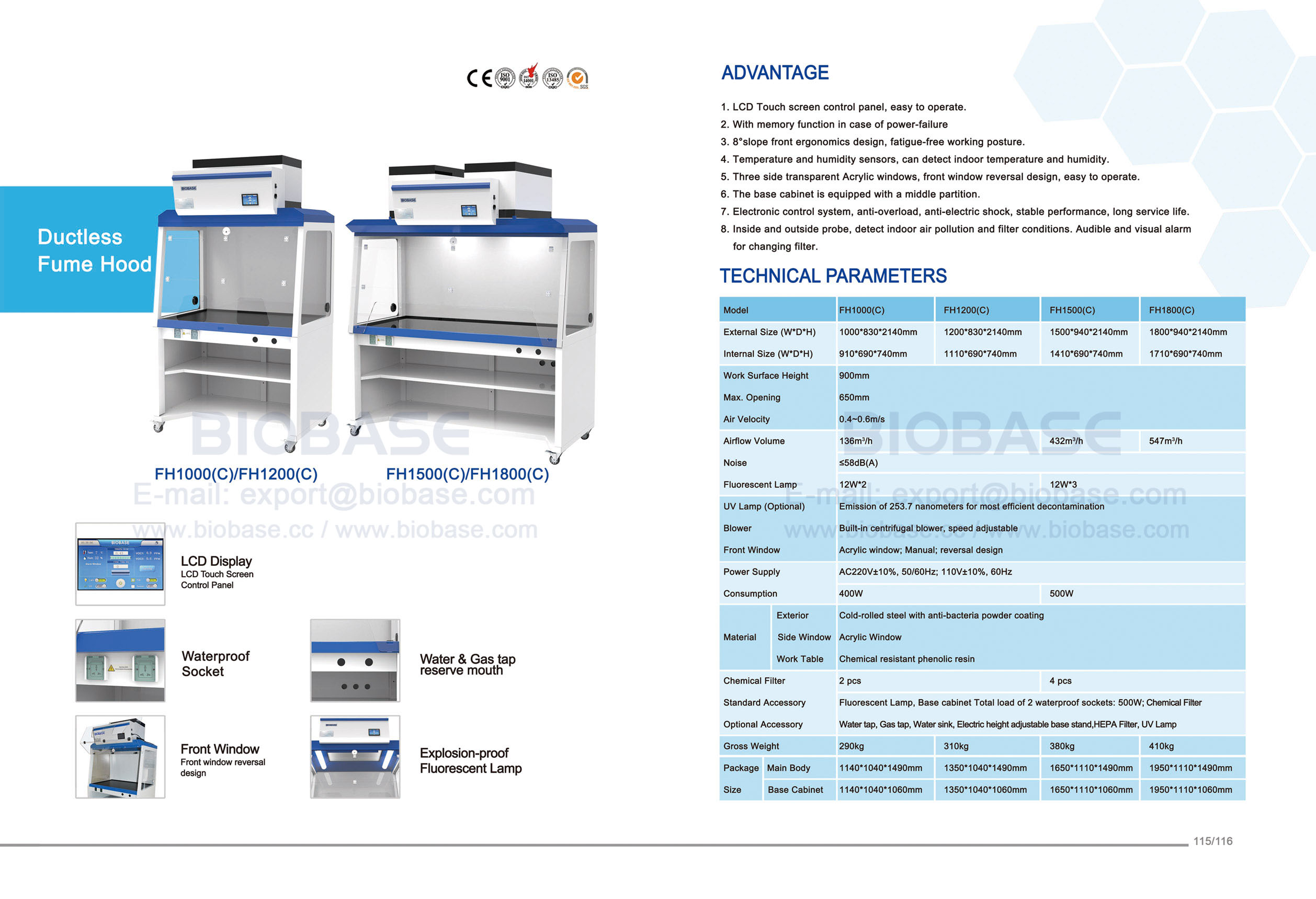

FH1000(C), FH1200(C), FH1500(C), FH1800(C)
BIOBASE
Features:
1. LCD touch screen control panel, easy to operate.
2. With memory function in case of power-failure.
3. 8°slope front ergonomics design, fatigue-free working posture.
4. Temperature and humidity sensors, can detect indoor temperature and humidity.
5. Three side transparent acrylic windows, front window reversal design, easy to operate.
6. The base cabinet is equipped with a middle partition.
7. Electronic control system, anti-overload, anti-electric shock, stable performance, long service life.
8. Inside and outside probe, detect indoor air pollution and filter conditions. Audible and visual alarm for changing filter.
Technical Parameters:
Model | FH1000(C) | FH1200(C) | FH1500(C) | FH1800(C) | |
External Size(W*D*H) | 1000*830*2140mm | 1200*830*2140mm | 1500*940*2140mm | 1800*940*2140mm | |
Internal Size(W*D*H) | 910*690*740mm | 1110*690*740mm | 1410*690*740mm | 1710*690*740mm | |
Work Surface Height | 900mm | ||||
Max.Opening | 650mm | ||||
Air Velocity | 0.4~0.6m/s | ||||
Airflow Volume | 136m³/h | 432m³/h | 547m³/h | ||
Noise | ≤58dB(A) | ||||
Fluorescent Lamp | 12W*2 | 12W*3 | |||
UV Lamp(optional) | Emission of 253.7 nanometers for most efficient decontamination | ||||
Blower | Built-in centrifugal blower, speed adjustable | ||||
Front Window | Acrylic window, Manual, Reversal design | ||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Consumption | 400W | 500W | |||
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating | |||
Side Window | Acrylic window | ||||
Work Table | Chemical resistant phenolic resin | ||||
Chemical Filter | 2pcs | 4pcs | |||
Standard Accessories | Fluorescent lamp, Base cabinet, Total load of 2 waterproof sockets: 500W, Chemical filter | ||||
Optional Accessory | Water tap, Gas tap, Water sink, Electric height, Adjustable base stand, HEPA Filter, UV Lamp | ||||
Gross Weight | 290kg | 310kg | 380kg | 410kg | |
Package Size | Main Body | 1140*1040*1490mm | 1350*1040*1490mm | 1650*1110*1490mm | 1950*1110*1490mm |
Base Cabinet | 1140*1040*1060mm | 1350*1040*1060mm | 1650*1110*1060mm | 1950*1100*1060mm | |
Features:
1. LCD touch screen control panel, easy to operate.
2. With memory function in case of power-failure.
3. 8°slope front ergonomics design, fatigue-free working posture.
4. Temperature and humidity sensors, can detect indoor temperature and humidity.
5. Three side transparent acrylic windows, front window reversal design, easy to operate.
6. The base cabinet is equipped with a middle partition.
7. Electronic control system, anti-overload, anti-electric shock, stable performance, long service life.
8. Inside and outside probe, detect indoor air pollution and filter conditions. Audible and visual alarm for changing filter.
Technical Parameters:
Model | FH1000(C) | FH1200(C) | FH1500(C) | FH1800(C) | |
External Size(W*D*H) | 1000*830*2140mm | 1200*830*2140mm | 1500*940*2140mm | 1800*940*2140mm | |
Internal Size(W*D*H) | 910*690*740mm | 1110*690*740mm | 1410*690*740mm | 1710*690*740mm | |
Work Surface Height | 900mm | ||||
Max.Opening | 650mm | ||||
Air Velocity | 0.4~0.6m/s | ||||
Airflow Volume | 136m³/h | 432m³/h | 547m³/h | ||
Noise | ≤58dB(A) | ||||
Fluorescent Lamp | 12W*2 | 12W*3 | |||
UV Lamp(optional) | Emission of 253.7 nanometers for most efficient decontamination | ||||
Blower | Built-in centrifugal blower, speed adjustable | ||||
Front Window | Acrylic window, Manual, Reversal design | ||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Consumption | 400W | 500W | |||
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating | |||
Side Window | Acrylic window | ||||
Work Table | Chemical resistant phenolic resin | ||||
Chemical Filter | 2pcs | 4pcs | |||
Standard Accessories | Fluorescent lamp, Base cabinet, Total load of 2 waterproof sockets: 500W, Chemical filter | ||||
Optional Accessory | Water tap, Gas tap, Water sink, Electric height, Adjustable base stand, HEPA Filter, UV Lamp | ||||
Gross Weight | 290kg | 310kg | 380kg | 410kg | |
Package Size | Main Body | 1140*1040*1490mm | 1350*1040*1490mm | 1650*1110*1490mm | 1950*1110*1490mm |
Base Cabinet | 1140*1040*1060mm | 1350*1040*1060mm | 1650*1110*1060mm | 1950*1100*1060mm | |
