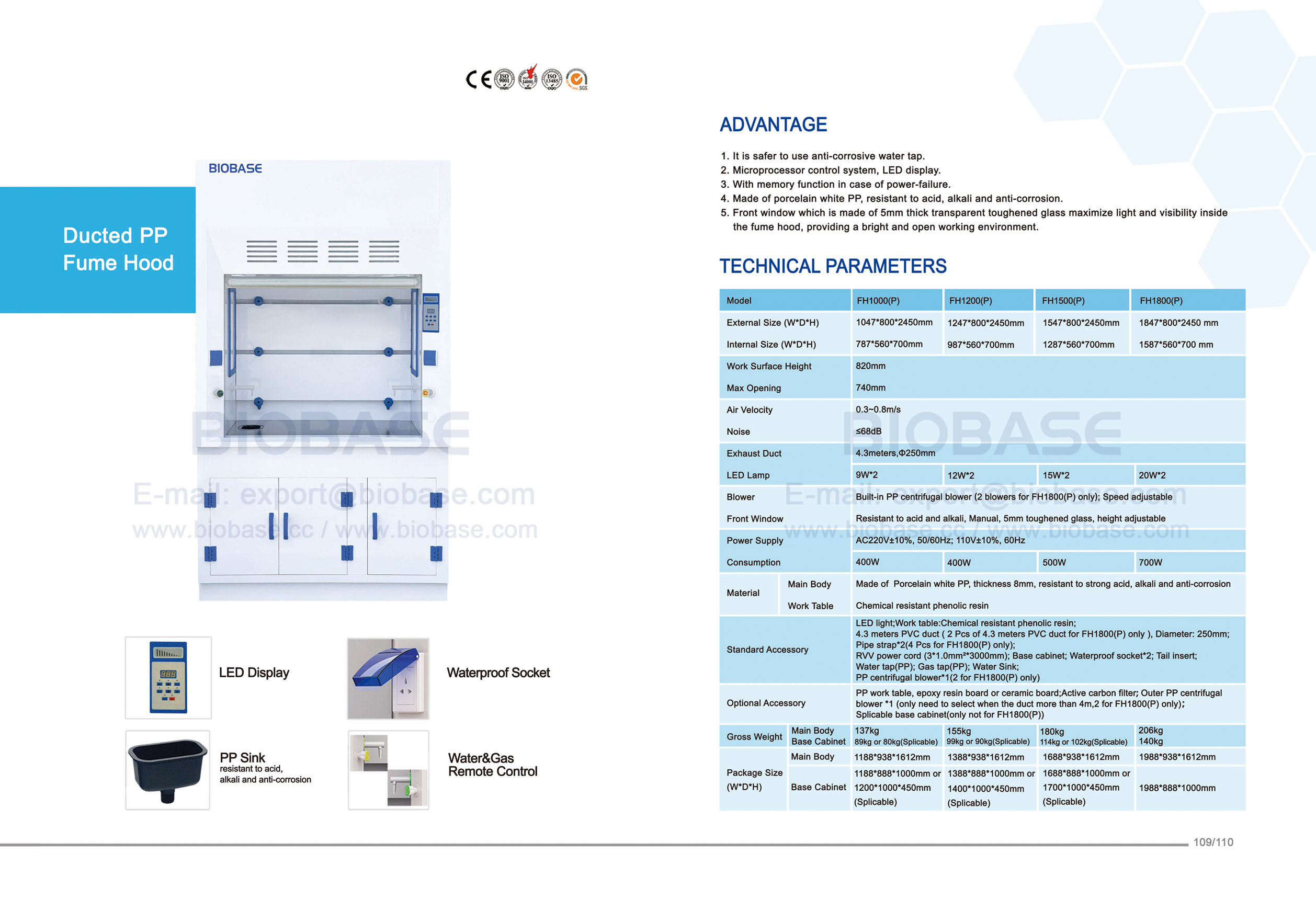

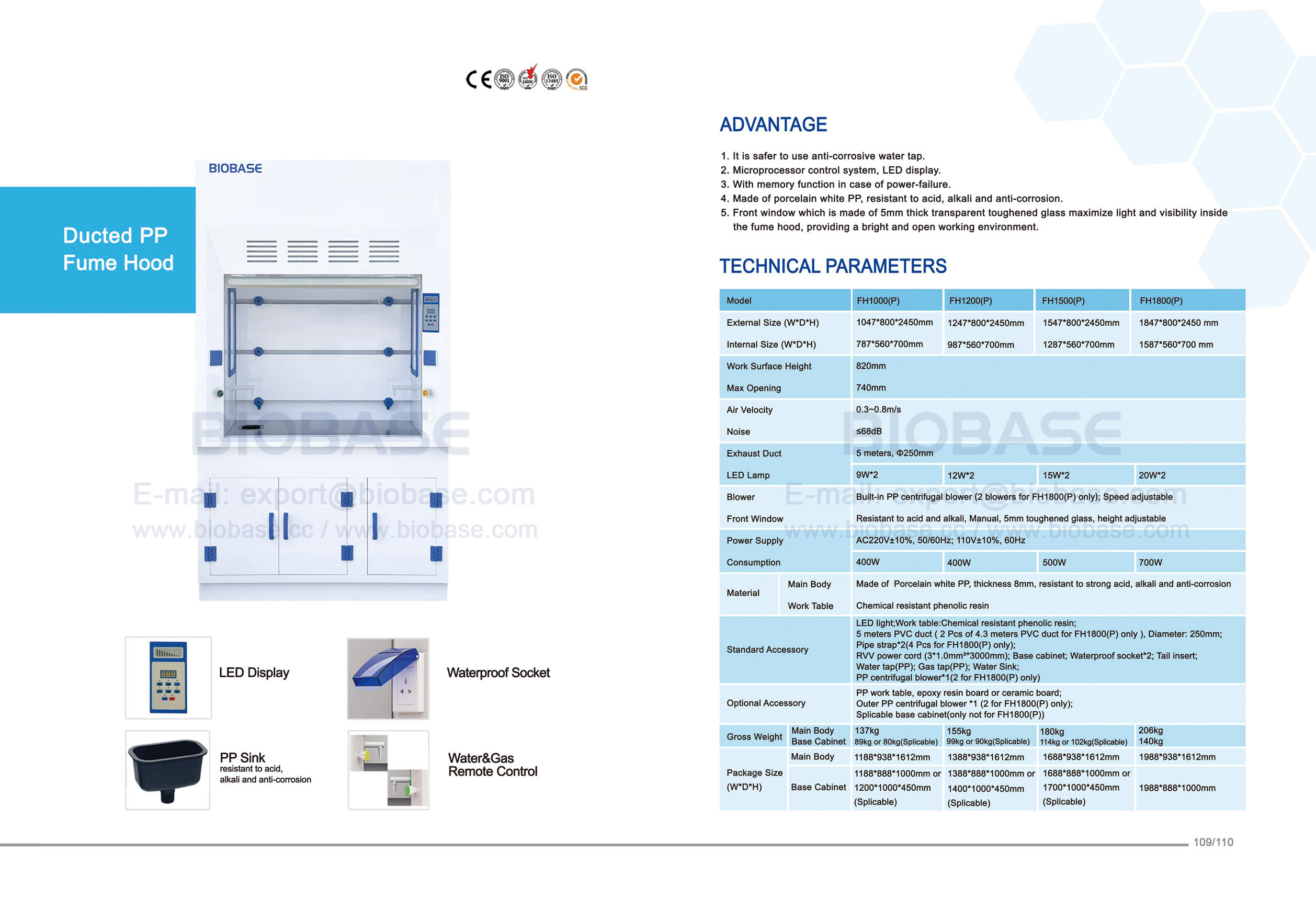

Ducted Fume Hood FH(P)

It is a new type of technical equipment for air-conditioned workshop and clean workshop. Widely used in electronics, chemical, machinery, medicine, universities, laboratories and other fields. The fume hood can be used for the operation of potentially dangerous or unknown infection factors, as well as the experiment of strong acid, strong alkali, strong corrosive and volatile. Protect operator and sample safety.

Availability:
Quantity:
  • FH1000(P), FH1200(P), FH1500(P), FH1800(P)
  • BIOBASE

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.

13

Advantage:

1. It is safer to use anti-corrosive water tap.

2. Microprocessor control system, LED display

3. With memory function in case of power-failure

4. Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.

5. Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

Models:

Model

FH1000(P)

FH1200(P)

FH1500(P)

FH1800(P)

External Size (W*D*H)

1047*800*2450mm

1247*800*2450mm

1547*800*2450mm

1847*800*2450 mm

Internal Size (W*D*H)

787*560*700mm

987*560*700mm

1287*560*700mm

1587*560*700 mm

Work Surface Height

820mm

Max Opening

740mm

Air Velocity

0.3~0.8m/s

Noise

≤68dB

Exhaust Duct

4.3 meters, φ250mm

LED Lamp

24W*1

24W*1

30W*1

386W*1

Blower

Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable

Front Window

Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable.

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

400W

400W

500W

700W

Material

Main Body

Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.

Work Table

Chemical resistant phenolic resin

Standard Accessory

LED light;

Work table: Chemical resistant phenolic resin;

4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm;

Pipe strap*2(4 pcs for FH1800(P) only);

RVV power cord(3*1.0mm²*3000mm);

Base cabinet;

Waterproof socked*2;

Tail insert;

Water tap(PP);

Gas tap(PP);

Water Sink;

PP centrifugal blower*1(2 for FH1800(P) only)

Optional Accessory

PP work table, epoxy resin board or ceramic board;

Active carbon filter;

Outer PVC centrifugal blower*1(only need to select when the duct more than 4m, 2 for FH1800(P) only);

Splicable base cabinet(only not for FH1800(P) )

Gross Weight

137kg

155kg

180kg

206kg

Package Size
(W*D*H)

Main Body

1188*938*1612mm

1388*938*1612mm

1688*938*1612mm

1988*938*1612mm

Base Cabinet

1188*888*1000mm or

1200*1000*450mm(Splicable)

1388*888*1000mm or

1400*1000*450mm(Splicable)

1688*888*1000mm or 1700*1000*450mm(Splicable)

1988*888*1000mm
