Introduction:
Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower. Therefore, contaminated fumes, vapors, toxic gasses, aerosol and corrosive substance which are probably generated during experiments could be prevented from spreading to the operator or into the laboratory room. In addition, the polluted air could be purified by the active carbon filter (optional) before exhausting through the duct. Thus, the outdoor environment could also be protected.
Availability: | |
---|---|
Quantity: | |

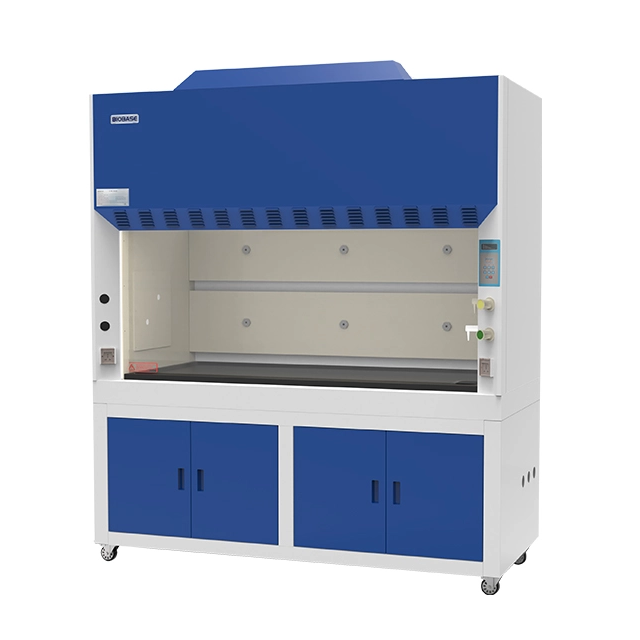

FH1000(A), FH1200(A), FH1500(A), FH1800(A)
BIOBASE

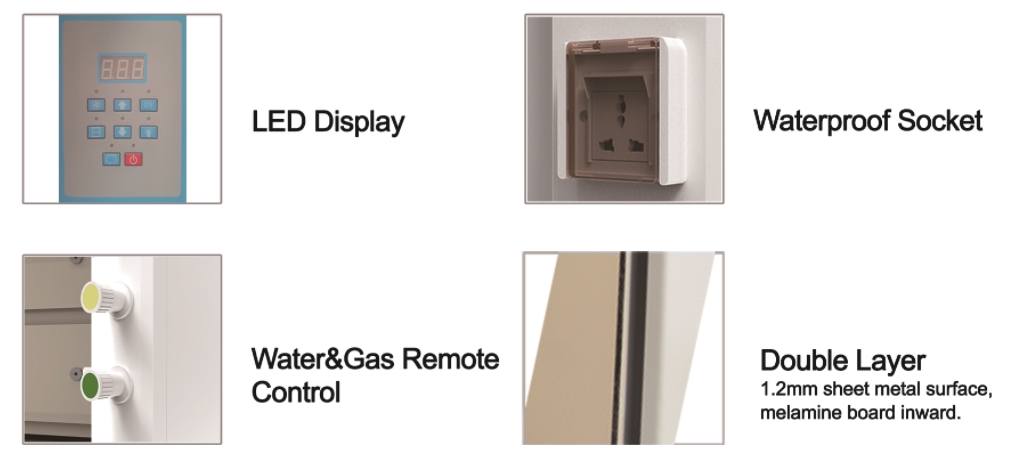

Features:
1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed: 9 levels.
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure.
Technical Parameters:
Model | FH1000(A) | FH1200(A) | FH1500(A) | FH1800(A) | |
External Size(W*D*H) | 1040*800*2200mm | 1240*800*2200mm | 1540*800*2200mm | 1840*800*2200mm | |
Internal Size(W*D*H) | 820*670*730mm | 1020*670*730mm | 1320*670*730mm | 1620*670*730mm | |
Work Surface Height | 850mm | ||||
Max Opening | 520mm | ||||
Air Velocity | 0.3~0.8m/s | ||||
Exhaust Air Volume | 590m³/h | 730m³/h | 950m³/h | 1170m³/h | |
Noise | ≤68dB | ||||
Exhaust Duct | PVC, Standard length: 4 meters | ||||
Φ300mm | |||||
LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 | |
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||
Blower | Built-in centrifugal blower, Speed adjustable | ||||
Front Window | 5mm toughened glass, Motorized, Height adjustable | ||||
Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Consumption | 400W | 400W | 500W | 500W | |
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating | |||
Interior | Compact laminate board with good acid and alkali resistance function | ||||
Work Table | Chemical resistant phenolic resin | ||||
Standard Accessory | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | ||||
Total load of 2 waterproof sockets: 500W | |||||
4.3 meters PVC exhaust duct, pipe strap*2 | |||||
Optional Accessory | Active carbon filter, HEPA filter | ||||
Gross Weight | 286kg | 317kg | 350kg | 400kg | |
Package | Main Body | 1190*990*1690mm | 1390*990*1690 mm | 1690*990*1690mm | 1990*990*1690mm |
Base Cabinet | 1190*990*900mm | 1390*990*900mm | 1690*990*900mm | 1990*990*900mm |
Model | FH1000(A) | FH1200(A) | FH1500(A) | FH1800(A) | |
External Size(W*D*H) | 1040*800*2200mm | 1240*800*2200mm | 1540*800*2200mm | 1840*800*2200mm | |
Internal Size(W*D*H) | 820*670*730mm | 1020*670*730mm | 1320*670*730mm | 1620*670*730mm | |
Work Surface Height | 850mm | ||||
Max Opening | 520mm | ||||
Air Velocity | 0.3~0.8m/s | ||||
Noise | ≤68dB | ||||
Exhaust Duct | PVC, Standard length: 4 meters | ||||
Φ300mm | |||||
LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 | |
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||
Blower | Built-in centrifugal blower, Speed adjustable | ||||
Front Window | 5mm toughened glass, Motorized, Height adjustable | ||||
Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Consumption | 400W | 400W | 500W | 500W | |
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating | |||
Interior | Compact laminate board with good acid and alkali resistance function | ||||
Work Table | Chemical resistant phenolic resin | ||||
Standard Accessory | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | ||||
Total load of 2 waterproof sockets: 500W | |||||
4.3 meters PVC exhaust duct, pipe strap*2 | |||||
Optional Accessory | Active carbon filter, HEPA flter | ||||
Gross Weight | 286kg | 317kg | 350kg | 400kg | |
Package | Main Body | 1190*990*1690mm | 1390*990*1690mm | 1690*990*1690mm | 1990*990*1690mm |
Base Cabinet | 1190*990*900mm | 1390*990*900mm | 1690*990*900mm | 1990*990*900mm |
Features:
1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed: 9 levels.
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure.
Technical Parameters:
Model | FH1000(A) | FH1200(A) | FH1500(A) | FH1800(A) | |
External Size(W*D*H) | 1040*800*2200mm | 1240*800*2200mm | 1540*800*2200mm | 1840*800*2200mm | |
Internal Size(W*D*H) | 820*670*730mm | 1020*670*730mm | 1320*670*730mm | 1620*670*730mm | |
Work Surface Height | 850mm | ||||
Max Opening | 520mm | ||||
Air Velocity | 0.3~0.8m/s | ||||
Exhaust Air Volume | 590m³/h | 730m³/h | 950m³/h | 1170m³/h | |
Noise | ≤68dB | ||||
Exhaust Duct | PVC, Standard length: 4 meters | ||||
Φ300mm | |||||
LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 | |
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||
Blower | Built-in centrifugal blower, Speed adjustable | ||||
Front Window | 5mm toughened glass, Motorized, Height adjustable | ||||
Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Consumption | 400W | 400W | 500W | 500W | |
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating | |||
Interior | Compact laminate board with good acid and alkali resistance function | ||||
Work Table | Chemical resistant phenolic resin | ||||
Standard Accessory | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | ||||
Total load of 2 waterproof sockets: 500W | |||||
4.3 meters PVC exhaust duct, pipe strap*2 | |||||
Optional Accessory | Active carbon filter, HEPA filter | ||||
Gross Weight | 286kg | 317kg | 350kg | 400kg | |
Package | Main Body | 1190*990*1690mm | 1390*990*1690 mm | 1690*990*1690mm | 1990*990*1690mm |
Base Cabinet | 1190*990*900mm | 1390*990*900mm | 1690*990*900mm | 1990*990*900mm |
Model | FH1000(A) | FH1200(A) | FH1500(A) | FH1800(A) | |
External Size(W*D*H) | 1040*800*2200mm | 1240*800*2200mm | 1540*800*2200mm | 1840*800*2200mm | |
Internal Size(W*D*H) | 820*670*730mm | 1020*670*730mm | 1320*670*730mm | 1620*670*730mm | |
Work Surface Height | 850mm | ||||
Max Opening | 520mm | ||||
Air Velocity | 0.3~0.8m/s | ||||
Noise | ≤68dB | ||||
Exhaust Duct | PVC, Standard length: 4 meters | ||||
Φ300mm | |||||
LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 | |
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||
Blower | Built-in centrifugal blower, Speed adjustable | ||||
Front Window | 5mm toughened glass, Motorized, Height adjustable | ||||
Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Consumption | 400W | 400W | 500W | 500W | |
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating | |||
Interior | Compact laminate board with good acid and alkali resistance function | ||||
Work Table | Chemical resistant phenolic resin | ||||
Standard Accessory | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | ||||
Total load of 2 waterproof sockets: 500W | |||||
4.3 meters PVC exhaust duct, pipe strap*2 | |||||
Optional Accessory | Active carbon filter, HEPA flter | ||||
Gross Weight | 286kg | 317kg | 350kg | 400kg | |
Package | Main Body | 1190*990*1690mm | 1390*990*1690mm | 1690*990*1690mm | 1990*990*1690mm |
Base Cabinet | 1190*990*900mm | 1390*990*900mm | 1690*990*900mm | 1990*990*900mm |

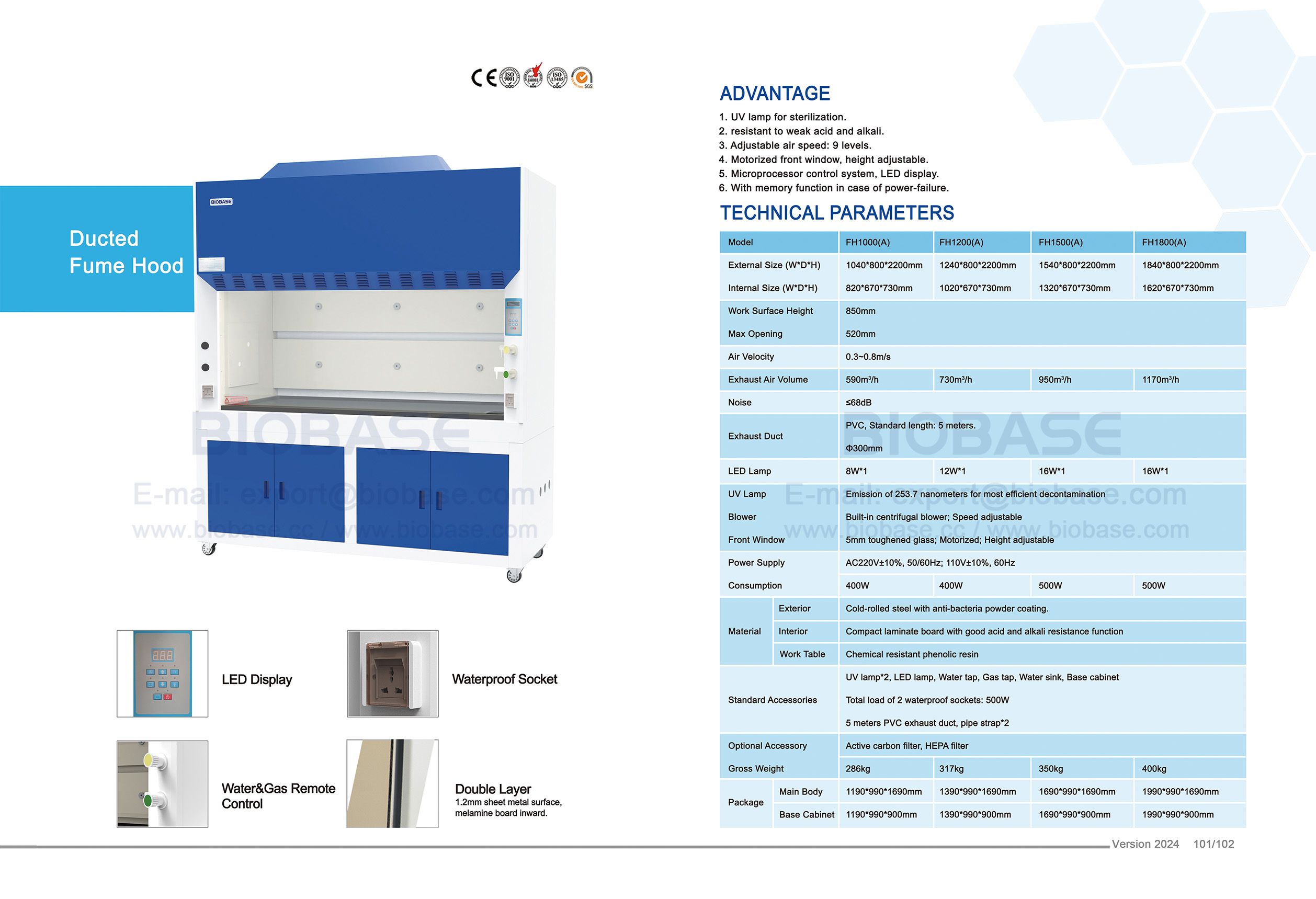

Download: 101-102 Fume Hood--FH1000(A).jpg
