Introduction:

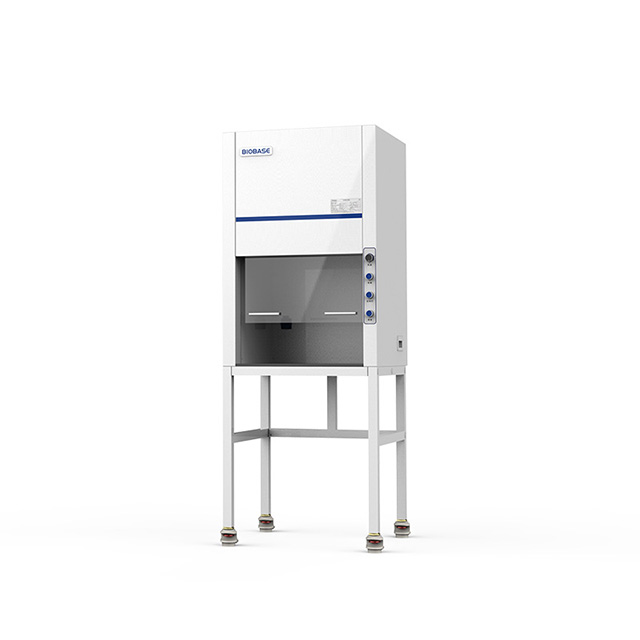

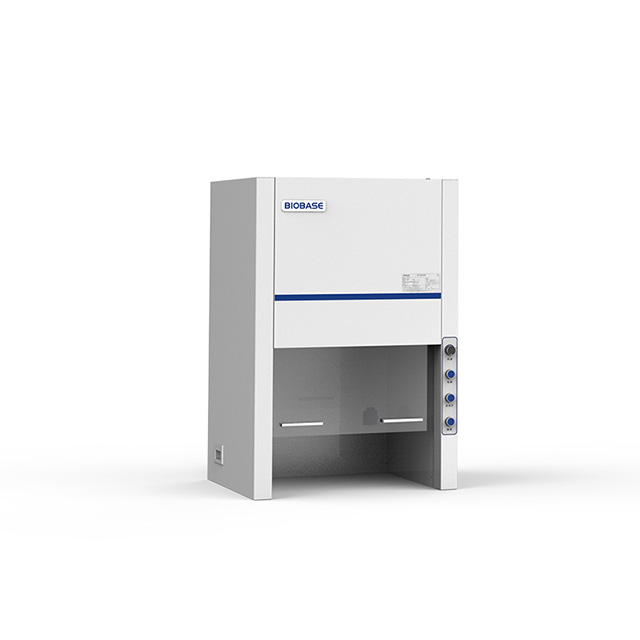

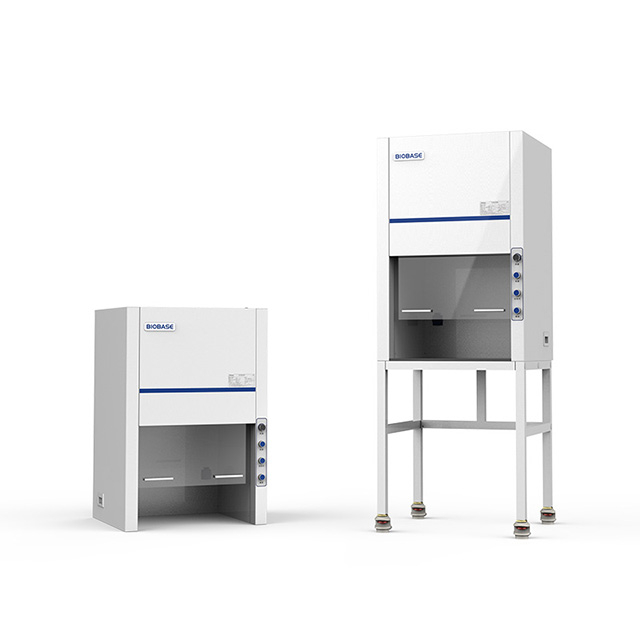

The Ducted Fume Hood is a robust laboratory safety device designed to capture and remove hazardous fumes, vapors, and particles during chemical experiments or industrial processes. By venting contaminated air through an external exhaust system, it provides a secure and efficient environment for handling toxic substances.
| Quantity: | |
|---|---|
BK-FH700
BIOBASE
Features:
1. The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized.
2. Made of high quality cold rolled steel plate material, surface electrostatic spraying, with good finish.
3. The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, which is resistant to acid and alkali corrosion and can be disassembled for easy cleaning(integral type).
4. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.
5. Counterweight manual front window, height adjustable.
6. The base bracket and fume castor integrated design, safely moved through the casters, also well fixed and levelled.
7. Equipped with PP axial flow fan, large air volume, low noise, long service life, easy installation.
8. The fan can be stepless speed regulation, the function button is push-button switch, stable performance.
9. The side of the cabinet body is equipped with lifting handles to facilitate carrying.
Technical Parameters:
Model | BK-FH700 | |
Number of Users | Single | |
Rated Power | 95W(Not including socket load power, load power cannot exceed 500W) | |
Power Supply | 220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional) | |
Exhaust Volume | 1225m³/h | |
Air Velocity | 0.3m/s～0.8m/s | |
Noise | ≤65dB(A) | |
LED Lamp | 4W | |
Max Opening | 410mm(Integral Type) | |
Tabletop Height | 810mm(Integral Type) | |

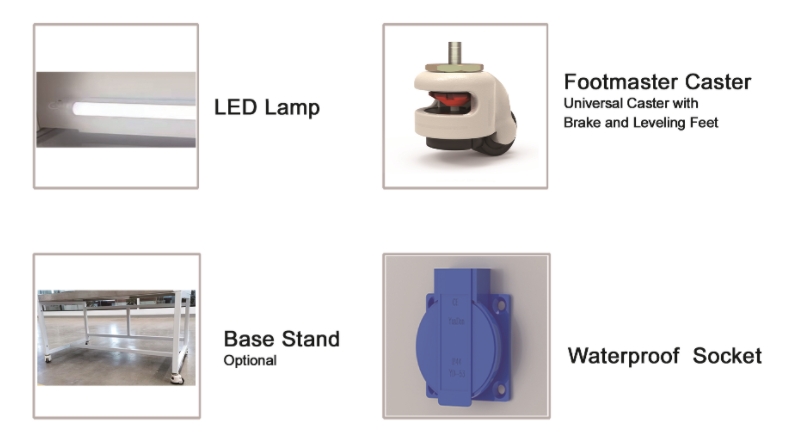

Standard Accessory | LED lamp, National standard three core water proof socket | |
Optional Accessory | Base stand, Solid physical and chemical board | |
Net Weight | Desktop Type | 60kg |
Integral Type | 80kg | |
Gross Weight | Desktop Type | 78kg |
Integral Type | 100kg | |
External Size(W*D*H) | Desktop Type | 700*650*1050mm |
Integral Type | 700*650*1850mm | |
Internal Size(W*D*H) | 580*510*687mm | |
Package Size(W*D*H) | Desktop Type | 805*840*1250mm |
Integral Type | 960*840*1250mm | |
