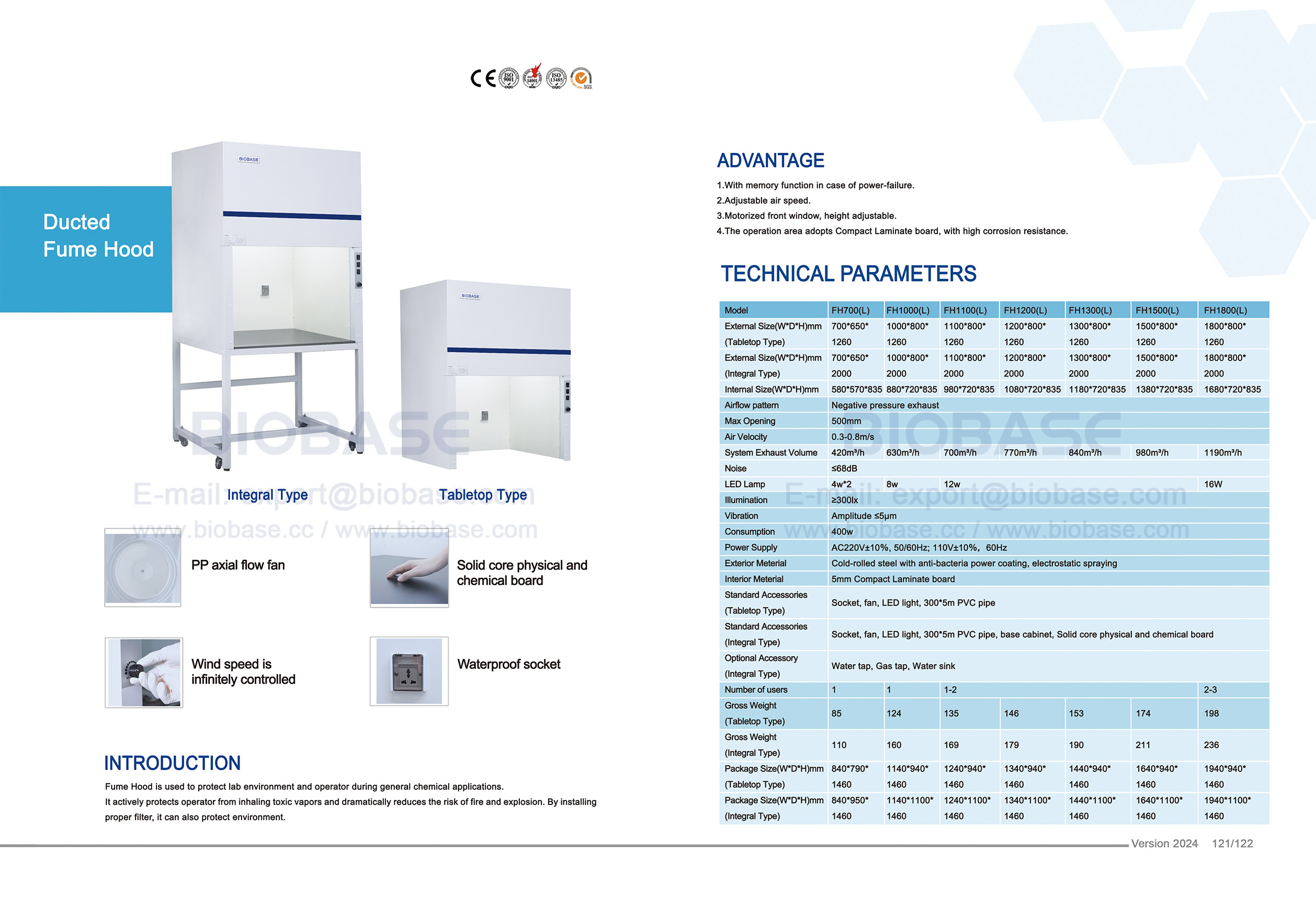

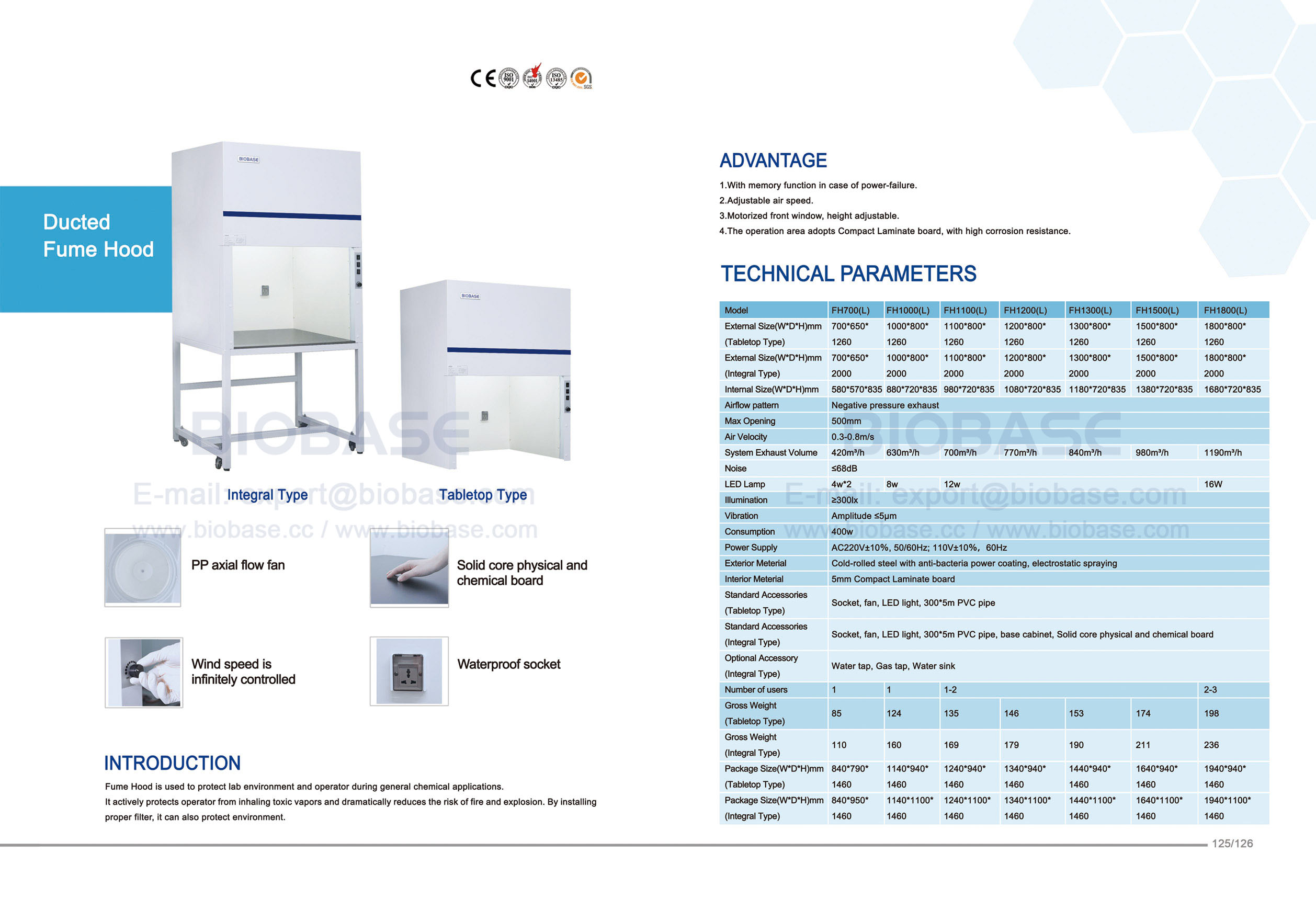

INTRODUCTION
Fume hood is used to protect the lab environment and operator during general chemical applications.
It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
| Quantity: | |
|---|---|
FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L)
BIOBASE
Advantage：
1.With memory function in case of power-failure.
2.Adjustable air speed.
3.Motorized front window, height adjustable.
4.The operation area adopts Compact Laminate board, with high corrosion resistance.
TECHNICAL PARAMETERS:
| Model | FH700(L) | FH1000(L) | FH1100(L) | FH1200(L) | FH1300(L) | FH1500(L) | FH1800(L) |
| External Size（W*D*H)mm （Tabletop Type） | 700*650*1260 | 1000*800*1260 | 1100*800*1260 | 1200*800*1260 | 1300*800*1260 | 1500*800*1260 | 1800*800*1260 |
| External Size（W*D*H)mm （Integral Type） | 700*650*2000 | 1000*800*2000 | 1100*800*2000 | 1200*800*2000 | 1300*800*2000 | 1500*800*2000 | 1800*800*2000 |
| Internal Size(W*D*H)mm | 580*570*835 | 880*720*835 | 980*720*835 | 1080*720*835 | 1180*720*835 | 1380*720*835 | 1680*720*835 |
| Airflow pattern | Negative pressure exhaust | ||||||
| Max Opening | 500mm | ||||||
| Air Velocity | 0.3-0.8m/s | ||||||
| System Exhaust Volume | 420m³/h | 630m³/h | 700m³/h | 770m³/h | 840m³/h | 980m³/h | 1190m³/h |
| Noise | ≤68dB | ||||||
| LED Lamp | 4w*2 | 8w | 12w | 12w | 12w | 12w | 16w |
| Illumination | ≥300lx | ||||||
| Vibration | Amplitude ≤5μm | ||||||
| Consumption | 400w | ||||||
| Power Supply | AC220V±10％，50/60Hz；110V±10％，60Hz | ||||||
| Exterior Meterial | Cold-rolled steel with anti-bacteria power coating，electrostatic spraying | ||||||
| Interior Meterial | 5mm Compact Laminate board | ||||||
| Standard Accessories（Tabletop Type） | Socket, fan, LED light, 300*4mPVC pipe | ||||||
| Standard Accessories（Integral Type） | Socket, fan, LED light, 300*4mPVC pipe，base cabinet，Solid core physical and chemical board | ||||||
| Optional Accessory（Integral Type） | Water tap，Gas tap，Water sink | ||||||
| Number of users | 1 | 1 | 1-2 | 1-2 | 1-2 | 1-2 | 2-3 |
| Gross Weight（Tabletop Type） | 85 | 124 | 135 | 146 | 153 | 174 | 198 |
| Gross Weight（Integral Type） | 110 | 160 | 169 | 179 | 190 | 211 | 236 |
| Package Size（W*D*H)mm （Tabletop Type） | 840*790*1460 | 1140*940*1460 | 1240*940*1460 | 1340*940*1460 | 1440*940*1460 | 1640*940*1460 | 1940*940*1460 |
| Package Size（W*D*H)mm （Integral Type） | 840*950*1460 | 1140*1100*1460 | 1240*1100*1460 | 1340*1100*1460 | 1440*1100*1460 | 1640*1100*1460 | 1940*1100 |
Advantage：
1.With memory function in case of power-failure.
2.Adjustable air speed.
3.Motorized front window, height adjustable.
4.The operation area adopts Compact Laminate board, with high corrosion resistance.
TECHNICAL PARAMETERS:
| Model | FH700(L) | FH1000(L) | FH1100(L) | FH1200(L) | FH1300(L) | FH1500(L) | FH1800(L) |
| External Size（W*D*H)mm （Tabletop Type） | 700*650*1260 | 1000*800*1260 | 1100*800*1260 | 1200*800*1260 | 1300*800*1260 | 1500*800*1260 | 1800*800*1260 |
| External Size（W*D*H)mm （Integral Type） | 700*650*2000 | 1000*800*2000 | 1100*800*2000 | 1200*800*2000 | 1300*800*2000 | 1500*800*2000 | 1800*800*2000 |
| Internal Size(W*D*H)mm | 580*570*835 | 880*720*835 | 980*720*835 | 1080*720*835 | 1180*720*835 | 1380*720*835 | 1680*720*835 |
| Airflow pattern | Negative pressure exhaust | ||||||
| Max Opening | 500mm | ||||||
| Air Velocity | 0.3-0.8m/s | ||||||
| System Exhaust Volume | 420m³/h | 630m³/h | 700m³/h | 770m³/h | 840m³/h | 980m³/h | 1190m³/h |
| Noise | ≤68dB | ||||||
| LED Lamp | 4w*2 | 8w | 12w | 12w | 12w | 12w | 16w |
| Illumination | ≥300lx | ||||||
| Vibration | Amplitude ≤5μm | ||||||
| Consumption | 400w | ||||||
| Power Supply | AC220V±10％，50/60Hz；110V±10％，60Hz | ||||||
| Exterior Meterial | Cold-rolled steel with anti-bacteria power coating，electrostatic spraying | ||||||
| Interior Meterial | 5mm Compact Laminate board | ||||||
| Standard Accessories（Tabletop Type） | Socket, fan, LED light, 300*4mPVC pipe | ||||||
| Standard Accessories（Integral Type） | Socket, fan, LED light, 300*4mPVC pipe，base cabinet，Solid core physical and chemical board | ||||||
| Optional Accessory（Integral Type） | Water tap，Gas tap，Water sink | ||||||
| Number of users | 1 | 1 | 1-2 | 1-2 | 1-2 | 1-2 | 2-3 |
| Gross Weight（Tabletop Type） | 85 | 124 | 135 | 146 | 153 | 174 | 198 |
| Gross Weight（Integral Type） | 110 | 160 | 169 | 179 | 190 | 211 | 236 |
| Package Size（W*D*H)mm （Tabletop Type） | 840*790*1460 | 1140*940*1460 | 1240*940*1460 | 1340*940*1460 | 1440*940*1460 | 1640*940*1460 | 1940*940*1460 |
| Package Size（W*D*H)mm （Integral Type） | 840*950*1460 | 1140*1100*1460 | 1240*1100*1460 | 1340*1100*1460 | 1440*1100*1460 | 1640*1100*1460 | 1940*1100 |
