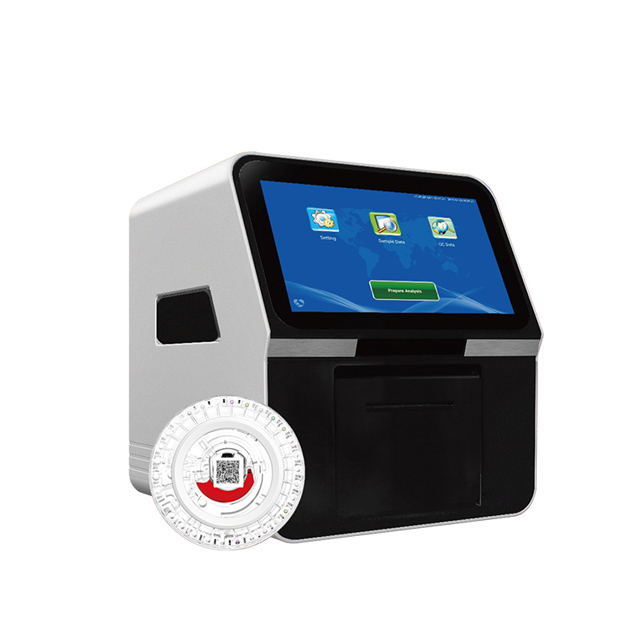

BK-120VP realizes the miniaturization and automation of the analyzer by microfluidic technology. It has a built-in intelligent quality control system, test results are accurate and reliable, the analyzer is easy to operate and take up little space. It is an ideal diagnostic tool to help veterinarians assess the health of animals and it has become the professional choice of thousands of veterinary hospitals and clinics.
BK-120V
BIOBASE
Features:
1.Easy to Use
Only need to add samples, it’s easy to operate. No need to add diluent manually.
2.Easy to Carry
The portable analyzer is designed to save space and can be carried anywhere.
3.Less Maintenance
No consumables needed such as tubes, pump, valve etc., saving your maintenance expenses.
4.Small Sample Volume
The sample volume is only 100ul, easy to do test for small animals
5.One Analyzer for Multiple Uses
Covers biochemistry, electrolyte, coagulation, feline and canine inflammation detection (c-CRP, f-SAA)
Models:
Technical Parameters
Model | BK-120V |
Sample Volume | 90-120ul |
Barcode | QR code |
Testing Time | 12mins/sample |
Controlling Temperature | 37±0.3℃ |
Resolution | 0.001Abs |
Absorbance | 0-3.0Abs |
Sample Type | Anti-coagulation whole blood, serum and plasma |
QC &Calibration | Real time full-auto finish |
Working Condition | Temperature: 10-30℃; Humidity: ＜85% |
Testing Principle | Absorbance spectroscopy, transmission turbidimetry |
Testing Method | End point, kinetic, fixed time, turbidimetry, etc. |
Light Source | 12V/20W, Halogen tungsten lamp, life span over 2500h |
Power Supply | AC100-240V, 50-60Hz |
Power | 100W |
Display | 7 inches touch screen |
Storage | 500.000 results |
Built-in thermal printer | |
Connector | 2 USB ports |
Packing Size | 345*315*405 mm |
Gross Weight | 6.85 KGS |
Reagents
Reagent Menu
(7 Chemistry Profiles with Different Parameters in One Solution)
The test kit consists of freeze-dried reagent beads, diluent and QR code.
Single use with 12 months lifespan(2-8℃ storage temperature).
Reagent Name | Test Items |
Feline Inflammation | ALB, ALP, CREA, GGT, LPS, TBA, BUN, f-SAA, B/C |
Canine Inflammation | AMY, CREA, LPS, BUN, c-CRP, B/C |
Coagulation Parameters | PT, APTT, TT, Fib |
Diabetes Test Parameters | ALT, AMY, AST, GLU, LPS, TC, TG, LAC, FRU |
Comprehensive Plus Test | ALB, ALP, ALT, AMY, AST, Ca, CK, CREA, GLU, GGT, LDH, LPS, PHOS, TBA, TB, TC, TCO2, TG, TP, BUN, A/G, B/C, GLOB |
Comprehensive Diagnostic Test | ALB, ALP, ALT, AMY, CHE, K+, Na+, CREA, GLU, TB, TP, UA, BUN, A/G, B/C, GLOB |
Health Check Parameters | ALB, ALT, AMY, AST, GLU, CK, Ca, CREA, BUN, TB, TG, TP, PHOS, A/G, B/C, GLOB |
Primary Diagnostic | ALB, ALP, ALT, CREA, GLU, TP, BUN, A/G, B/C, GLOB |
Pre-operation Test Parameters | ALP, ALT, AST, CK, CREA, GLU, LDH, TP, BUN, B/C |
Kidney Function Parameters | ALB, Ca, CREA, GLU, PHOS, tCO2, UA, BUN, B/C* |
Liver Function Parameters | ALB, ALP, ALT, AST, GGT, TBA, TB, TC, TP, A/G, GLOB |
Electrolyte Plus Parameters | Ca, CI-, K+, Mg, Na+, PHOS, tCO2, PH, LAC |
Ammonia Test Parameters | NH3 |
Electrolyte Parameters | Ca, CI-, K+, Mg, Na+, PHOS, tCO2 |
Exotic &Reptilian Animals Parameters | ALB, AST, Ca, CK, GLU, K+, Na+, PHOS, TBA, TP, UA |
