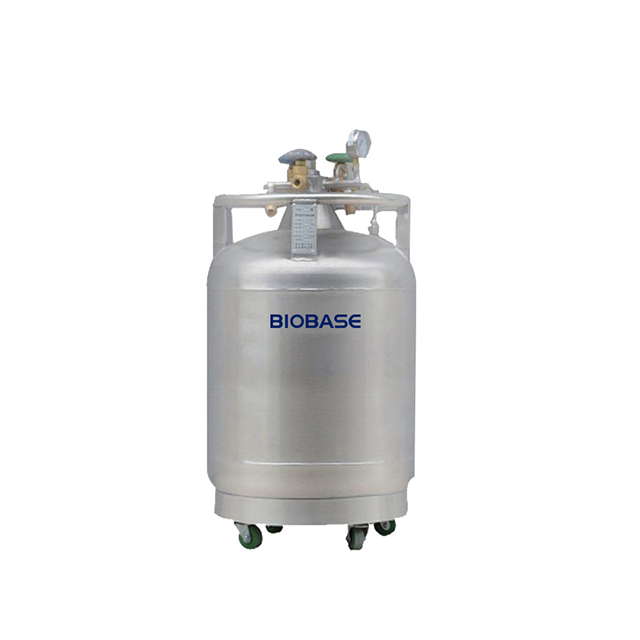

YDZ-30 YDZ-50 YDZ-100 YDZ-200
BIOBASE
Features:
1. High bearing capacity casters, easy to move.
2. Vacuum warranty for 5 years.
3. Double safety automatic control valve, with double safety protection measures, it is safer to use.
4. It has continuous pressurization and continuous liquid discharge, making the liquid supply more efficient.
5. Standard float liquid level meter for YDZ-100/YDZ-200, cannot be optional for YDZ-30/YDZ-50.
6. Made of high-quality 304 stainless steel, the ultra-low temperature globe valve is easier to operate, durable and beautiful.
Technical Parameters:
Model | Unit | YDZ-30 | YDZ-50 | YDZ-100 | YDZ-200 |
Capacity | L | 30 | 50 | 100 | 200 |
Caliber | mm | 50 | 50 | 50 | 50 |
Empty Weight | kg | 56 | 62.5 | 85 | 136.8 |
Outer Diameter | mm | 404 | 454 | 556 | 656 |
Height | mm | 885 | 998 | 1120 | 1330 |
Static Evaporation Rate | % | 2.5 | 2 | 1.3 | 1.2 |
Standard Working Pressure | MPa | 0.05 | 0.05 | 0.05 | 0.05 |
Maximum Working Pressure | MPa | 0.09 | 0.09 | 0.09 | 0.09 |
Primary Safety Valve Opening Pressure | MPa | 0.099 | 0.099 | 0.099 | 0.099 |
Second Safety Valve Opening Pressure | MPa | 0.15 | 0.15 | 0.15 | 0.15 |
Pressure Gauge Range | MPa | 0-0.25 | 0-0.25 | 0-0.25 | 0-0.25 |
Standard Accessory | pc | 1pc of 1.5m liquid nitrogen output hose | |||
Package Size | mm | 465*465*1035 | 505*505*1135 | 615*615*1290 | 700*700*1450 |
Gross Weight | kg | 68 | 78.5 | 85 | 154.8 |
