Introduction:

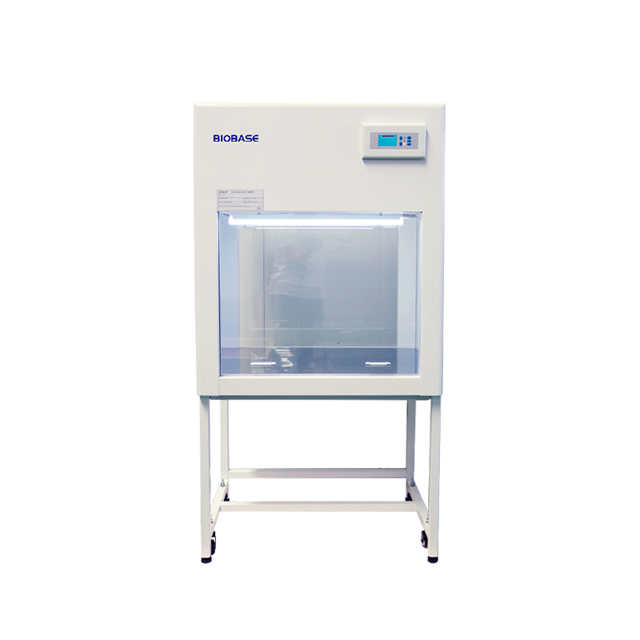

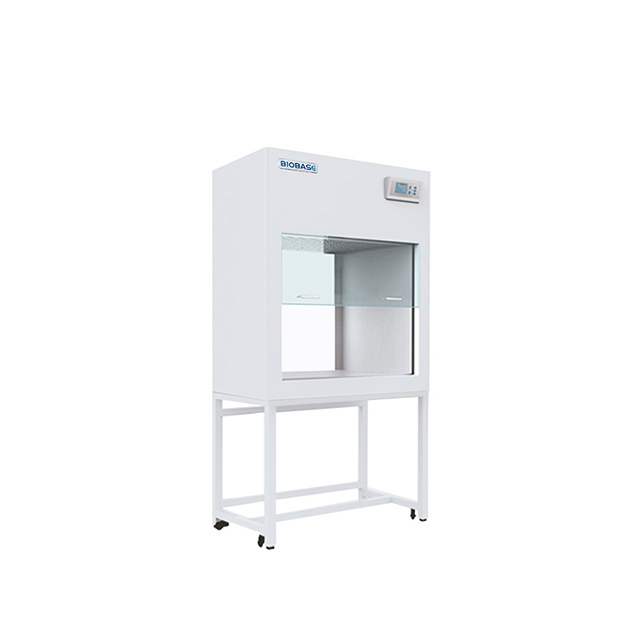

Laminar flow cabinet is an equipment which creates partial particles-free environment. Air flow pattern includes horizontal and vertical type, this laminar flow cabinet is vertical type.
| Quantity: | |
|---|---|
BBS-V680, BBS-V800, BBS-DDC, BBS-SDC
BIOBASE

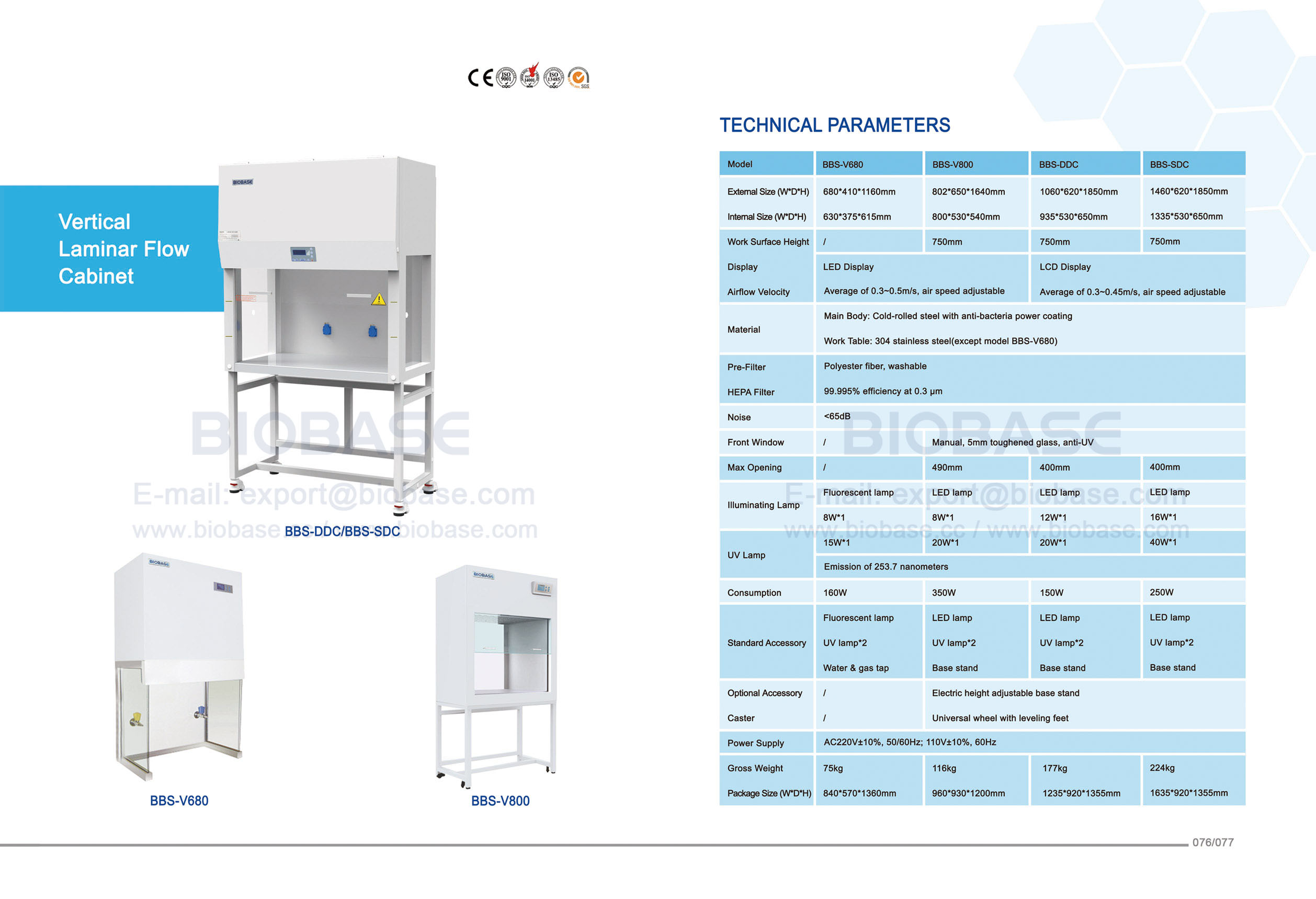

Technical Parameters:
Model | BBS-V680 | BBS-V800 | BBS-DDC | BBS-SDC |
External Size | 680*410*1160mm | 802*650*1640mm | 1060*620*1850mm | 1460*620*1850mm |
Internal Size | 630*375*615mm | 800*530*540mm | 935*530*650mm | 1335*530*650mm |
Work Surface | / | 750mm | 750mm | 750mm |
Display | LED display | LCD display | ||
Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable | Average of 0.3~0.45m/s, air speed adjustable | ||
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |||
Work Table: 304 stainless steel(except model BBS-V680) | ||||
Pre-filter | Polyester fiber, washable | |||
HEPA Filter | 99.995% efficiency at 0.3μm | |||
Noise | <65dB | |||
Front Window | / | Manual, 5mm toughened glass, anti-UV | ||
Max Opening | / | 490mm | 400mm | 400mm |
Illuminating Lamp | Fluorescent lamp | LED lamp | LED lamp | LED lamp |
UV Lamp | 15W*1 | 20W*1 | 20W*1 | 40W*1 |
Emission of 253.7 nanometers | ||||
Consumption | 160W | 350W | 150W | 250W |
Standard Accessory | Fluorescent lamp UV lamp*2 | LED lamp | LED lamp | LED lamp |
Optional Accessory | / | Electric height adjustable base stand | ||
Caster | / | Universal wheel with leveling feet | ||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Gross Weight | 75kg | 116kg | 177kg | 224kg |
Package Size (W*D*H) | 840*570*1360mm | 960*930*1200mm | 1235*920*1355mm | 1635*920*1355mm |
Technical Parameters:
Model | BBS-V680 | BBS-V800 | BBS-DDC | BBS-SDC |
External Size | 680*410*1160mm | 802*650*1640mm | 1060*620*1850mm | 1460*620*1850mm |
Internal Size | 630*375*615mm | 800*530*540mm | 935*530*650mm | 1335*530*650mm |
Work Surface | / | 750mm | 750mm | 750mm |
Display | LED display | LCD display | ||
Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable | Average of 0.3~0.45m/s, air speed adjustable | ||
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |||
Work Table: 304 stainless steel(except model BBS-V680) | ||||
Pre-filter | Polyester fiber, washable | |||
HEPA Filter | 99.995% efficiency at 0.3μm | |||
Noise | <65dB | |||
Front Window | / | Manual, 5mm toughened glass, anti-UV | ||
Max Opening | / | 490mm | 400mm | 400mm |
Illuminating Lamp | Fluorescent lamp | LED lamp | LED lamp | LED lamp |
UV Lamp | 15W*1 | 20W*1 | 20W*1 | 40W*1 |
Emission of 253.7 nanometers | ||||
Consumption | 160W | 350W | 150W | 250W |
Standard Accessory | Fluorescent lamp UV lamp*2 | LED lamp | LED lamp | LED lamp |
Optional Accessory | / | Electric height adjustable base stand | ||
Caster | / | Universal wheel with leveling feet | ||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Gross Weight | 75kg | 116kg | 177kg | 224kg |
Package Size (W*D*H) | 840*570*1360mm | 960*930*1200mm | 1235*920*1355mm | 1635*920*1355mm |
