Vertical Laminar Flow Cabinet-Double Sides Type

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Quantity:
  • BIOBASE

Laminar Flow Cabinet-sample protection only

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

08

Models:

Model

BBS-DSC

BBS-SSC

External Size (W*D*H)

1040*660*1770mm

1440*660*1770mm

Internal Size (W*D*H)

940*560*545mm

1340*560*545mm

Work Surface Height

750mm

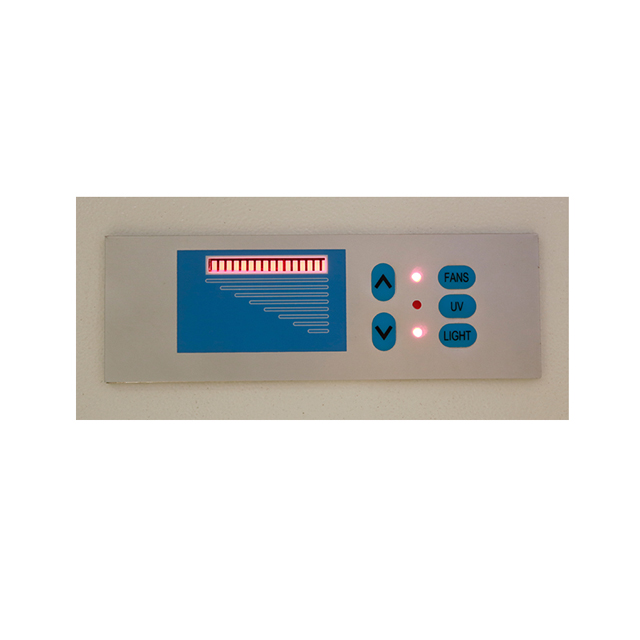

Display

LED Display

Airflow Velocity

Average of 0.3~0.5m/s

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Pre-filter

Polyester fiber, washable

HEPA Filter

99.999% efficiency at 0.3um

Noise

<65dB

Front Window

Manual, 5mm toughened glass, anti-UV

Max Opening

310mm

310mm

UV Lamp

18W*1

30W*1

Emission of 253.7 nanometers

LED Lamp

12W*1

16W*1

Consumption

350W

600W

Caster

Universal caster with leveling feet

Power Supply

AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ

Standard Accessory

LED lamp, UV lamp*2, Base stand

Optional Accessory

Electric height adjustable base stand

Gross Weight

150kg

186kg

Package Size (W*D*H)

1190*890*1340mm

1590*890*1340mm


Standard Accessory:

LED lamp      1pc

UV  lamp       2pcs

Base stand     1pc
