| Quantity: | |
|---|---|

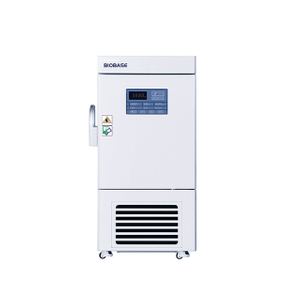

BDF-86V28
BIOBASE
Model：
Model | BDF-86V28 | |
External Size(W*D*H) mm | 505*520*1165 | |
Internal Size(W'D·H)mm | 266*261*400 | |
Capacity | 28L | |
Type | Vertical | |
Temp.Range | -40℃～-86℃ | |
Temp.Accuracy | 0.1℃ | |
Control System | Microprocessor control,LED Digital Display | |
Audible and Visual Alarm | High and low temperature alarm, sensor failure alarm. | |
Construction | Foam Layer Thickness | 100mm |
Internal Material | 304 stainless steel | |
External Material | Sprayed steel plate | |
Chamber with Inner Door | 1 | |
Shelf | 1pc | |
Test Port | φ18mm*1 | |
Consumption | 390w | |
Power Supply | AC110V/220V±10%,50/60Hz | |
Package size (W*D*H) mm | 580*600*1325 | |
Gross Weight | 85kg | |
Model：
Model | BDF-86V28 | |
External Size(W*D*H) mm | 505*520*1165 | |
Internal Size(W'D·H)mm | 266*261*400 | |
Capacity | 28L | |
Type | Vertical | |
Temp.Range | -40℃～-86℃ | |
Temp.Accuracy | 0.1℃ | |
Control System | Microprocessor control,LED Digital Display | |
Audible and Visual Alarm | High and low temperature alarm, sensor failure alarm. | |
Construction | Foam Layer Thickness | 100mm |
Internal Material | 304 stainless steel | |
External Material | Sprayed steel plate | |
Chamber with Inner Door | 1 | |
Shelf | 1pc | |
Test Port | φ18mm*1 | |
Consumption | 390w | |
Power Supply | AC110V/220V±10%,50/60Hz | |
Package size (W*D*H) mm | 580*600*1325 | |
Gross Weight | 85kg | |
