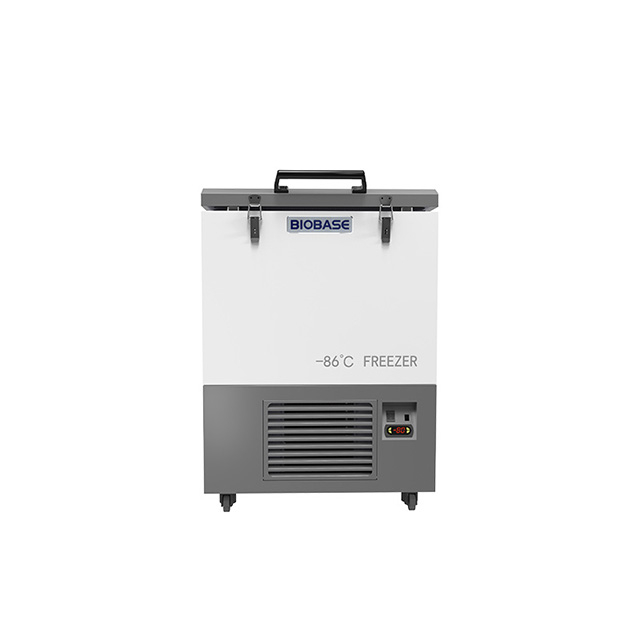

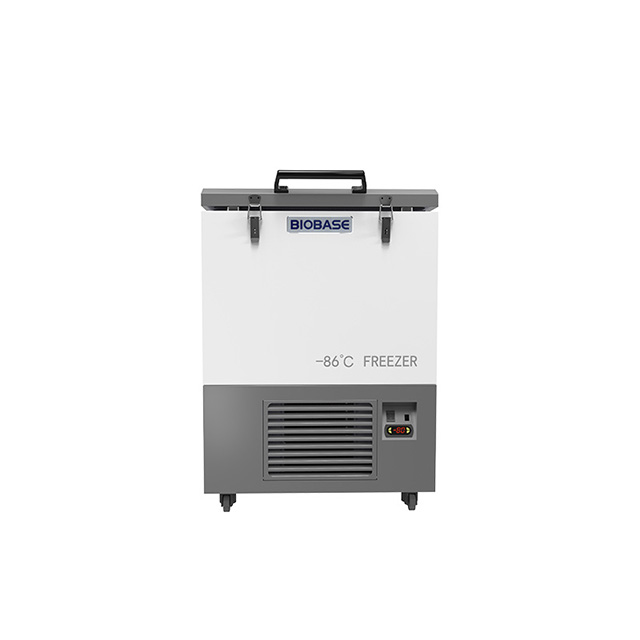

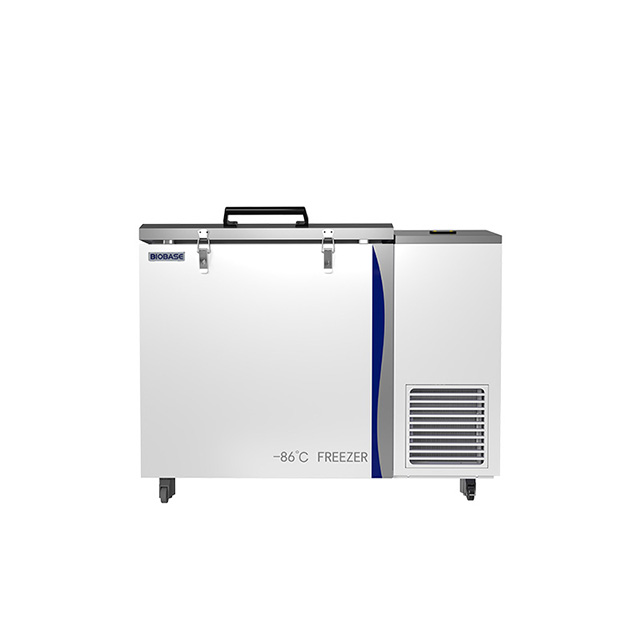

BDF-86H50 BDF-86H118
BIOBASE
Technical Parameters:
Model | BDF-86H50 | BDF-86H118 |
Capacity | 50L | 118L |
Refrigeration Type | Direct refrigeration | |
Defrosting Type | Manual | |
Refrigerant/g | Mixed refrigerant, CFC free | |
Noise | 60dB(A) | |
Ambient Temp. | 10~32℃ | |
Temp. Range | -40℃~-86℃ | |
Evaporator | Built-in coil, copper pipe | |
Condenser | Copper tube and aluminum fin | |
Sensor | PT1000 | |
Thermostat | Electronic thermostat | |
Display | LED | |
Power Supply | 110~220V/50~60Hz | |
Power | 540W/550VA | 510W/528VA |
Current | 2.5A | 2.4A |
Internal Material | S.S. 304 | S.S. 304 |
External Material | Spray cold-rolled steel plate | |
Lagging | Foamed polyurethane cyclopentane | |
Audible and Visual Alarm | High and low temperature alarm, Power fault alarm, Thermostat fault alarm, Door switch alarm | |
Net Weight | 83kg | 103kg |
Gross Weight | 125kg | 150kg |
Internal Size(W*D*H) | 430*400*350mm | 540*400*580mm |
External Size(W*D*H) | 695*740*985mm | 1140*730*930mm |
Package Size(W*D*H) | 810*830*1180mm | 1240*800*1065mm |
