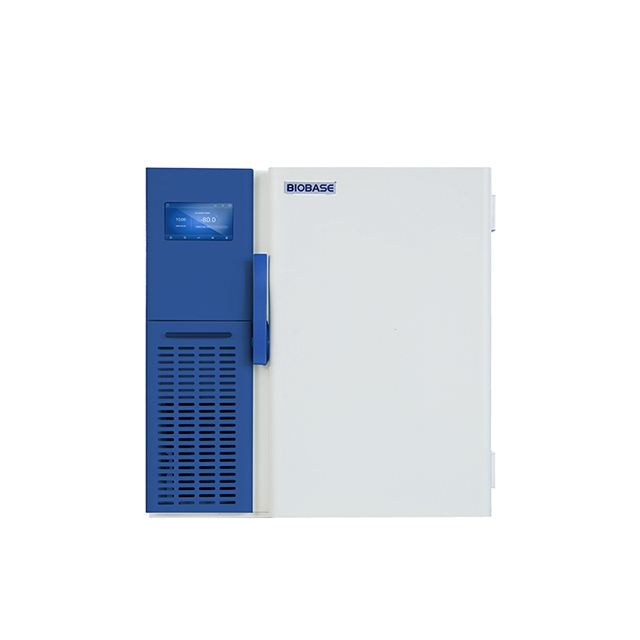

BDF-86V100
BIOBASE

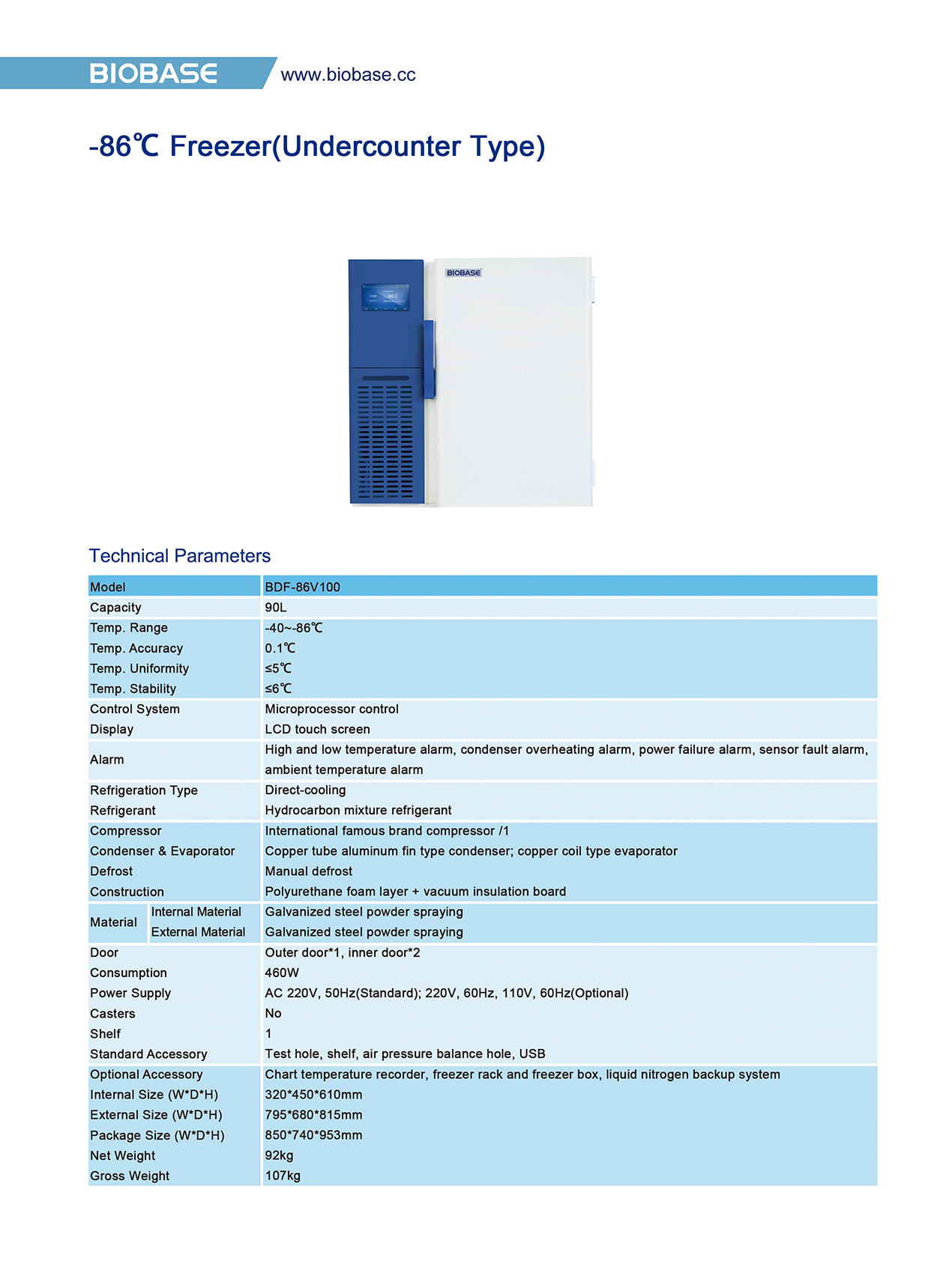

Technical Parameters:
Model | BDF-86V100 | |
Capacity | 90L | |
Temp. Range | -40~-86℃ | |
Temp. Accuracy | 0.1℃ | |
Temp. Uniformity | ≤5℃ | |
Temp. Stability | ≤6℃ | |
Control System | Microprocessor control | |
Display | LCD touch screen | |
Alarm | High and low temperature alarm, condenser overheating alarm, power failure alarm, sensor fault alarm, ambient temperature alarm | |
Refrigeration Type | Direct-cooling | |
Refrigerant | Hydrocarbon mixture refrigerant | |
Compressor | International famous brand compressor/1 | |
Condenser &Evaporator | Copper tube aluminum fin type condenser; copper coil type evaporator | |
Defrost | Manual defrost | |
Construction | Polyurethane foam layer+vacuum insulation board | |
Material | Internal Material | Galvanized steel powder spraying |
External Material | Galvanized steel powder spraying | |
Door | Outer door*1, inner door*2 | |
Consumption | 460W | |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional) | |
Casters | No | |
Shelf | 1 | |
Standard Accessory | Test hole, shelf, air pressure balance hole, USB | |
Optional Accessory | Chart temperature recorder, freezer rack and freezer box, liquid nitrogen backup system | |
Internal Size(W*D*H) | 320*450*610mm | |
External Size(W*D*H) | 795*680*815mm | |
Package Size(W*D*H) | 850*740*953mm | |
Net Weight | 92kg | |
Gross Weight | 107kg | |
Technical Parameters:
Model | BDF-86V100 | |
Capacity | 90L | |
Temp. Range | -40~-86℃ | |
Temp. Accuracy | 0.1℃ | |
Temp. Uniformity | ≤5℃ | |
Temp. Stability | ≤6℃ | |
Control System | Microprocessor control | |
Display | LCD touch screen | |
Alarm | High and low temperature alarm, condenser overheating alarm, power failure alarm, sensor fault alarm, ambient temperature alarm | |
Refrigeration Type | Direct-cooling | |
Refrigerant | Hydrocarbon mixture refrigerant | |
Compressor | International famous brand compressor/1 | |
Condenser &Evaporator | Copper tube aluminum fin type condenser; copper coil type evaporator | |
Defrost | Manual defrost | |
Construction | Polyurethane foam layer+vacuum insulation board | |
Material | Internal Material | Galvanized steel powder spraying |
External Material | Galvanized steel powder spraying | |
Door | Outer door*1, inner door*2 | |
Consumption | 460W | |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional) | |
Casters | No | |
Shelf | 1 | |
Standard Accessory | Test hole, shelf, air pressure balance hole, USB | |
Optional Accessory | Chart temperature recorder, freezer rack and freezer box, liquid nitrogen backup system | |
Internal Size(W*D*H) | 320*450*610mm | |
External Size(W*D*H) | 795*680*815mm | |
Package Size(W*D*H) | 850*740*953mm | |
Net Weight | 92kg | |
Gross Weight | 107kg | |
