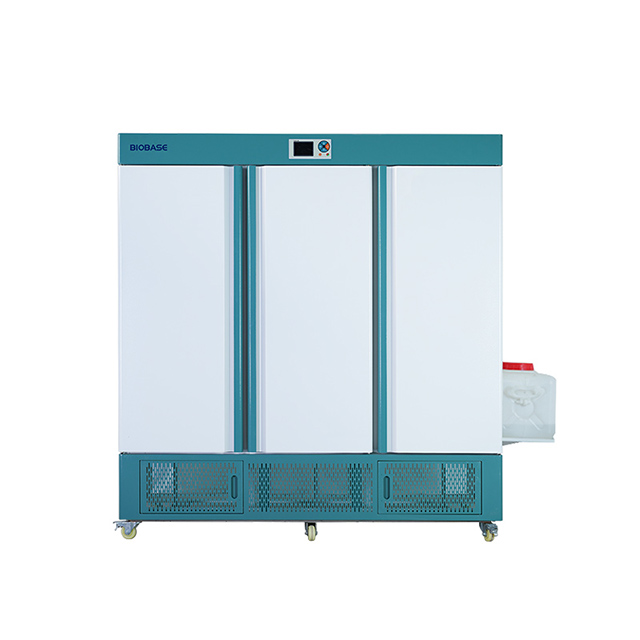

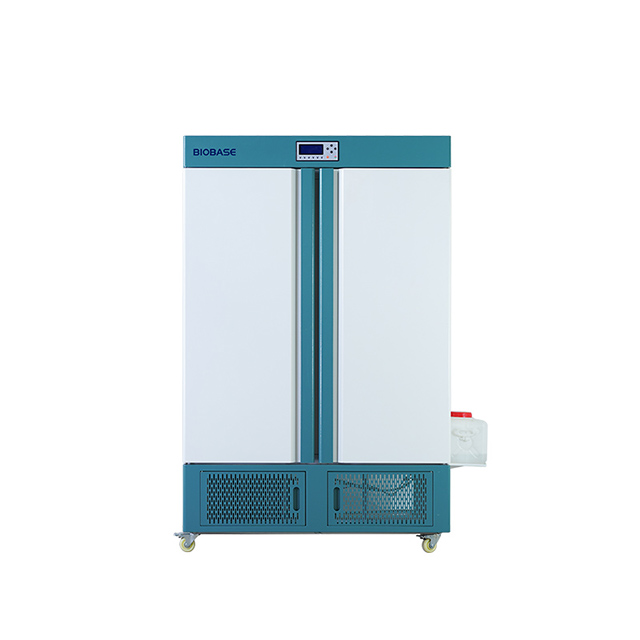

BJPX-A1000CI、BJPX-A1500CI
BIOBASE
Features:
1. The shell is sprayed with cold-rolled steel plate, the chamber is made of stainless steel.
2. Microcomputer program control, 9 selectable operation modes, with a control method that cycles between day and night.
3. Refrigeration unit adopts brand compressor, the use of fluorine-free environmental protection refrigerant, adaptive ring temperature change for constant temperature control, 180s refrigeration shutdown protection.
4. It has alarms for over-temperature, under-temperature and sensor failure.
5. The external water tank is directly connected to the interior, ensuring more uniform humidity levels inside the cabinet.
6. The horizontal micro-perforated air outlet structure combined with vertical air return circulation ensures uniform airflow across every layer of the samples.
Technical Parameters:
Model | BJPX-A1000CI | BJPX-A1500CI |
Capacity | 1000L | 1500L |
Temp. Sensor | PT100 | |
Temp. Range | 0~50℃(No Light: 0~50℃, with light: 10~50℃) | |
Temp. Fluctuation | ±1℃(Experimental conditions: no load, environmental temperature 20℃, humidity 50%RH) | |
Temp. Uniformity | 7℃ | |
Temp. Resolution | 0.1℃ | |
Timing Range | Timing 0~99hours59minutes/continuous operation | |
Humidity Range | 50~95%RH | |
Humidity Control Accuracy | ±1%RH | |
Humidity Fluctuation | ±3~±7%RH | |
Light | 20000lux | |
Working Environment | 10~30℃ | |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz(Optional) | |
Consumption | 2056W | 4210W |
Shelf | 3 | |
Standard Accessory | Manual intake control valve, external large-capacity water tank | |
Optional Accessory | Touch screen, 99-segment program control, printer, USB port, wireless alarm system(SMS alerts), CO2 control module, UV lamp, timed ventilation function, 220V power outlet inside chamber, M50 test port, double-door design with inner glass door | |
Internal Size(W*D*H) | 1200*620*1200mm | 1730*620*1300mm |
External Size(W*D*H) | 1300*780*1830mm | 1830*780*1930mm |
Package Size(W*D*H) | 1500*820*2150mm | 2160*900*2080mm |
Net Weight | 243kg | 370kg |
Gross Weight | 263kg | 390kg |
