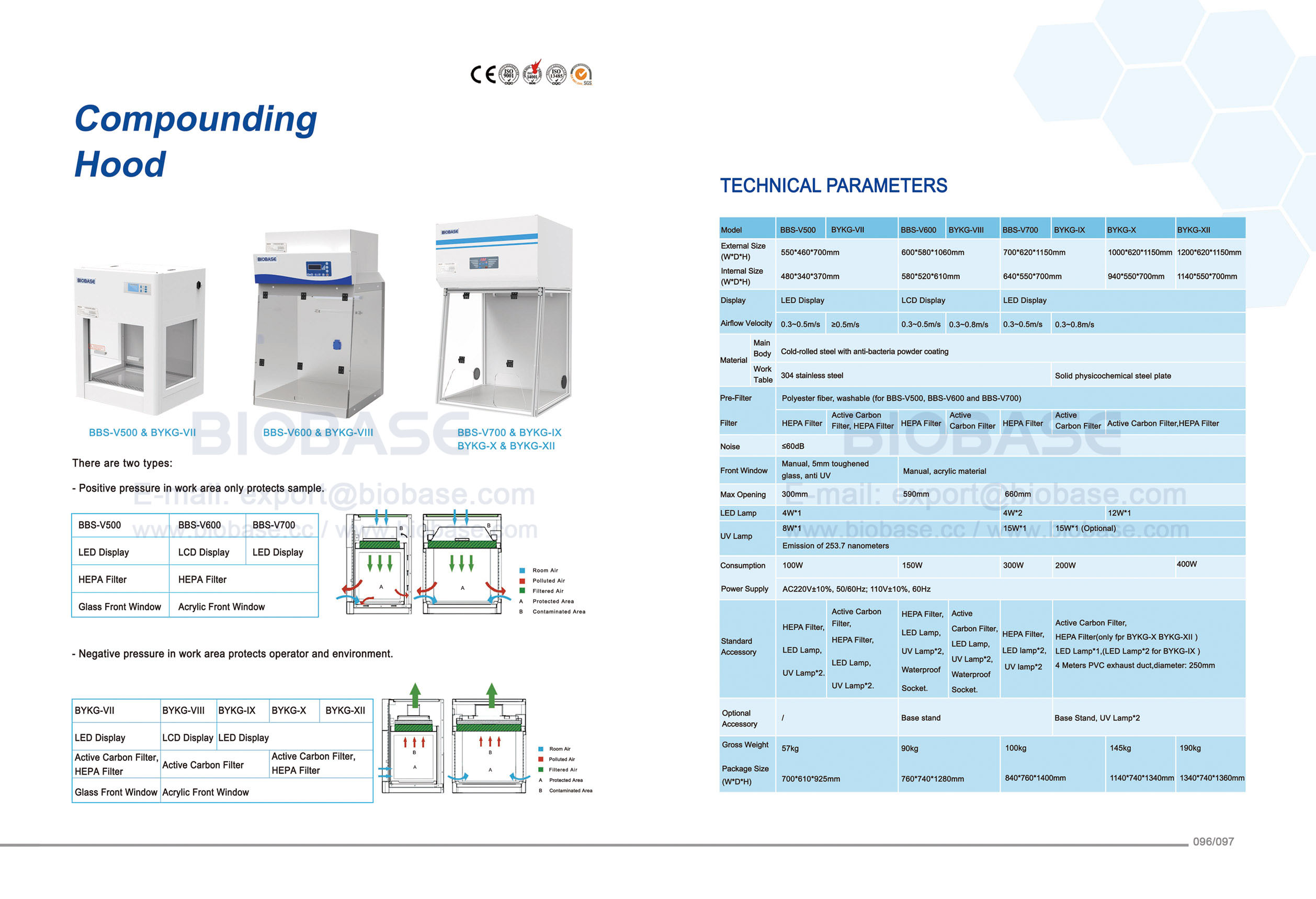

Compounding Hood

Laminar Flow Cabinet-sample protection only Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. Laminar flow cabinet is widely used in medical research laboratories, hospital, manufacturing facilities and other research and production environments.
Availability:
Quantity:
  • BBS-V500, BYKG-VII, BBS-V600, BYKG-VIII, BBS-V7--, BYKG-IX, BYKG-X, BYKG-XII
  • BIOBASE

QQ截图20211211110512

Models:

Model

BBS-V500

BYKG-VII

BBS-V600

BYKG-VIII

BBS-V700

BYKG-IX

BYKG-X

BYKG-XII

External Size (W*D*H)mm

550*460*700

600*580*1060

700*620*1150

1000*620*1150

1200*620*1150

Internal Size (W*D*H)

480*340*370

580*520*610

640*550*700

940*550*700

1140*550*700

Display

LED Display

LCD Display

LED Display

Airflow Velocity

0.3~0.5m/s

≥0.5m/s

0.3~0.5m/s

0.3~0.8m/s

0.3~0.5m/s

0.3~0.8m/s

Material

Main Body

Cold-rolled steel with anti-bacteria power coating


Work Table

304 stainless steel

Solid physicochemical steel plate

Pre-Filter

Polyester fiber, washable(for BBS-V500, BBS-V600 and BBS-V700)

Filter

HEPA Filter

Active Carbon Filter,

HEPA Filter

HEPA Filter

Active Carbon Filter

HEPA Filter

Active Carbon Filter

Active Carbon Filter, HEPA Filter

Noise

≤60dB

Front Window

Manual, 5mm toughened glass, anti UV

Manual, acrylic material

Max Opening

300mm

590mm

660mm

LED Lamp

4W*1

4W*2

12W*1

UV Lamp

8W*1

15W*1

Emission of 253.7 nanometers

Consumption

100W

150W

300W

200W

400W

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

HEPA filter,

LED lamp,

UV lamp*2.

Active carbon filter,

HEPA filter,

LED lamp,

UV lamp*2.

HEPA filter,

LED lamp,

UV lamp*2,

Waterproof socket.

Active carbon filter,

LED lamp,

UV lamp*2,

Waterproof socket.

HEPA filter,

LED lamp*2,UV lamp*2

Active carbon filter,

HEPA filter(for model BYKG-X, BYKG-XII)

LED lamp*1,(LED lamp*2 for BYKG-IX)

4 meters PVC exhaust duct,

Diameter: 250mm.

Optional Accessory

/

Base stand

Base stand, UV lamp*2

Gross Weight

57kg

90kg

100kg

145kg

190kg

Package Size (W*D*H)mm

700*610*925

760*740*1280

840*760*1400

1140*740*1340

1340*740*1360
