Introduction:

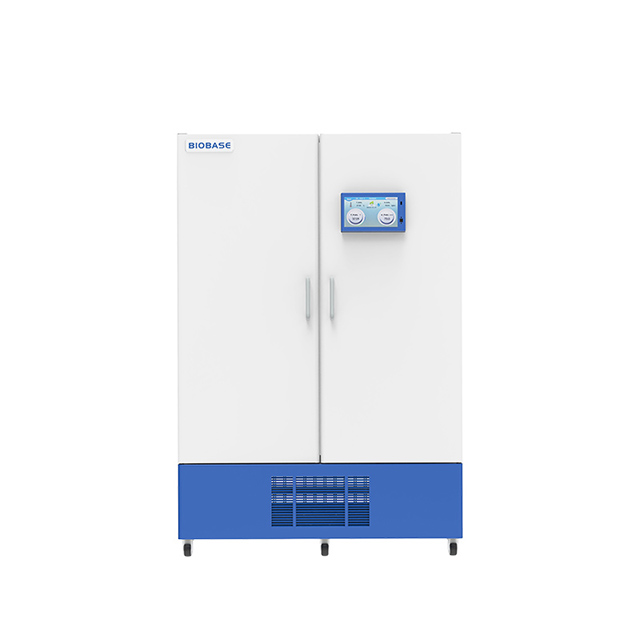

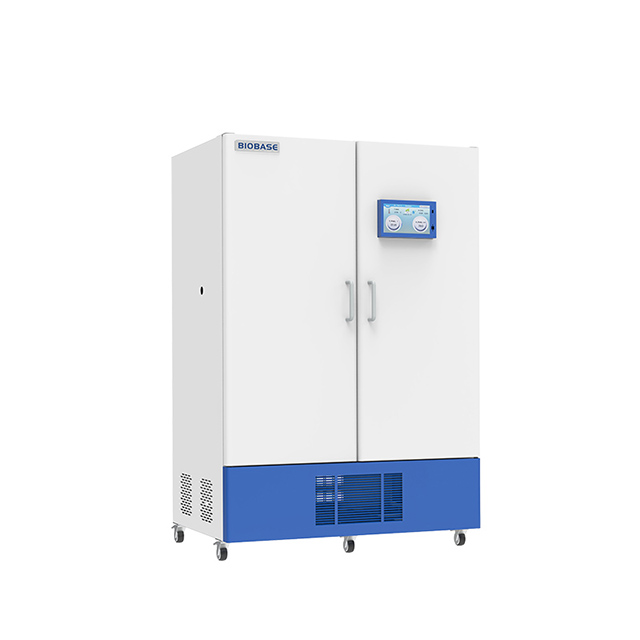

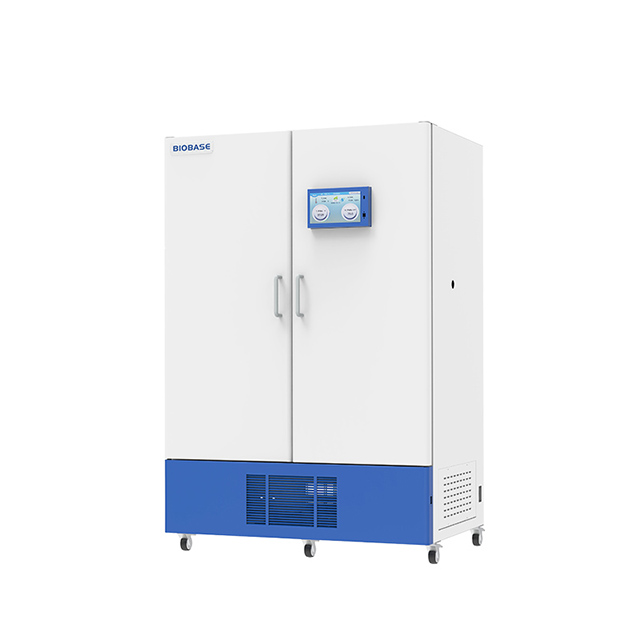

The constant temperature and humidity incubator has a precise temperature and humidity control system. It provides various environmental simulation conditions required for industrial research and biotechnology testing.
| Quantity: | |
|---|---|
BJPX-HT1000(PC)
BIOBASE
Features:
1. The 7-inch color LCD touch screen can monitor temperature and humidity curves in real-time and query operation history records on one screen.
2. The PID microcomputer-controlled temperature allows fixed-value and segmented operations. It has a parameter memory function and can resume operation automatically after power-on.
3. There are a built-in steam humidification system and an independent PID humidity control system.
4. Three levels of operation interface permissions(administrator, experimenter, operator) prevent test interruption or equipment malfunction caused by unauthorized operations.
5. The inner liners are made of high-quality stainless steel with a semi-circular and four-corner design.
6. The unique refrigeration system has an automatic defrosting function and a blower for forced convection to make the temperature more uniform.
7. Equipped with an alarm system: high temperature alarm, low water level alarm, independent overheat protection device, and overcurrent protection.
Technical Parameters：
Model | BJPX-HT1000(PC) |
Capacity(L) | 1000 |
Temp. Sensor | PT100 |
Temp. Range | 5~60℃ |
Temp. Fluctuation | ±2.0℃ |
Temp. Uniformity | ±2.0℃(at 37℃) |
Temp. Precision | 0.1℃ |
Humidity Range | 50~95％RH |
Humidity Fluctuations | ±5~8%RH |
Humidity Precision | 1.0%RH |
Humidification Method | Built-in humidification system |
Refrigerant | R404a |
Heating System | Stainless steel heater |
Timing Range | 0～5999min |
Control Type | Microcomputer PID controller |
Display | 7.0-inch color LCD touch screen |
Material | External cold-rolled steel with painting; Internal stainless steel |
Power Supply | Standard: AC220V±10%, 50/60Hz Optional: AC110±10%, 60Hz(External transformer) |
Consumption | 1800W |
Shelves | 2pcs/adjustable |
Standard Accessories | USB port /LAN interface |
Optional Accessories | UV lamp/LED lamp/Printer/Shelves/Automatic water supply system |
Internal Size(W*D*H)mm | 1200*600*1400 |
External Size(W*D*H)mm | 1343*1046*1985 |
Package Size(W*D*H)mm | 1420*1070*2150 |
Net Weight(kg) | 227.5 |
Gross Weight(kg) | 300 |
