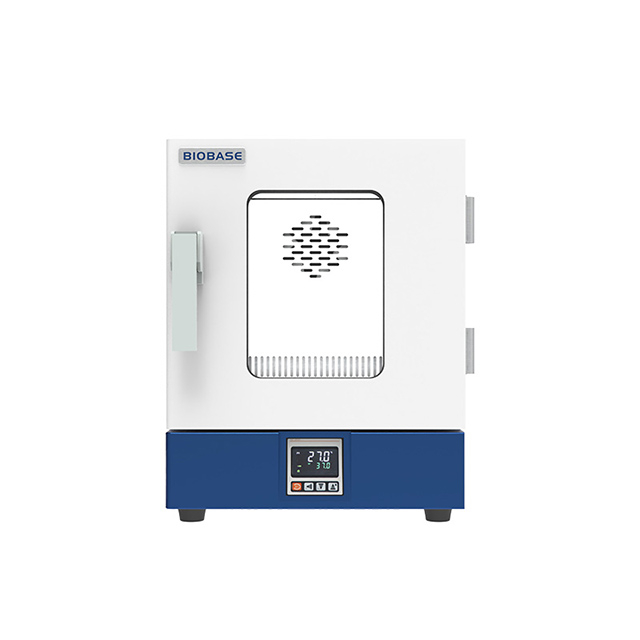

BJPX-H30L
BIOBASE
Features
1.Machine Design
Integrated design avoids destroying the stainless steel liner
The unique airway design makes the temperature more uniform
2.Interior Design
The interior is made of high-quality brushed stainless steel with semi-circular four-corner design for easy cleaning
Anti-slip diaphragm design, spacing adjustment, to avoid the sample falling off when pulling the diaphragm
3.Temp Control
PT100 temp sensor, using special temp-collecting technology, fast response, great anti-interference ability
4.Heat Preservation
Each side of the inner is wrapped with aluminum foil, and the gap between the propyl bile and the partition is filled with high-quality thermal insulation cotton
Fast heating, good insulation effect, temperature is more uniform
5.Safety Protection
Configure leakage current protector, overvoltage protector and over temperature alarm
Increase the temperature control, when the temp is too high, the switch is disconnected, to prevent the high temperature damage
Technical Parameters
Model | BJPX-H30L |
Capacity | 30L |
Temperature Control Method | PT100 |
Temperature Range | RT+5~85°C |
Temperature Fluctuation | ±0.2°C (at 37°C) |
Temperature Uniformity | ±0.5°C (at 37°C) |
Circulation Mode | 4 sides heating, forced convection |
Ambient Temperature | 5~30°C, recommend 25°C+2°C |
Timing Range | 0~9999min/h |
Shelves | 2pcs |
Power Consumption | 150W |
Display | LCD |
Power Supply | AC220V土10%, 50/60Hz(Standard); AC110+10%，60Hz(Optional) |
Internal Size(mm) | 310*310*310 |
External Size(mm) | 432*538*570 |
Packing Size(mm) | 510*680*620 |
Gross Weight(kg) | 40 |
