Introduction:

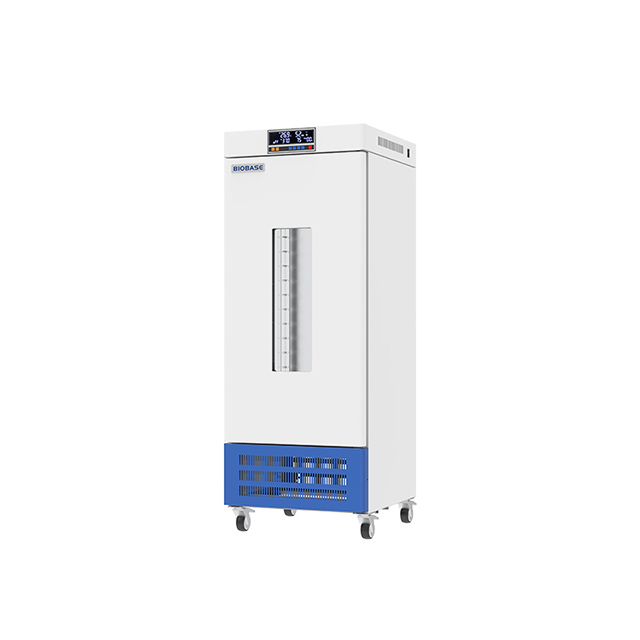

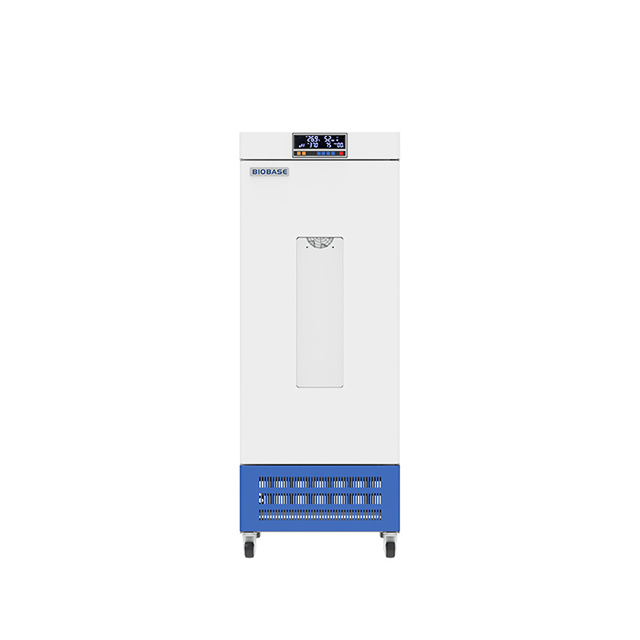

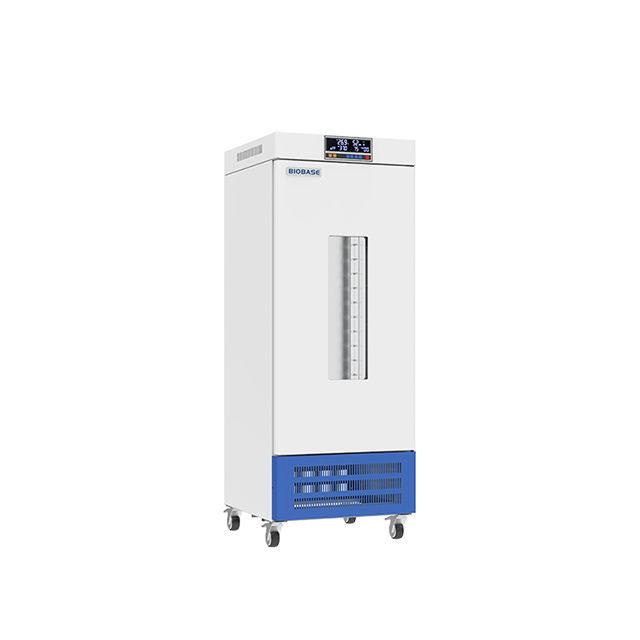

The constant temperature and humidity incubator has a precise temperature and humidity control system. It provides various environmental simulation conditions required for industrial research and biotechnology testing.
| Quantity: | |
|---|---|
BJPX-HT80BII, BJPX-HT100BII, BJPX-HT150BII, BJPX-HT200BII, BJPX-HT250BII, BJPX-HT300BII, BJPX-HT400BII
BIOBASE
Features:

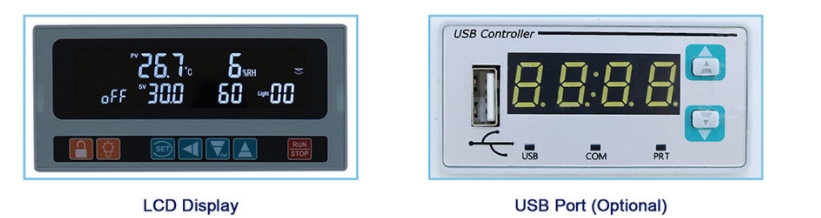

1. The LCD display screen features an interface for displaying real-time temperature and set temperature.
2. Equipped with PID microcomputer temperature control. It has a timing function, parameter memory function, and can automatically resume operation when power is restored.
3. The inner chamber is crafted from high-quality stainless steel with a semicircular four-corner design.

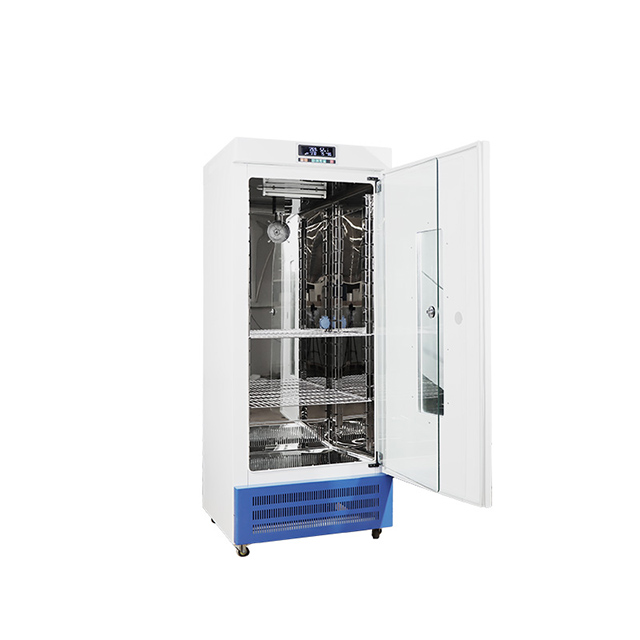

4. The inner door is of tempered glass structure, while the outer door adopts a magnetic door seal design. There is a hollow glass observation window for easy observation of the internal conditions of the equipment.
5. It comes standard with lighting for convenient observation and a BOD socket(Typ1609) for convenient internal power supply.
6. Equipped with an alarm system: high temperature alarm, low water level alarm, independent overheat protection device, and over current protection.
Technical Parameters:
Model | BJPX-HT80BII | BJPX-HT100BII | BJPX-HT150BII | BJPX-HT200BII | BJPX-HT250BII | BJPX-HT300BII | BJPX-HT400BII | ||||
Capacity(L) | 80 | 100 | 150 | 200 | 250 | 300 | 400 | ||||
Temp. Sensor | PT100 | ||||||||||
Temp. Range | 0℃～65℃ | ||||||||||
Temp. Fluctuation | ±1℃ | ||||||||||
Temp. Uniformity | ±2℃ | ||||||||||
Temp. Precision | 0.1℃ | ||||||||||
Humidity Range | 50%~90%RH | ||||||||||
Humidity Fluctuations | ±5~8%RH | ||||||||||
Humidity Precision | 1%RH | ||||||||||
Humidification Method | Built-in humidification system | ||||||||||
Refrigerant | R134a | R404a | |||||||||
Heating System | Stainless steel heater | ||||||||||
Timing Range | 0~9999h(min) | ||||||||||
Control Type | Microcomputer PID controller | ||||||||||
Display | LCD | ||||||||||
Material | External cold-rolled steel with painting; Internal stainless steel | ||||||||||
Power Supply | Standard: AC220V±10%, 50/60Hz Optional: AC110±10%, 60Hz | ||||||||||
Consumption | 1200W | 1200W | 1200W | 1300W | 1300W | 1500W | 1500W | ||||
Shelves | 2pcs/adjustable | ||||||||||
Standard Accessories | Socket/Lamp | ||||||||||
Optional Accessories | UV lamp/USB port/Printer/Shelves/Automatic water supply system | ||||||||||
Internal Size(W*D*H)mm | 400*370*560 | 400*370*680 | 450*420*850 | 450*450*1000 | 480*490*1070 | 520*500*1170 | 580*540*1270 | ||||
External Size(W*D*H)mm | 540*580*1110 | 540*580*1230 | 590*630*1390 | 590*660*1540 | 620*700*1610 | 660*700*1710 | 720*760*1810 | ||||
Packing Size(W*D*H)mm | 680*730*1290 | 680*730*1410 | 730*770*1570 | 730*800*1720 | 760*850*1790 | 800*850*1890 | 860*900*1990 | ||||
Net Weight(kg) | 70 | 75 | 95 | 100 | 110 | 120 | 140 | ||||
Gross Weight(kg) | 85 | 90 | 125 | 140 | 150 | 160 | 175 | ||||
