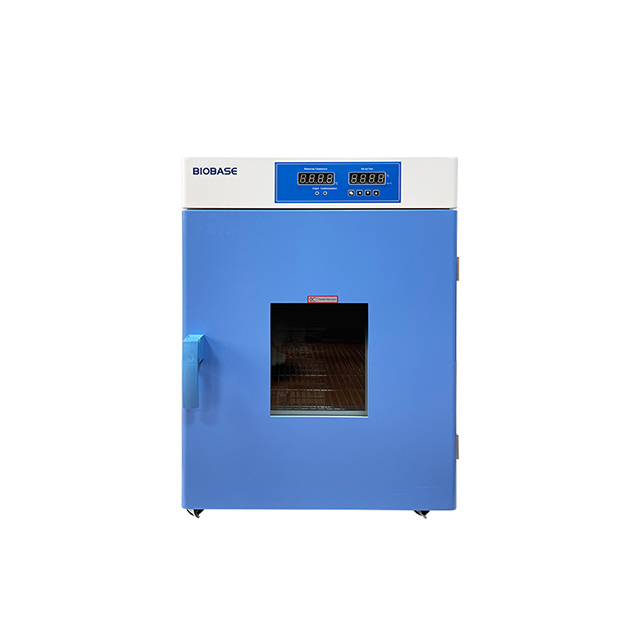

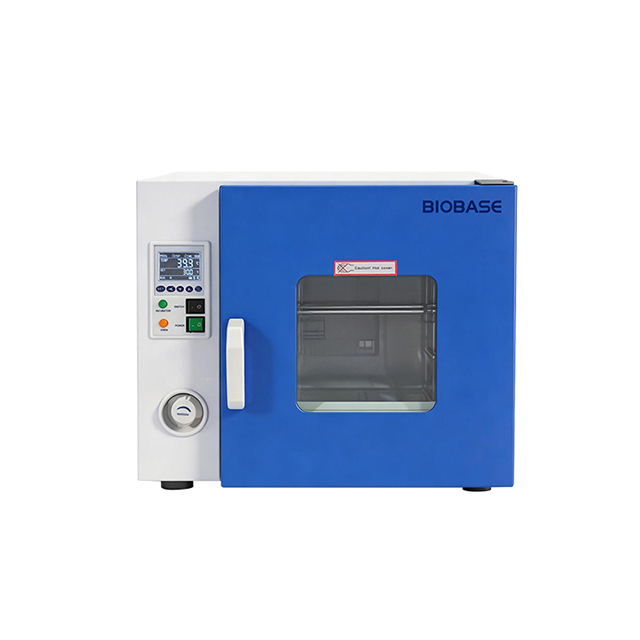

BOV-D35, BOV-D53, BOV-D87, BOV-D149, BOV-D248
BIOBASE
Features:
1. Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.
2. Air inlet and outlet on the back, the air volume can be adjusted.
3. Adopt silicone rubber sealing strip and double glass door observation window, easy and clear observation.
4. Microcomputer controller, precise and reliable temperature control.
5. The inner box is designed with a circular arc structure, which is easy to clean.
Technical Parameters:
Model | BOV-D35 | BOV-D53 | BOV-D87 | BOV-D149 | BOV-D248 |
Capacity | 35L | 53L | 87L | 149L | 248L |
Temp. Range | Incubator: RT+5~80°C; Oven: 80~220°C | Incubator: RT+5~80°C; Oven: 80~200°C | |||
Temp. Uniformity | ±3%(@100 °C) | Incubator: ≤±1°C; Oven: ≤±2.5% | |||
Temp. Fluctuation | Incubator: ±0.5°C; Oven: ±1°C | ±0.5°C | |||
Temp. Precision | 0.1℃ | ||||
Circulation Mode | Micro-air circulation | ||||
Timing Range | 0~5999min | 0~9999min | |||
Display | LCD | LED | |||
Alarm | Over temperature alarm, temperature probe damage alarm | ||||
Material | External cold-rolled steel with painting; internal stainless steel | ||||
Power Supply | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | ||||
Consumption | 850W | 700W | 1200W | 1500W | 2000W |
Shelves | 2pcs | ||||
Optional Accessories | USB/Printer | / | |||
Internal Size(W*D*H) | 340*325*320mm | 357*356*419mm | 420*416*499mm | 498*500*600mm | 598*582*713mm |
External Size(W*D*H) | 620*490*490mm | 540*615*750mm | 604*674*830mm | 680*771*935mm | 782*855*1045mm |
Package Size(W*D*H) | 780*650*580mm | 600*720*900mm | 670*740*990mm | 740*840*1080mm | 860*940*1210mm |
Net Weight | 27kg | 48kg | 60kg | 78kg | 99kg |
Gross Weight | 30kg | 56kg | 71kg | 92kg | 116kg |
Features:
1. Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.
2. Air inlet and outlet on the back, the air volume can be adjusted.
3. Adopt silicone rubber sealing strip and double glass door observation window, easy and clear observation.
4. Microcomputer controller, precise and reliable temperature control.
5. The inner box is designed with a circular arc structure, which is easy to clean.
Technical Parameters:
Model | BOV-D35 | BOV-D53 | BOV-D87 | BOV-D149 | BOV-D248 |
Capacity | 35L | 53L | 87L | 149L | 248L |
Temp. Range | Incubator: RT+5~80°C; Oven: 80~220°C | Incubator: RT+5~80°C; Oven: 80~200°C | |||
Temp. Uniformity | ±3%(@100 °C) | Incubator: ≤±1°C; Oven: ≤±2.5% | |||
Temp. Fluctuation | Incubator: ±0.5°C; Oven: ±1°C | ±0.5°C | |||
Temp. Precision | 0.1℃ | ||||
Circulation Mode | Micro-air circulation | ||||
Timing Range | 0~5999min | 0~9999min | |||
Display | LCD | LED | |||
Alarm | Over temperature alarm, temperature probe damage alarm | ||||
Material | External cold-rolled steel with painting; internal stainless steel | ||||
Power Supply | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | ||||
Consumption | 850W | 700W | 1200W | 1500W | 2000W |
Shelves | 2pcs | ||||
Optional Accessories | USB/Printer | / | |||
Internal Size(W*D*H) | 340*325*320mm | 357*356*419mm | 420*416*499mm | 498*500*600mm | 598*582*713mm |
External Size(W*D*H) | 620*490*490mm | 540*615*750mm | 604*674*830mm | 680*771*935mm | 782*855*1045mm |
Package Size(W*D*H) | 780*650*580mm | 600*720*900mm | 670*740*990mm | 740*840*1080mm | 860*940*1210mm |
Net Weight | 27kg | 48kg | 60kg | 78kg | 99kg |
Gross Weight | 30kg | 56kg | 71kg | 92kg | 116kg |
